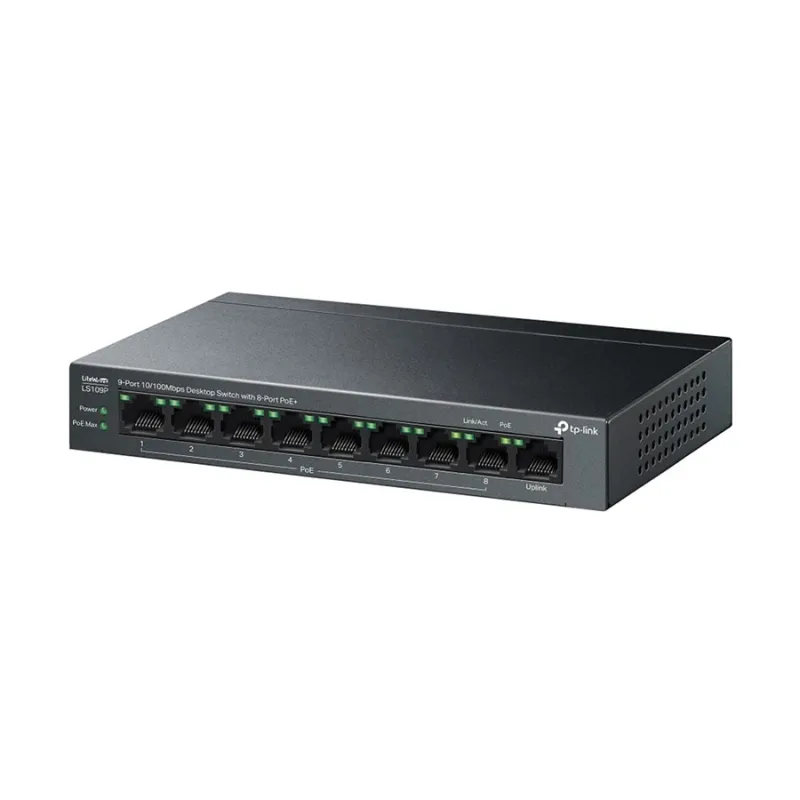

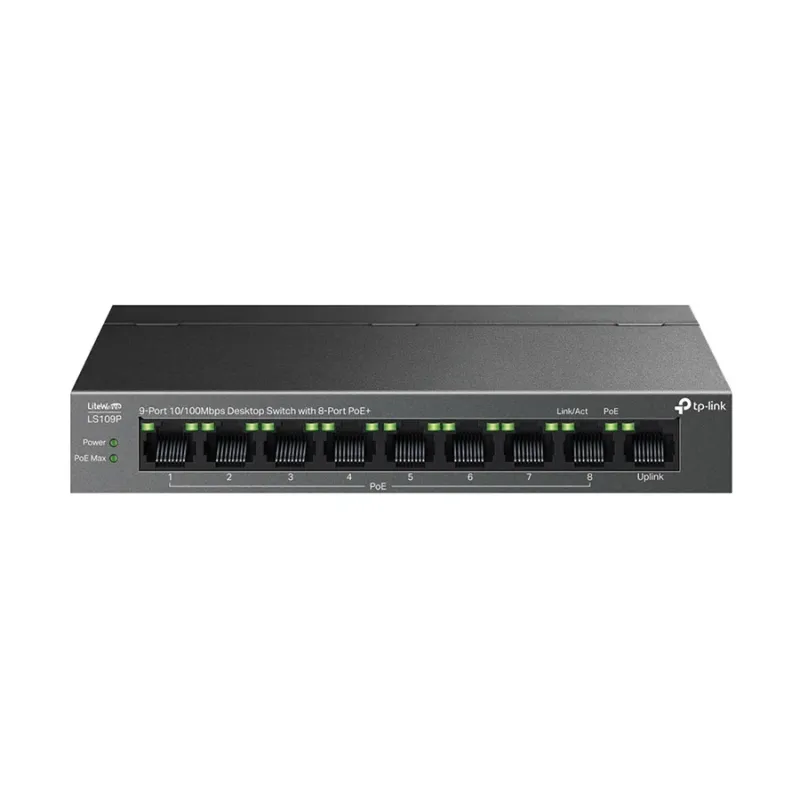

TP-Link LS109P 9-Port Desktop Switch
Key Features
- Type - Network Switch
- Number of Total Port - 9 Port
- PoE - Yes
- Manageability - Unmentioned
- Network Standards - 802.3 af/at compliant
- Data Transfer Rate - 10/100 Mbps
- Form Factor - Desktop/Wall Mounting
Specification
| General | |
| Brand | TP-Link |
| Model | LS109P |
| Type | Network Switch |
| Key Features | |
| Indicator | Power, Link/Act, PoE Status, PoE MAX |
| Interface | 8 x 10/100Mbps PoE+ & 1 x 10/100Mbps Ethernet Uplink |
| Network & Connectivity | |
| Data Rate | 10/100 Mbps |
| Network Standard | 802.3 af/at compliant |
| Ports & Connector | |
| PoE+ Port | 8 |
| Total Port | 9 Port |
| Power | |
| Power Supply | External Power Adapter (Output: 53.5VDC / 1.31A) |
| Power Consumption | 3.67 W (220 V/50 Hz no PD connected), 73.24 W (220 V/50 Hz with 63 W PD connected) |
| Physical Specification | |
| Color | Gray |
| Connector Type | 9 x 10/100 Mbps RJ45 Ports |
| Form Factor | Desktop/Wall Mounting |
| Dimension | 171 x 98 x 27mm |
| Technical Specification | |
| Manageability | Unmentioned |
| Switching Capacity | 1.8 Gbps |
| Transmission Method | Store and Forward |
| What's in the Box | |
| Packet Contents | LS109P, Power Adapter, Installation Guide, Rubber Feet |
| Warranty Information | |
| Warranty | 1 Year (Without Adapter) |
Description
The TP-Link LS109P 9-Port 10/100Mbps PoE Switch includes 8-Port PoE+, which has a 63W PoE budget and can power up to eight devices such as IP cameras, access points, and IP phones via its 802.3af/at-compliant PoE+ ports, each of which can output up to 30W. Extend Mode increases PoE transmission distances to 250 meters, making it ideal for deploying devices in large areas. Its PoE Auto Recovery feature ensures consistent operation by rebooting unresponsive PoE-powered devices. For added security, the TP-Link LS109P 9-Port 10/100Mbps PoE Switch's Isolation Mode feature divides client traffic with a single click, reducing the risk of data snooping and broadcast storms. The LS109P's plug-and-play functionality allows for easy installation and eliminates the need for configuration. Its fanless design ensures quiet operation, making it ideal for noise-sensitive environments like offices or homes. It has a durable metal casing and supports both desktop and wall-mounted configurations, providing installation flexibility. The TP-Link LS109P 9-Port 10/100Mbps PoE Switch has nine 10/100 Mbps RJ45 ports, eight of which are PoE+, and supports AUTO Negotiation and MDI/MDIX for seamless connectivity. Designed for performance, the switch has a switching capacity of 1.8 Gbps and a packet forwarding rate of 1.3392 Mpps. Its 2K MAC address table enables efficient network management, while the 1.5 KB jumbo frame improves data transfer performance. Advanced features include IEEE 802.3x flow control, environmentally friendly technology, and compatibility with IEEE 802.3af/at devices. The TP-Link LS109P 9-Port 10/100Mbps PoE Switch with 8-Port PoE+ is powered by an external adapter that delivers 53.5VDC/1.31A.
