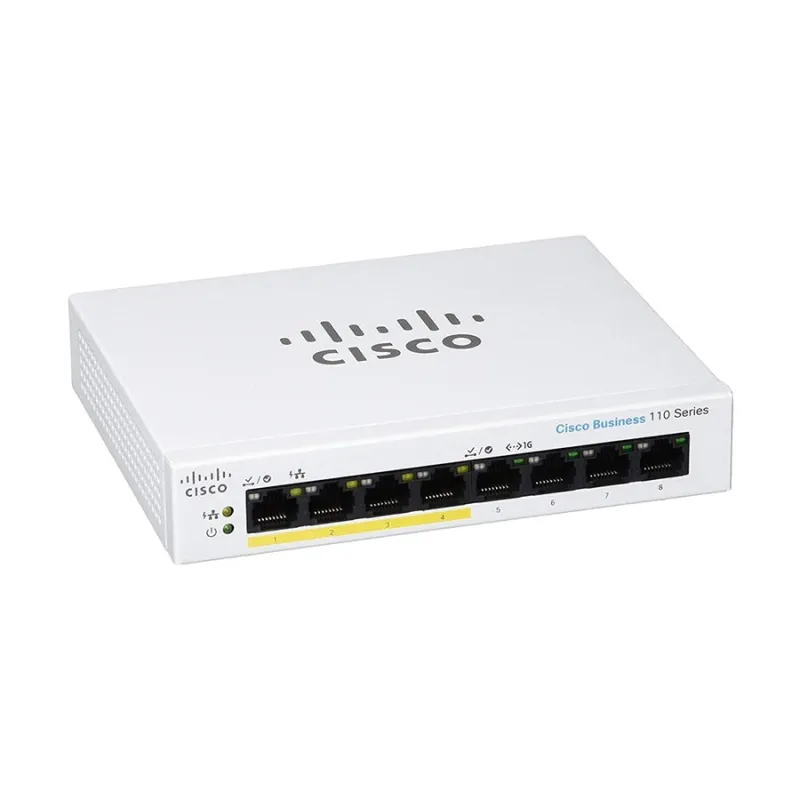

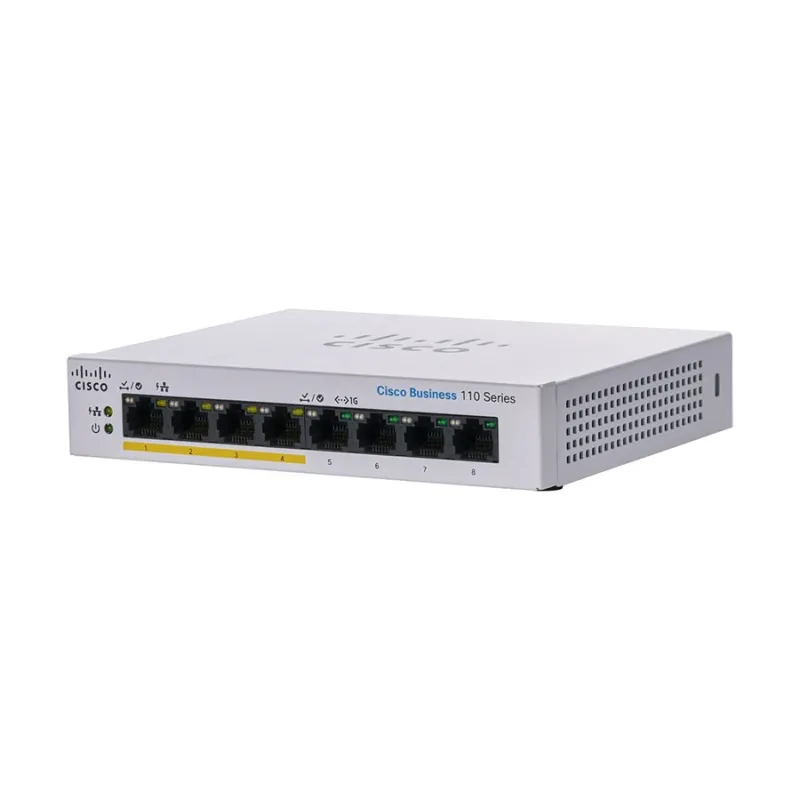

Cisco CBS110-8PP-D 8 Port Unmanaged Switch
Key Features
- Type - Network Switch
- Number of Total Port - 8 Port
- PoE - Yes
- Manageability - Unmanaged
- Data Transfer Rate - 10/100/1000 Mbps
- Form Factor - Desktop
Specification
| General | |
| Brand | Cisco |
| Model | CBS110-8PP-D |
| Type | Network Switch |
| Key Features | |
| Indicator | No |
| Form Factor | Desktop |
| Interface | 4 x RJ45 Gigabit Ethernet PoE, 4x RJ45 Gigabit Ethernet |
| MTBF | 400,000 hours |
| Network & Connectivity | |
| Data Rate | 10/100/1000 Mbps |
| Network Standard | IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet |
| Ports & Connector | |
| Gigabit Port | 8 |
| PoE Port | 8 |
| PoE+ Port | No |
| SFP Port | No |
| Total Port | 8 Port |
| Power | |
| Power Supply | 100 to 240 VAC, 50/60Hz |
| Power Consumption | 37.46W (Max) |
| Physical Specification | |
| Color | White |
| Connector Type | RJ45 Ethernet |
| Fan | Fanless |
| Weight | 0.53 kg |
| Dimension | 160 x 129 x 30mm |
| Technical Specification | |
| Manageability | Unmanaged |
| PoE | Yes |
| Switching Capacity | 16 Gbps |
| Transmission Method | Store-and-forward |
| Other | PoE Power Budget: 32W, Supported Protocols: (Auto-MDIX/MDI Head-of-Line (HOL) Blocking), Queuing: (Weighted Round Robin (WRR)), Jumbo Frames Support: 9216 Bytes, MAC Address Table Size: 8K, Forwarding Rate: 11.9 Mbps, Packet Buffer: 2Mb, Power Draw: 4.81W (Active), Power Supply Type: External, Certifications: UL, CSA, CE, FCC, Operating Conditions: (0 to 50 degree C at 10 to 90% Humidity), Storage Conditions: (-20 to 70 degree C at 5 to 90% Humidity), Cooling System: Passive. |
| Specialty | Kensington Lock Support, 4 x PoE-Compliant Ports, 32W PoE Power Budget, Desktop Form Factor (Not Rack Mountable). |
| What's in the Box | |
| Packet Contents | Cisco CBS110-8PP-D 8-Port Unmanaged PoE-Compliant Network Switch, Power Adapte. |
| Warranty Information | |
| Warranty | 1 Year (Without Adapter) |
Description
The Cisco CBS110-8PP-D is an 8-port unmanaged PoE-compliant Gigabit desktop switch designed for small businesses that need a simple, plug-and-play solution with integrated power delivery for network devices. As part of the Cisco Business 110 Series, it provides 8 x 10/100/1000 Mbps ports, including 4 PoE-enabled ports with a total PoE power budget of 32W, ideal for powering IP phones, wireless access points, or security cameras without separate adapters.
With a switching capacity of 16 Gbps and store-and-forward transmission, the CBS110-8PP-D ensures fast, reliable data flow for business-critical operations. It supports IEEE 802.3 standards for Ethernet, Fast Ethernet, and Gigabit Ethernet, along with 802.3af PoE, Energy Efficient Ethernet, and advanced traffic handling features like 802.1p priority queuing and Weighted Round Robin (WRR) for optimized performance.
Built in a compact fanless design (160 x 129 x 30 mm, 0.53 kg), it operates silently, making it perfect for quiet office environments. It offers Kensington lock support for physical security, jumbo frame support up to 9216 bytes, and an 8K MAC address table for enhanced network management flexibility.
The switch is powered by an external adapter (100–240 VAC, 50/60Hz) with a maximum power draw of 37.46W and comes with a 1-year warranty (excluding adapter). It’s an energy-efficient, durable, and user-friendly networking solution that combines Cisco’s trusted quality with the convenience of PoE for simplified installations.
