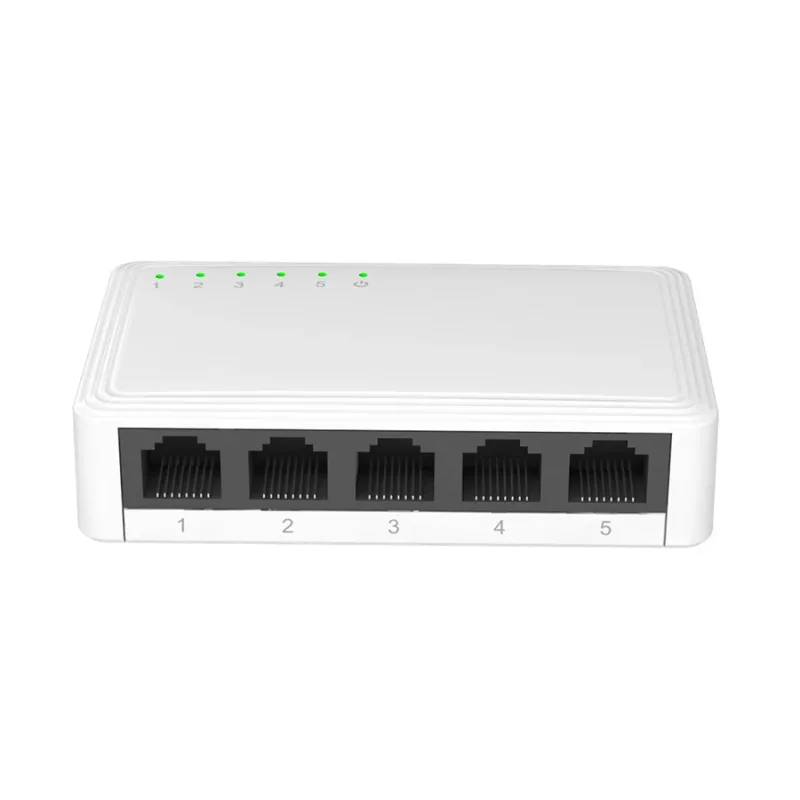

C-Data CS2050G 5-Port Gigabit Unmanaged Desktop Switch
Key Features
- Type - Network Switch
- Number of Total Port - 5 Port
- PoE - No
- Manageability - Unmanaged
- Network Standards - IEEE802.3, IEEE802.3u
- Data Transfer Rate - 10/100/1000 Mbps
- Form Factor - Desktop
Specification
| General | |
| Brand | C-data |
| Model | CS2050G |
| Key Features | |
| Indicator | Yes |
| Network & Connectivity | |
| Data Rate | 10/100/1000 Mbps |
| Network Standard | IEEE802.3, IEEE802.3u |
| Ports & Connector | |
| Gigabit Port | 5 Port |
| SFP Port | No |
| Total Port | 5 |
| Power | |
| Power Supply | 5VDC/1A |
| Physical Specification | |
| Color | White |
| Connector Type | 5 x 10/100/1000Mbps RJ45 ports |
| Fan | Fanless |
| Form Factor | Desktop |
| Dimension | 92 x 68 x 25mm |
| Technical Specification | |
| Manageability | Unmanaged |
| PoE | No |
| Transmission Method | Store and Forward |
| Other | Advanced Functions Green Technology, saving power up to70% 802.3X Flow Control, Back Pressure Auto-Uplink Every Port, Environment Operating Temperature: 0 Degree C to 40 Degree C, Storage Temperature: -40 Degree C to 70 Degree C, Operating Humidity: 10% - 90% non-condensing; Storage Humidity: 5% - 90% non-condensing. |
| Specialty | Supports IEEE802.3x flow control for Full Duplex mode and backpressure for half-duplex mode; Supports MAC address auto-learning and auto-aging; LED indicators for monitoring power, link, activity |
| What's in the Box | |
| Packet Contents | 1 x C-Data CS2050G, 1 x User manual |
| Warranty Information | |
| Warranty | 2 year |
Description
The C-Data CS2050G is a 5-port unmanaged Gigabit network switch designed for small offices, home networks, and SOHO environments that require fast, reliable, and energy-efficient wired connectivity. Equipped with five 10/100/1000Mbps RJ45 ports, it delivers high-speed data transfer and supports store-and-forward transmission for stable and accurate packet delivery.
This fanless desktop switch operates silently and features IEEE802.3x flow control for full-duplex mode, as well as backpressure for half-duplex mode, ensuring smooth network performance. It also supports MAC address auto-learning and auto-aging for efficient traffic management.
Built with Green Technology, it can save up to 70% power consumption without compromising performance. LED indicators allow easy monitoring of power, link, and activity. The switch is compact at 92 x 68 x 25mm, powered by a 5VDC/1A adapter, and is built to operate in various environments with wide temperature and humidity tolerances.
Packaged with a user manual and backed by a 2-year warranty, the C-Data CS2050G is a cost-effective, plug-and-play solution for expanding network capacity.
