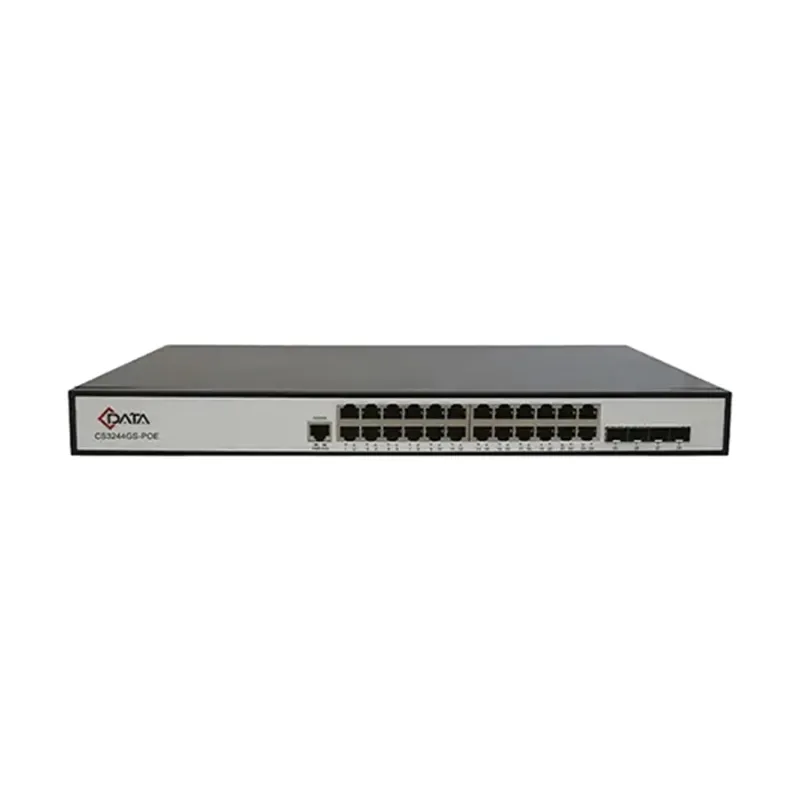

C-Data CS3244GS-POE 29-Port L2 Managed POE Switch
Key Features
- Type - Network Switch
- Number of Total Port - 29 Port
- PoE - Yes
- Manageability - Managed
- Network Standards - IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab IEEE 802.3ae,IEEE 802.3az
- Data Transfer Rate - 10/100/1000 Mbps
- Form Factor - Rackmount
Specification
| General | |
| Brand | C-Data |
| Model | CS3244GS-POE |
| Type | Network Switch |
| Key Features | |
| Indicator | power,ports,sys |
| Interface | 24 x 10/100/1000M RJ45 adaptive ports & 4 x 100/1000M SFP ports |
| Network & Connectivity | |
| Data Rate | 10/100/1000 Mbps |
| Network Standard | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab IEEE 802.3ae,IEEE 802.3az |
| Ports & Connector | |
| Gigabit Port | 28 |
| SFP Port | 4 |
| Total Port | 29 Port |
| Power | |
| Power Supply | AC90-264V |
| Power Consumption | 40W |
| Physical Specification | |
| Color | Black |
| Fan | Fanless |
| Form Factor | Rackmount |
| Weight | 4.5kg |
| Dimension | 440 x 208 x 44mm |
| Technical Specification | |
| Manageability | Managed |
| PoE | Yes |
| Switching Capacity | 56Gbps |
| Other | Work temperature:-15 - to 50 degree C Storage temperature:-40 - 70degree C Work humidity:10% to 90% Storage humidity: 10% to 90%. Certification: FCC; CE;ROHS. PoE: MAX 370W,port MAX 30W. Packets switching capability: 41.7Mpps. FLASH size: 16MB. Console port: 1 pcs. MAC table size: 8K. DDR3 size: 128MB |
| Specialty | Support IEEE802.3AF/AT,MAX power 280W. Support 8K MAC table size. Support abundant L2 features such as VLAN,LLDP,QoS,ACL. Support CLI/SNMP/WEB UI Management.System : IPV4/IPV6 dual stack Users management SNTP(Simple Network Time Protocol) Syslog SNMP V1/V2/V3 RMON(1,2,3,9) |
| What's in the Box | |
| Packet Contents | 1 x C-Data CS3244GS-POE, 1 x User manual |
| Warranty Information | |
| Warranty | 2 year |
Description
The C-Data CS3244GS-POE is a 29-port managed Gigabit network switch with PoE support, designed to deliver high performance, reliable connectivity, and power over Ethernet for modern enterprise and surveillance networks. It comes equipped with 24 adaptive 10/100/1000M RJ45 PoE ports and 4 100/1000M SFP uplink ports, making it ideal for integrating IP cameras, wireless access points, and VoIP phones without requiring separate power lines.
With IEEE 802.3af/at compliance, it offers a maximum PoE power budget of 280W (up to 30W per port), ensuring stable and efficient power delivery to connected devices. The switch boasts a switching capacity of 56Gbps and a forwarding rate of 41.7Mpps, ensuring smooth, non-blocking data transmission. It supports a wide range of Layer 2 features including VLAN, LLDP, QoS, and ACL for effective network segmentation, traffic prioritization, and access control.
For network management, the CS3244GS-POE offers versatile options including CLI, SNMP (V1/V2/V3), and Web UI, along with advanced features like IPv4/IPv6 dual stack, SNTP for time synchronization, Syslog for event logging, and RMON (1, 2, 3, 9) for remote monitoring. Built with 128MB DDR3 memory and 16MB flash, it supports an 8K MAC address table for scalable network deployments.
Its fanless rackmount design ensures silent operation and high reliability, with dimensions of 440 x 208 x 44mm and a weight of 4.5kg. Certified by FCC, CE, and RoHS, it operates in temperatures from -15°C to 50°C and can be stored from -40°C to 70°C. Backed by a 2-year warranty, the C-Data CS3244GS-POE is a powerful and efficient solution for businesses seeking a PoE-enabled managed switch with robust features and silent operation.
