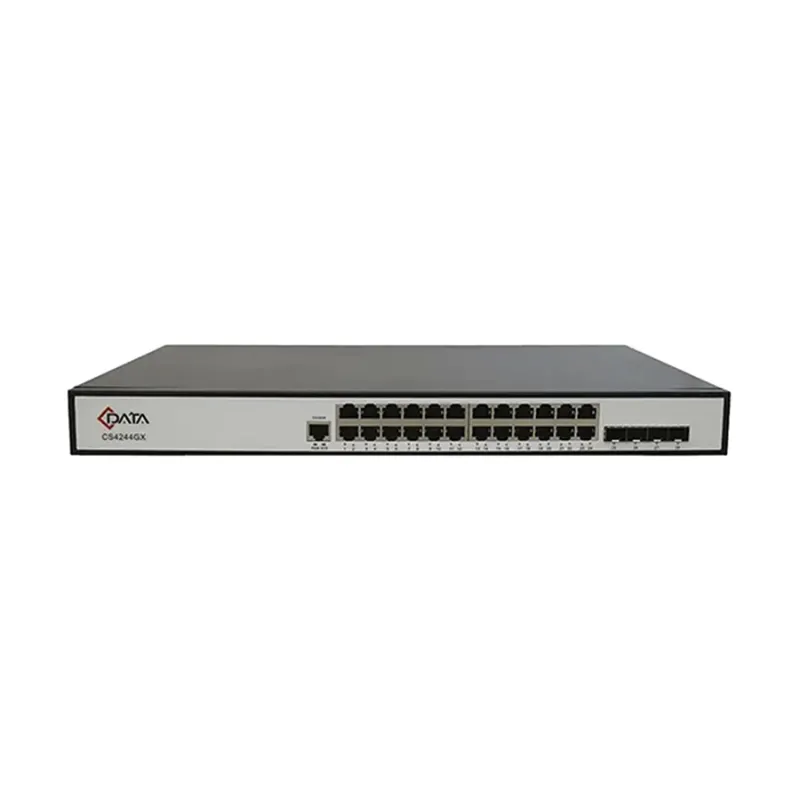

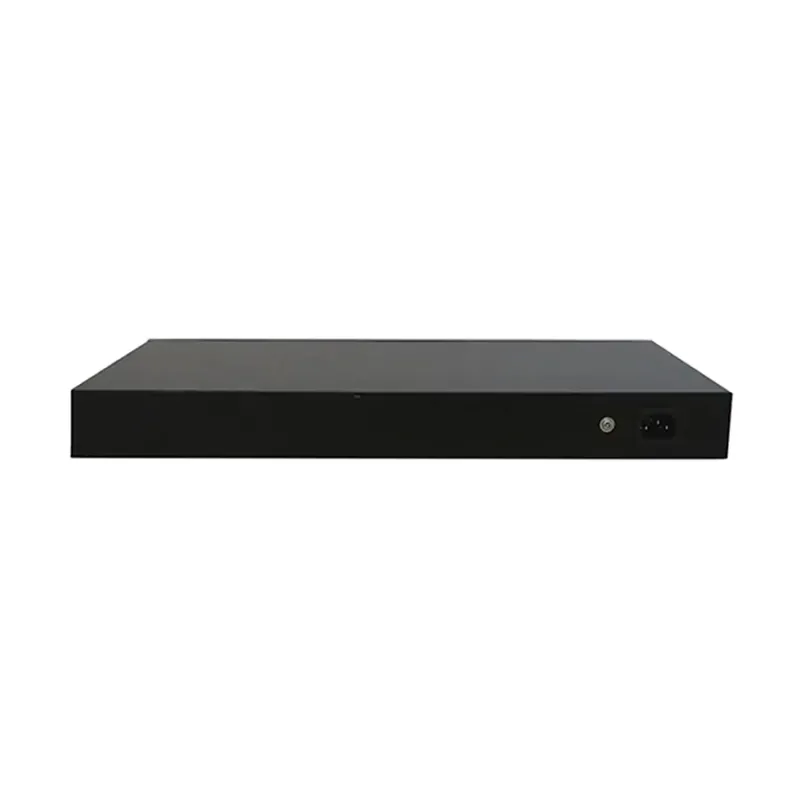

C-Data CS4244GX 29-Port L2+ Managed Switch

C-Data CS4244GX 29-Port L2+ Managed Switch

The C-Data CS4244GX is a high-performance 29-port managed network switch engineered for enterprise-grade speed, security, and scalability. It features 24 adaptive 10/100/1000M RJ45 ports alongside 4 high-speed 10-Gigabit SFP+ uplink ports, delivering exceptional connectivity for demanding network environments. With a switching capacity of 128Gbps and a forwarding rate of 95Mpps, it ensures fast, non-blocking data transmission even under heavy loads.
This switch supports a wide range of Layer 2 features including VLAN, QinQ, LLDP, QoS, and ACL, enabling flexible network segmentation and traffic optimization. Advanced security functions such as Anti-ARP spoofing, Anti-ARP flooding, IP+MAC+Port+VLAN binding via IP Source Guard, port isolation, and IEEE 802.1x with AAA/Radius authentication help safeguard your network against unauthorized access and malicious activity.
Designed for reliability, the fanless rackmount build ensures silent operation while maintaining optimal heat dissipation. Measuring 290 x 220 x 43.6mm and weighing 4.5kg, it fits neatly into standard rack setups. The device is built with 512MB memory, 16MB flash, 16K jumbo frame support, and a console port for direct management. Multiple management options—CLI, SNMP, and Web UI—make configuration and monitoring straightforward.
Certified by FCC, CE, and RoHS, and with an operating range of 0°C to 50°C (storage: -40°C to 70°C), the CS4244GX offers long-term durability in diverse conditions. It runs on an AC90–264V power supply with a maximum consumption of 40W and comes with a 2-year warranty, making it an ideal choice for organizations that demand ultra-fast uplinks, robust security, and enterprise-class switching performance.
