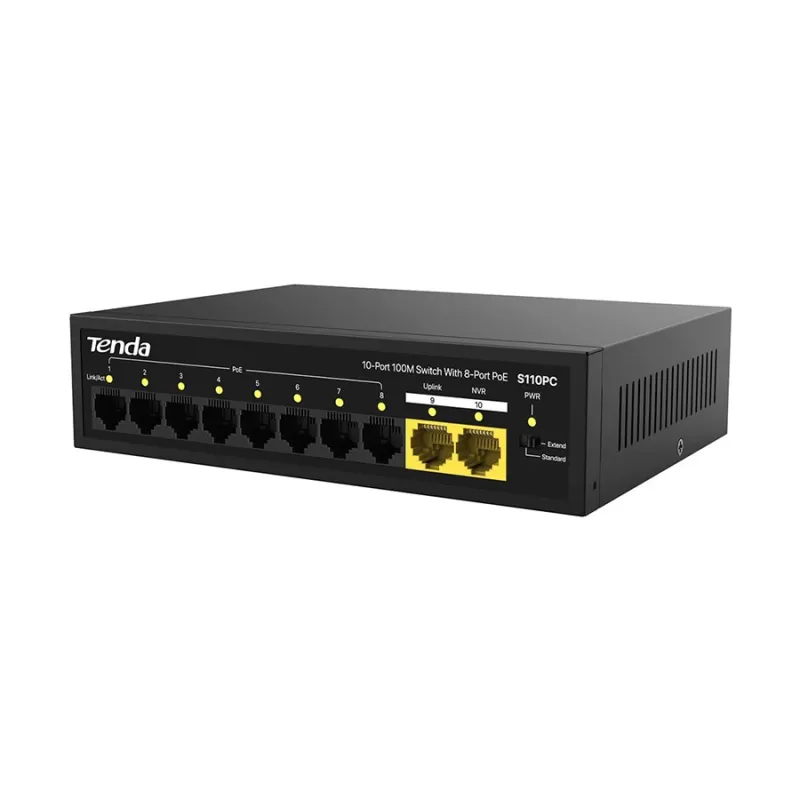

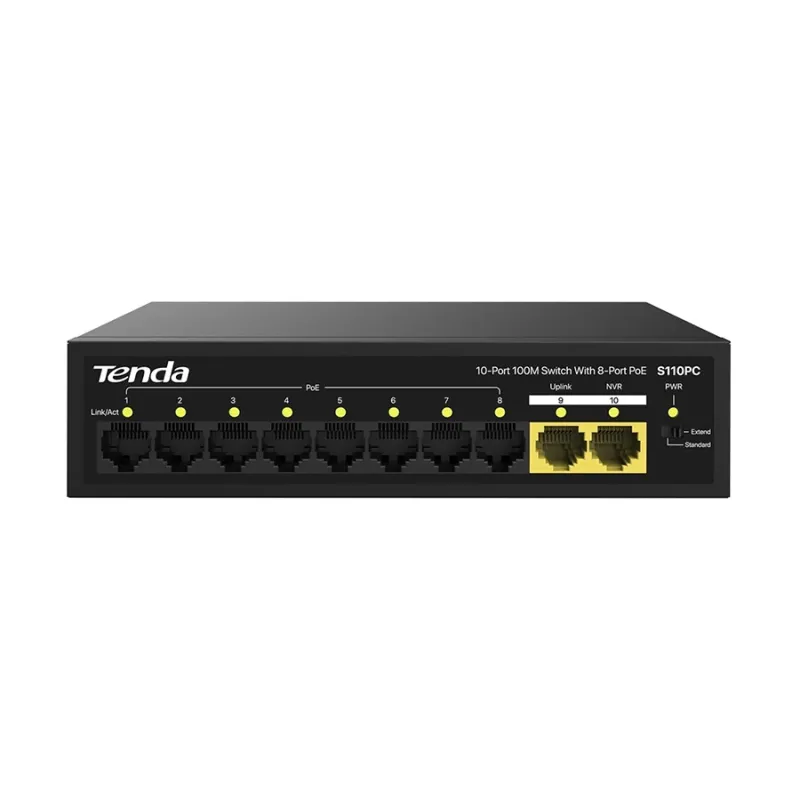

Tenda S110PC 10 Port Unmanaged Desktop Switch
Key Features
- Type - Network Switch
- Number of Total Port - 10 Port
- PoE - Yes
- Manageability - Unmanaged
- Network Standards - IEEE 802.3, IEEE 802.3u, IEEE 802.3x
- Data Transfer Rate - 10/100 Mbps
- Form Factor - Desktop/Wall Mounting
Specification
| General | |
| Brand | Tenda |
| Model | S110PC |
| Type | Network Switch |
| Key Features | |
| Interface | 8 x 10/100Mbps PoE & 2 x 10/100Mbps Ethernet |
| Network & Connectivity | |
| Data Rate | 10/100 Mbps |
| Network Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Ports & Connector | |
| PoE Port | 8 |
| Total Port | 10 Port |
| Power | |
| Power Supply | AC 220V, 50/60Hz 1A |
| Power Consumption | In full configuration: <80W PoE Power Supply: <75W |
| Physical Specification | |
| Color | Black |
| Connector Type | 10 x 10/100Mbps RJ45 Port |
| Form Factor | Desktop/Wall Mounting |
| Dimension | 175 x 127 x 43mm |
| Technical Specification | |
| Manageability | Unmanaged |
| PoE | Yes |
| Transmission Method | Store-forward |
| Specialty | One-Key VLAN & Network extension, 4KV lightning protection, Dual port uplink, QoS priority |
| What's in the Box | |
| Packet Contents | 1 x Tenda S110PC, 1 x User manual |
| Warranty Information | |
| Warranty | 1 year |
Description
The Tenda S110PC is a 10-port unmanaged Fast Ethernet switch designed for small offices, surveillance networks, and other PoE-powered setups. It features 8 × 10/100 Mbps PoE ports compliant with IEEE 802.3af/at standards and 2 × 10/100 Mbps uplink Ethernet ports, allowing simultaneous data transmission and power supply for IP cameras, VoIP phones, or wireless access points without extra adapters.
With a total switching capacity of 2 Gbps and a throughput of 1.49 Mpps, the S110PC uses store-and-forward transmission for stable performance. It supports One-Key VLAN mode for quick network isolation, network extension features for longer distance connections, and QoS priority to ensure smooth data flow for critical devices. The built-in 4KV lightning protection adds extra durability in outdoor or unstable power environments.

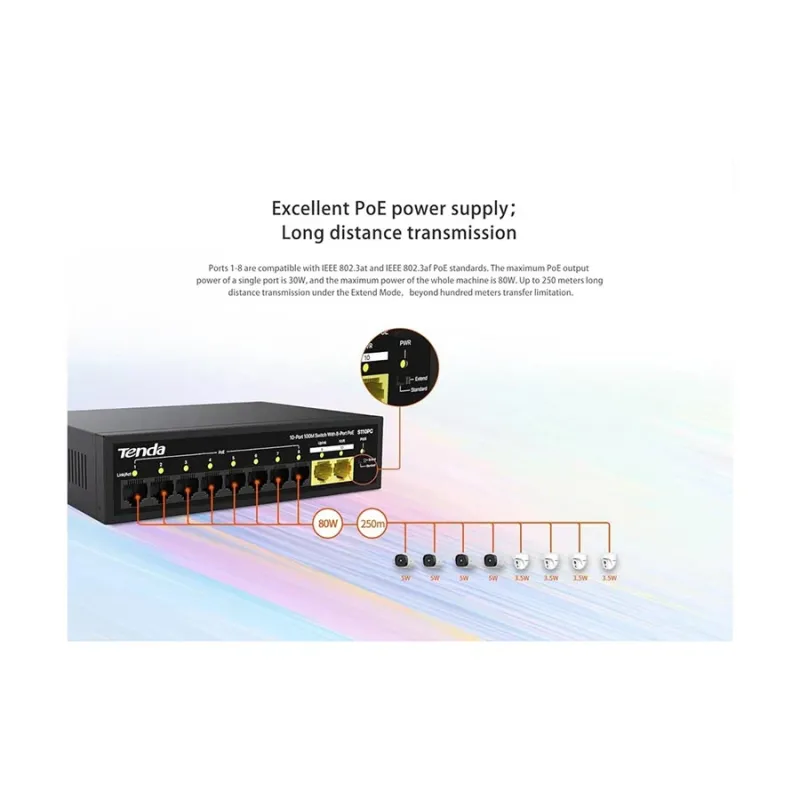

This fanless switch operates silently and is housed in a compact black casing (175 × 127 × 43 mm) suitable for desktop placement or wall mounting. LED indicators for each port’s link/activity and a dedicated power LED make monitoring easy. It can deliver up to 75W total PoE power with less than 80W full power consumption, powered by AC 220V 50/60Hz 1A input.
Built to handle operating temperatures from 0°C to 40°C and up to 90% humidity (non-condensing), the Tenda S110PC is a reliable, plug-and-play solution for powering and connecting multiple PoE devices, making it an excellent choice for IP surveillance setups and small-scale networks.
