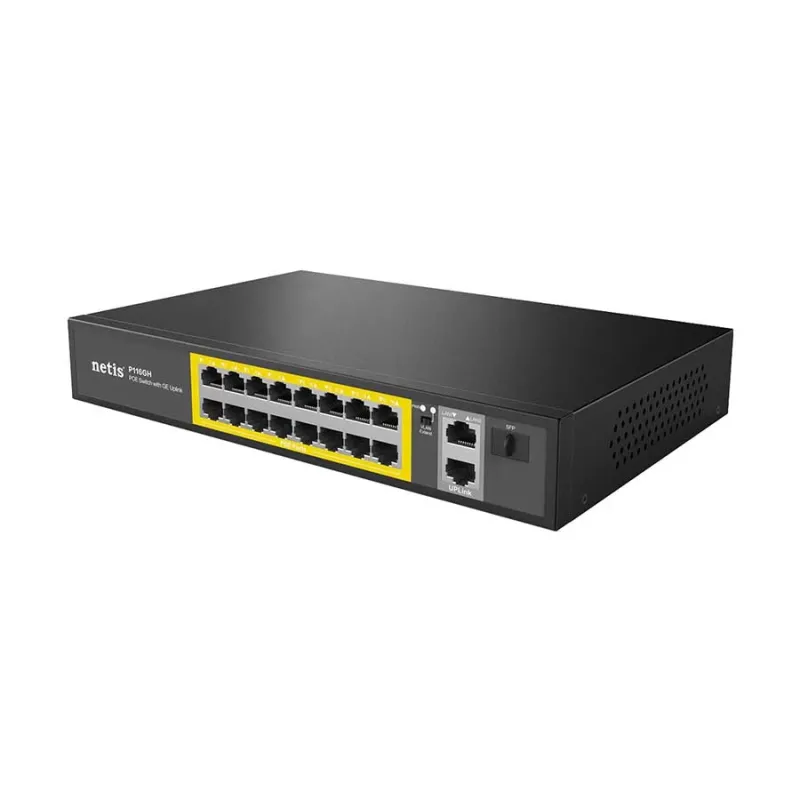

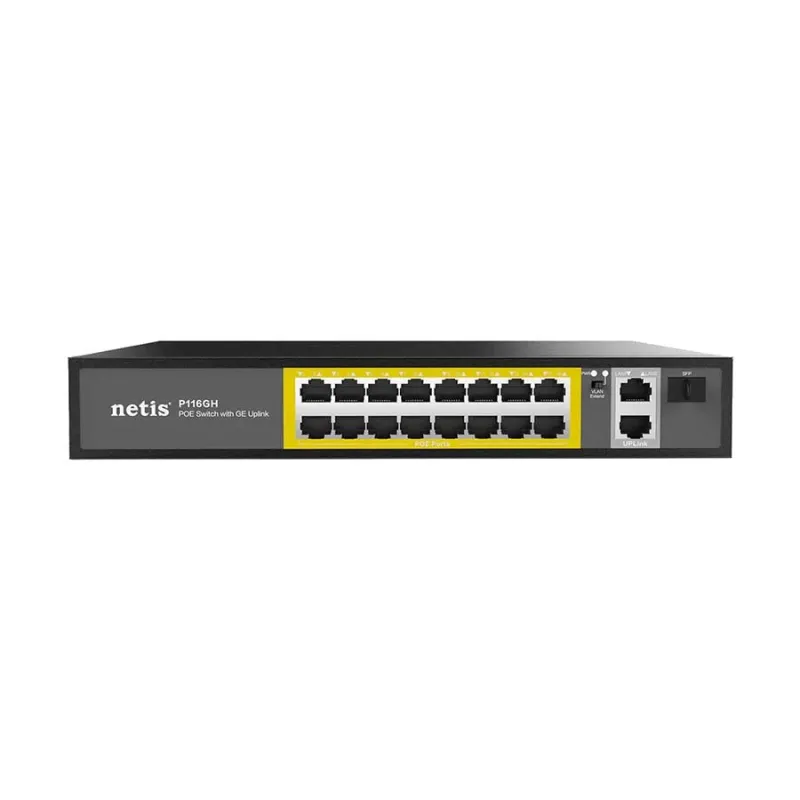

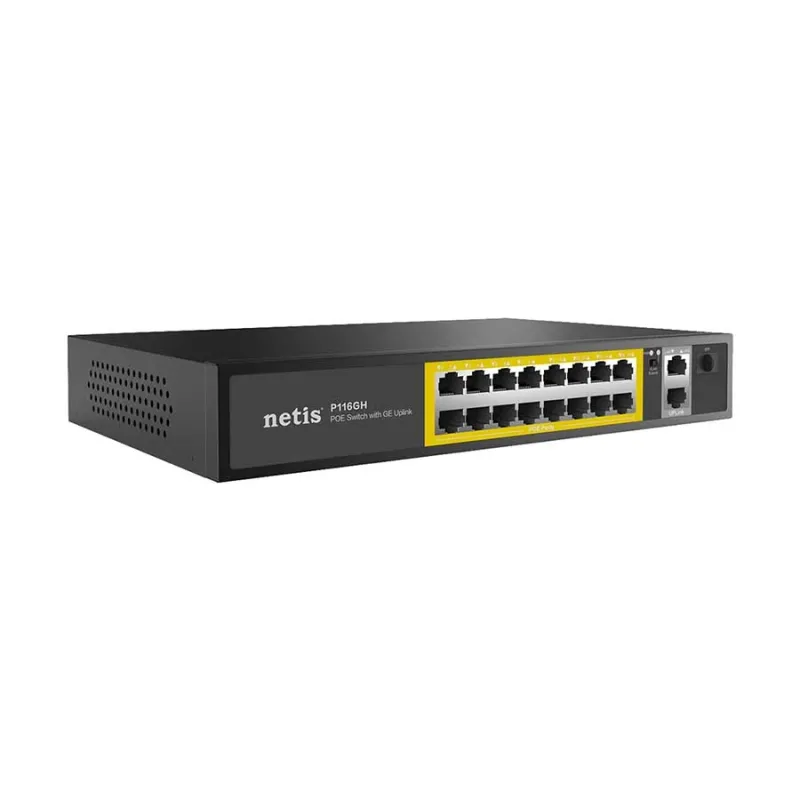

Netis P116GH 16 FE POE+2GE Uplink POE Switch
Key Features
- Type - Network Switch
- Number of Total Port - 18 Port
- PoE - Yes
- Manageability - Unmanaged
- Data Transfer Rate - 10/100/1000 Mbps
- Form Factor - Desktop
Specification
| General | |
| Brand | Netis |
| Model | P116GH |
| Type | Network Switch |
| Key Features | |
| Interface | 16 x 10/100Mbps POE ports Data/Power), 2 x 10/100/1000M uplink RJ45 ports (Data), 1 x 10/100/1000M uplink SFP slot port (Data) |
| Network & Connectivity | |
| Data Rate | 10/100/1000 Mbps |
| Network Standard | IEEE 802.3 10BASE-T Ethernet, IEEE 802.3i 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3af/at, Power over Ethernet, IEEE 802.3x Flow Control |
| Ports & Connector | |
| Gigabit Port | 2 |
| PoE Port | 16 |
| Total Port | 18 Port |
| Power | |
| Power Supply | Pin:12+/36- AC 110~240V 50/60HZ |
| Physical Specification | |
| Color | Black |
| Form Factor | Desktop |
| Dimension | 280 x 180 x 43mm |
| Technical Specification | |
| Manageability | Unmanaged |
| Switching Capacity | 9.2GB |
| What's in the Box | |
| Packet Contents | 1 x P116GH, 1 x User manual |
| Warranty Information | |
| Warranty | 1 Year (Without Adapter) |
Description
The Netis P116GH is an 18-port unmanaged PoE switch designed for reliable and efficient power and data transmission, making it an excellent choice for HD security networks and large-scale PoE deployments. It features 16 Fast Ethernet PoE-enabled RJ45 ports, two Gigabit uplink ports, and one Gigabit SFP slot, providing versatile connectivity for IP cameras, wireless access points, and other PoE-powered devices. Complying with IEEE 802.3af/at standards, each PoE port can deliver up to 30W, with a total power budget of 200W.
With a 9.2Gbps switching capacity, store-and-forward transmission, and 8K MAC address table support, the P116GH ensures stable performance even under heavy network loads. It also supports jumbo frames up to 2048 bytes and IEEE 802.3x flow control for smooth data handling. The two Gigabit uplink ports offer high-speed backhaul for NVRs or routers, ensuring seamless data transfer without bottlenecks.
Built with a fanless design for silent operation, the P116GH comes in a sturdy black desktop form factor and includes built-in protections against over-current, over-voltage, and short-circuits, as well as soft-start and sequential boot-up for high-power devices. With plug-and-play simplicity and no configuration required, this switch delivers both performance and reliability, backed by a 1-year warranty (adapter not included).
