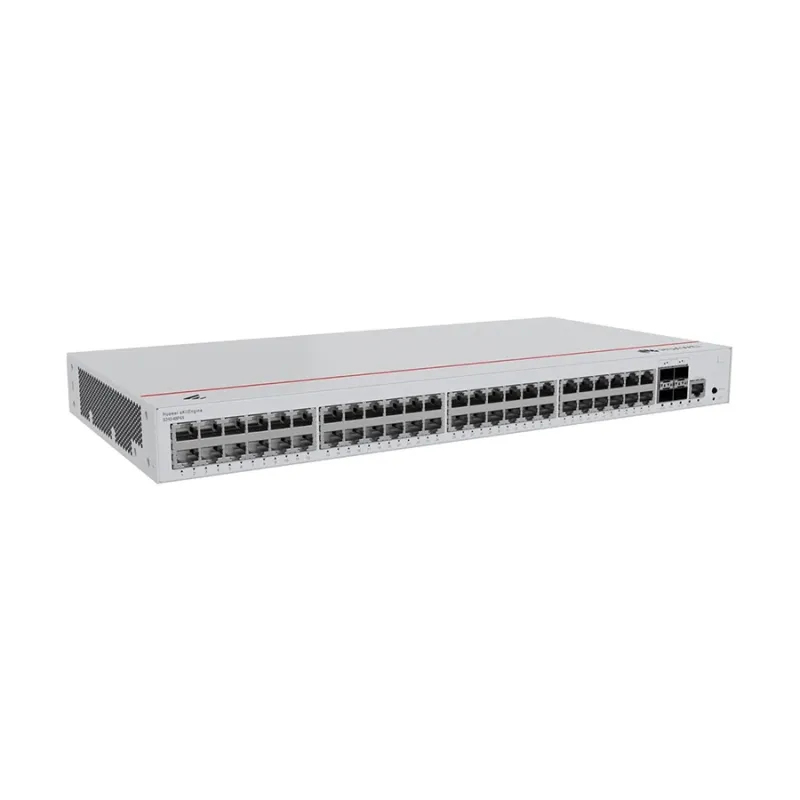

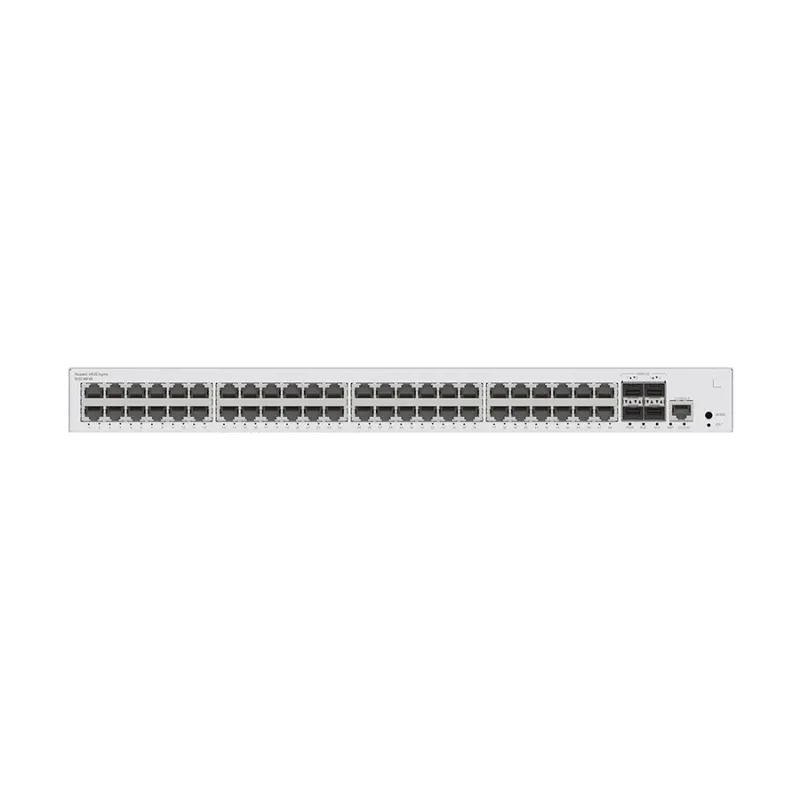

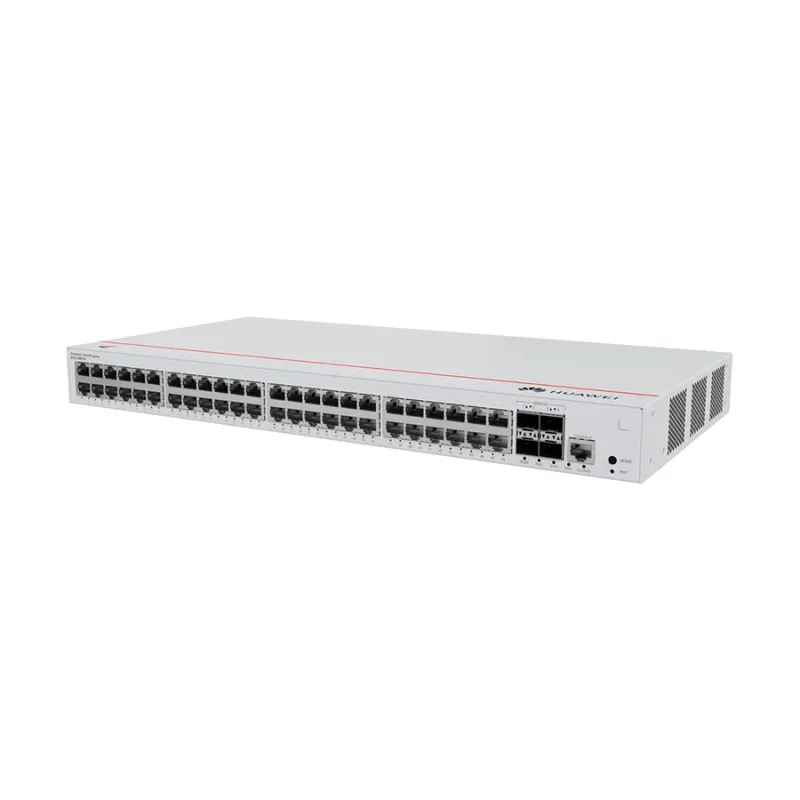

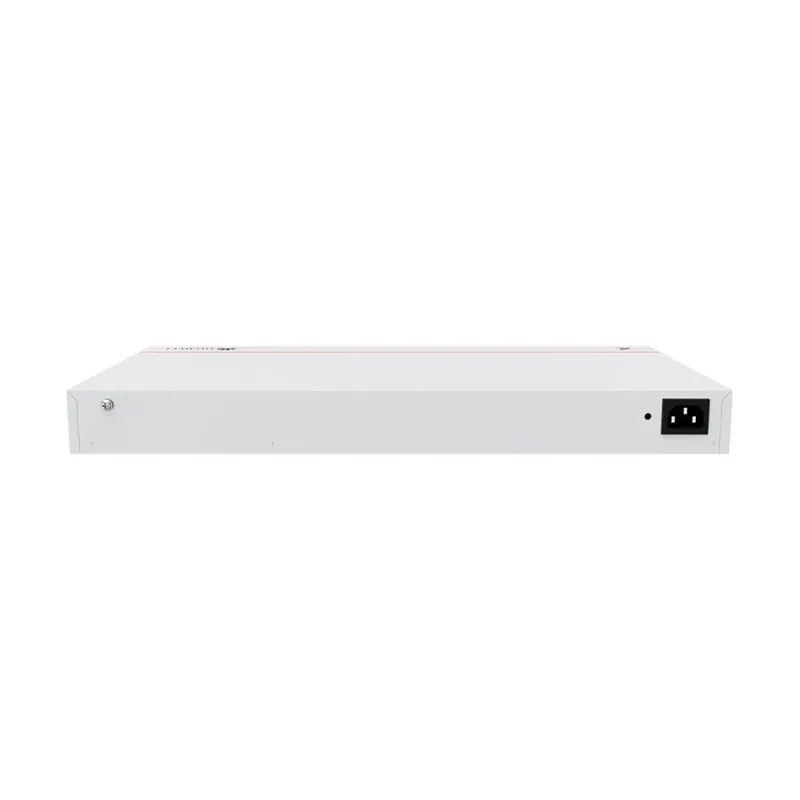

Huawei S310-48P4X 52 Port Managed eKit SMB Switch
Key Features
- Type - Network Switch
- Number of Total Port - 52 Port
- PoE - Yes
- Manageability - Managed
- Data Transfer Rate - 10/100/1000 Mbps
- Form Factor - 1U Rack-mountable
Specification
| General | |
| Brand | Huawei |
| Model | S310-48P4X |
| Type | Network Switch |
| Key Features | |
| Indicator | PWR, SYS (Fast blinking, Steady on, Slow blinking), MST (Steady on, Blinking), PoE (Steady on), CLOUD (Fast blinking, Slow blinking, Steady on) |
| Interface | 48 x 10/100/1000Mbps PoE+, 4 x 10GE SFP+ |
| MTBF | 421995.24 Hours |
| Network & Connectivity | |
| Data Rate | 10/100/1000 Mbps |
| Ports & Connector | |
| Gigabit Port | 52 |
| PoE+ Port | 48 |
| SFP+ Port | 4 |
| Total Port | 52 Port |
| Power | |
| Power Supply | 100 V AC to 240 V AC, 50/60 Hz, High-voltage DC input: 240 V DC |
| Power Consumption | 49.44 W (Typical), Without PoE: 64.7 W, Full PoE load: 462.80 W (PoE: 380 W) (Max.), 34.04 W (Static) |
| Physical Specification | |
| Color | White |
| Connector Type | 48 x 10/100/1000Mbps PoE+, 4 x 10GE SFP+ |
| Fan | Yes |
| Form Factor | 1U Rack-mountable |
| Material | Metal |
| Weight | 3.24 Kg |
| Dimension | 43.6 x 442 x 220mm |
| Technical Specification | |
| Manageability | Managed |
| Memory | 2GB |
| PoE | Yes |
| What's in the Box | |
| Packet Contents | Huawei S310-48P4X Switch, User Manual, Warranty Card |
| Warranty Information | |
| Warranty | 1 Year (Without Adapter) |
Description
The Huawei S310-48P4X is a powerful managed network switch designed for enterprise and data center environments that demand high-density connectivity with PoE+ capabilities. This switch offers 52 total ports, comprising 48 Gigabit Ethernet PoE+ ports and 4 10GE SFP+ uplink ports, providing ample bandwidth and flexibility for diverse network setups.
With support for full PoE+ power delivery, the S310-48P4X can supply up to 380W across its ports, efficiently powering IP devices like cameras, VoIP phones, and wireless access points directly through the Ethernet cables. This reduces the need for additional power infrastructure, simplifying deployment and reducing costs.
Constructed with a robust metal chassis and finished in white, the switch fits into standard 1U rack spaces with compact dimensions of 43.6 x 442 x 220 mm and a weight of 3.24 kg, making it ideal for rack-mount network environments.
The device features intelligent cooling with two built-in fans that adjust speed based on temperature, ensuring quiet operation at around 49.3 dB(A) noise levels while maintaining efficient heat dissipation, with a typical heat output of 168.69 BTU/hour.
Equipped with 2GB of memory and designed for a data transfer rate of 10/100/1000 Mbps, this switch provides stable, high-speed data communication with a high MTBF of approximately 422,000 hours for reliable long-term use.
Operating temperature ranges from -5°C to 50°C, with altitude tolerance up to 5000 meters, making it suitable for diverse environmental conditions. Surge protection on service and power ports enhances device durability and network stability.
Status LEDs for power, system, MST, PoE, and cloud connectivity allow easy monitoring and management. The switch supports multiple power inputs, including AC (100-240V, 50/60 Hz) and high-voltage DC (240V), enhancing flexibility and redundancy in power options.
Included in the package are the Huawei S310-48P4X switch, user manual, and warranty card, backed by a 1-year warranty (excluding adapter). This switch is an ideal solution for enterprises requiring a high-performance, scalable, and energy-efficient PoE+ managed switch for modern network infrastructures.
