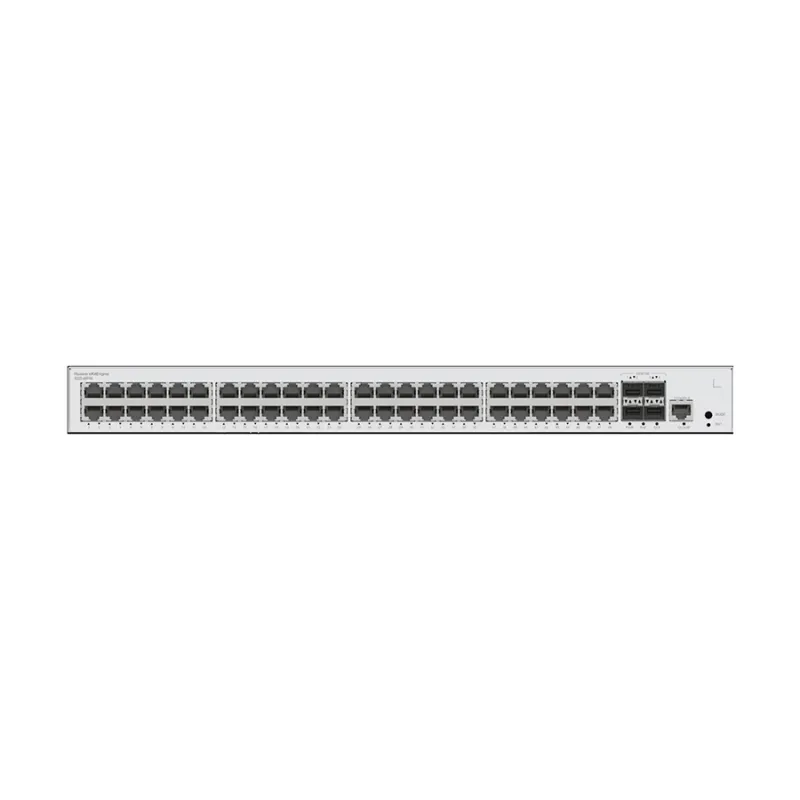

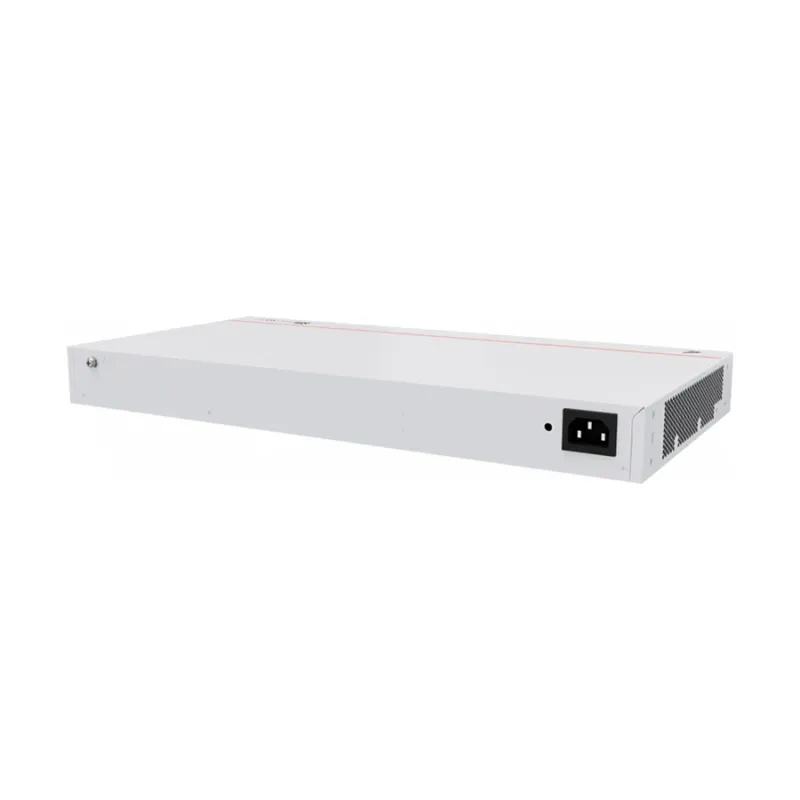

Huawei S220-48P4X 52 Port Managed eKit SMB Switch

Huawei S220-48P4X 52 Port Managed eKit SMB Switch

The Huawei S220-48P4X is a high-performance managed network switch designed for enterprise-grade deployments requiring robust Power over Ethernet Plus (PoE+) support. Featuring 52 total ports, it offers 48 Gigabit Ethernet PoE+ ports alongside 4 10GE SFP+ uplink ports, delivering extensive connectivity for devices like IP cameras, wireless access points, and VoIP phones, while also supporting high-speed uplink links.
With 2GB of memory and a reliable architecture, the switch achieves a data transfer rate of up to 10/100/1000 Mbps on the RJ45 ports. Its PoE+ capability supplies up to 380W power across ports, making it suitable for powering multiple network devices without the need for additional power supplies.
Constructed with a sturdy metal body in a clean white finish, the switch has a compact 1U rack-mountable design measuring 43.6 x 442 x 220 mm and weighing 3.24 kg, fitting seamlessly into standard server racks. The intelligent built-in dual-fan system ensures efficient cooling with adjustable fan speeds, maintaining optimal operating temperatures while keeping acoustic noise at a manageable 49.3 dB(A).
Power consumption is optimized, with typical usage at around 49.44W, rising to a maximum of 462.80W under full PoE load. The device supports wide environmental tolerances, operating reliably between -5°C to 50°C and functioning well at altitudes up to 5000 meters, allowing deployment in varied geographic and climatic conditions.
Enhanced durability features include surge protection on power and service ports, ensuring network stability and device longevity. It also boasts a high availability rating of over 99.999% and a mean time between failures (MTBF) of approximately 422,000 hours.
The switch provides clear LED indicators (PWR, SYS, PoE, CLOUD) for status monitoring. Its airflow design draws cool air from the left and exhausts warm air to the right, facilitating effective heat dissipation.
Included in the package are the Huawei S220-48P4X switch unit, user manual, and warranty card, backed by a 1-year warranty (excluding adapter). This model stands as a reliable, scalable solution for businesses seeking high port density with powerful PoE+ capabilities and efficient management features.
