Huawei S220-48P4S 52 Port Managed eKit SMB Switch

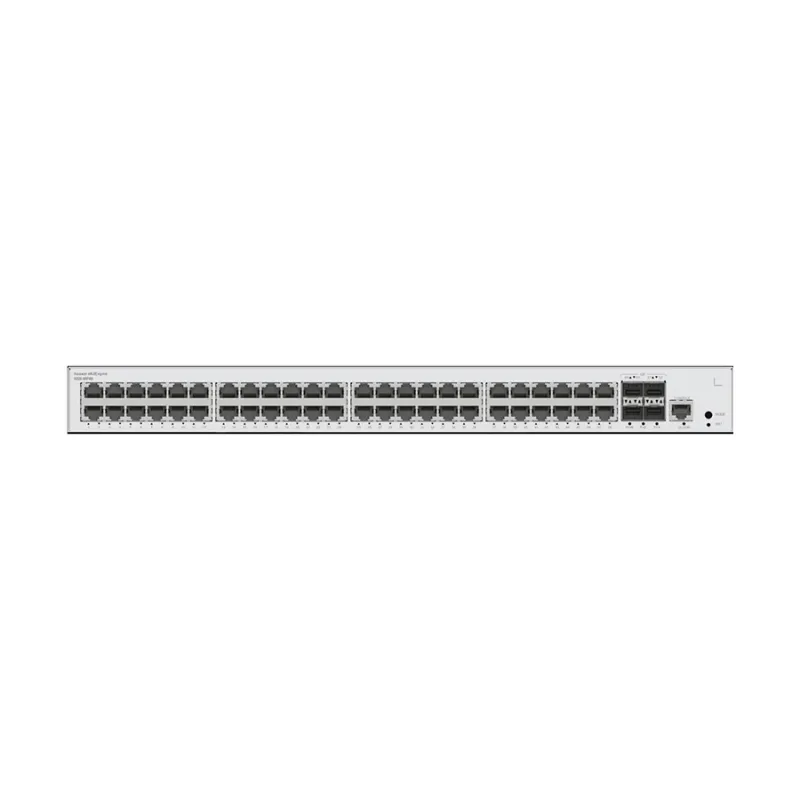

The Huawei S220-48P4S is a high-performance managed PoE+ network switch designed to meet the demands of modern enterprise networks. Featuring a robust total of 52 ports, it includes 48 Gigabit Ethernet PoE+ ports capable of delivering up to 380W of power, alongside 4 Gigabit SFP uplink ports for flexible fiber connectivity.

With 2GB of memory and advanced manageability, the switch supports extensive Layer 2 and Layer 3 networking functions, ideal for powering IP phones, wireless access points, and other PoE-enabled devices with high reliability and efficiency.

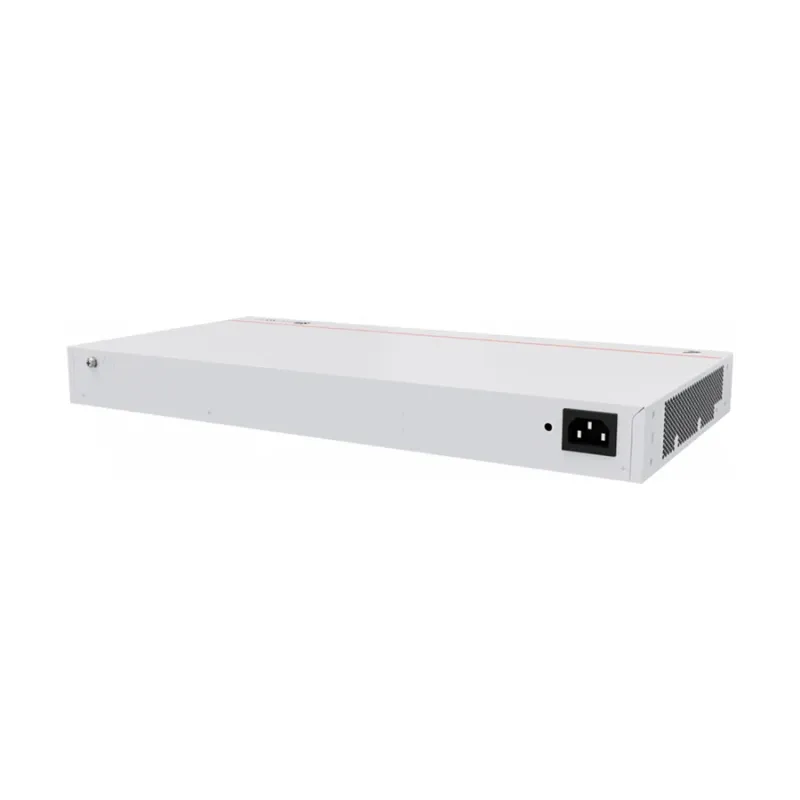

This rack-mountable 1U switch is constructed with a sturdy metal white chassis, ensuring durability and professional aesthetics in any data center or network rack. It operates with an intelligent dual-fan cooling system that balances optimal heat dissipation—up to 165.96 BTU/hour typically and peaking at 1579.12 BTU/hour under full PoE load—with noise control rated at 49.3 dB(A) acoustic power.

Power consumption ranges from a typical 48.64W (without PoE) to a maximum of 462.80W under full PoE load, making it energy-efficient while delivering robust performance. The switch supports a wide operating temperature range from -5°C to 50°C, with altitude operation up to 5000 meters, adaptable for diverse environmental conditions.

Additional features include comprehensive surge protection on service and power ports, ensuring network stability against electrical disturbances. The device has a high availability rating of over 99.999% and an MTBF of approximately 421,995 hours, signifying its reliability in critical network deployments.

Included with the switch are multiple status indicators (PWR, SYS, CLOUD) for simplified monitoring and maintenance. Its compact design measures 43.6 x 442 x 220 mm and weighs 3.24 kg, making it an ideal choice for enterprise network expansion requiring extensive PoE capabilities.
