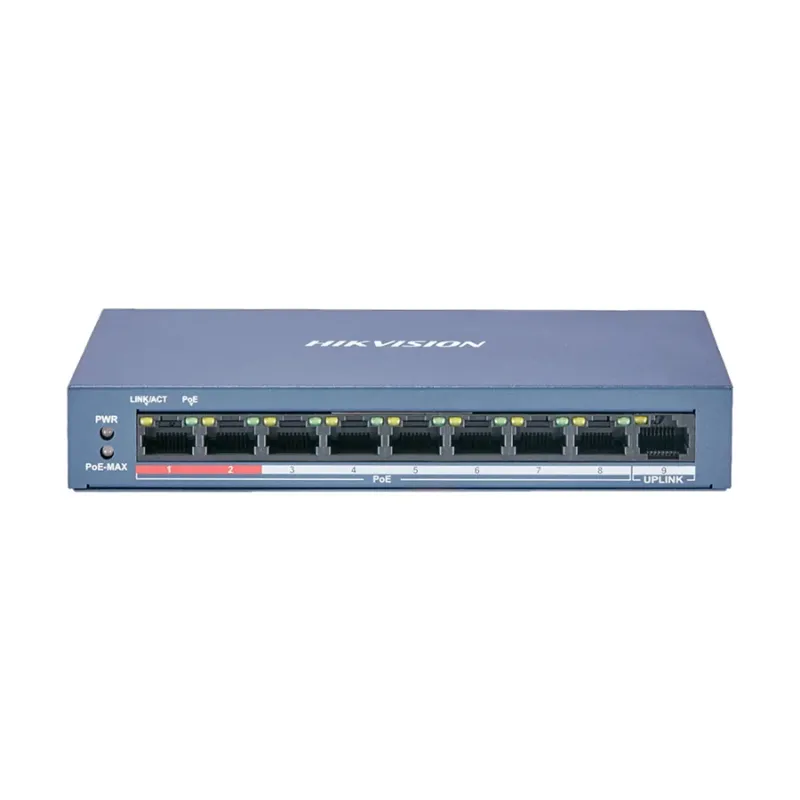

Hikvision DS-3E0109P-E/M(B) 9 Port Unmanaged PoE Switch
Key Features
- Type - Network Switch
- Number of Total Port - 9 Port
- PoE - Yes
- Manageability - Unmanaged
- Network Standards - IEEE 802.3, IEEE 802.3u, IEEE 802.3x
- Data Transfer Rate - 10/100 Mbps
- Form Factor - Rackmount
Specification
| General | |
| Brand | Hikvision |
| Model | DS-3E0109P-E/M(B) |
| Type | Network Switch |
| Key Features | |
| Indicator | Yes |
| Interface | 8 x Port 10/100 Mbps PoE, 1 x Port 10/100 Mbps RJ45 |
| Network & Connectivity | |
| Data Rate | 10/100 Mbps |
| Network Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Ports & Connector | |
| PoE Port | 8 |
| Total Port | 9 Port |
| Power | |
| Power Supply | 48 VDC, 1.35 A |
| Power Consumption | 65W |
| Physical Specification | |
| Color | Blue |
| Connector Type | 9 x 10/100Mbps The RJ45 port |
| Form Factor | Rackmount |
| Material | Metal |
| Weight | 0.89 kg |
| Dimension | 170 x 27.6 x 93.1mm |
| Technical Specification | |
| Manageability | Unmanaged |
| PoE | Yes |
| Switching Capacity | 1.8 Gbps |
| Transmission Method | Store-and-forward |
| What's in the Box | |
| Packet Contents | Hikvision DS-3E0109P-E/M(B) Switch |
| Warranty Information | |
| Warranty | 1 Year (Without Adapter) |
Description
The Hikvision DS-3E0109P-E/M(B) is a robust 9-port Fast Ethernet PoE switch designed for surveillance and network applications requiring reliable power and data delivery. It features 8 PoE ports (10/100 Mbps) and 1 uplink RJ45 port, supporting IEEE 802.3af/at standards with a total PoE power budget of 60W and up to 30W per port. Engineered for video transmission, it includes VIP port prioritization on ports 1 and 2 to ensure critical data flows smoothly during congestion.
The switch supports Intelligent PoE Management, automatically adjusting power allocation when limits are reached to prolong device life. In Extend Mode, it delivers long-range PoE transmission up to 300 meters, while 4/8-core adaptive power supply reduces power loss over cables. Built-in 6KV surge protection safeguards against lightning and power spikes, ensuring dependable operation in harsh environments.
With a fanless blue metal rackmount design, it operates quietly and dissipates heat efficiently. It offers a switching capacity of 1.8 Gbps, store-and-forward transmission, a 2K MAC address table, auto MDI/MDIX, and MAC address auto-learning/aging. Measuring 170 × 27.6 × 93.1 mm and weighing 0.89 kg, it comes with a 1-year warranty (adapter not included).
