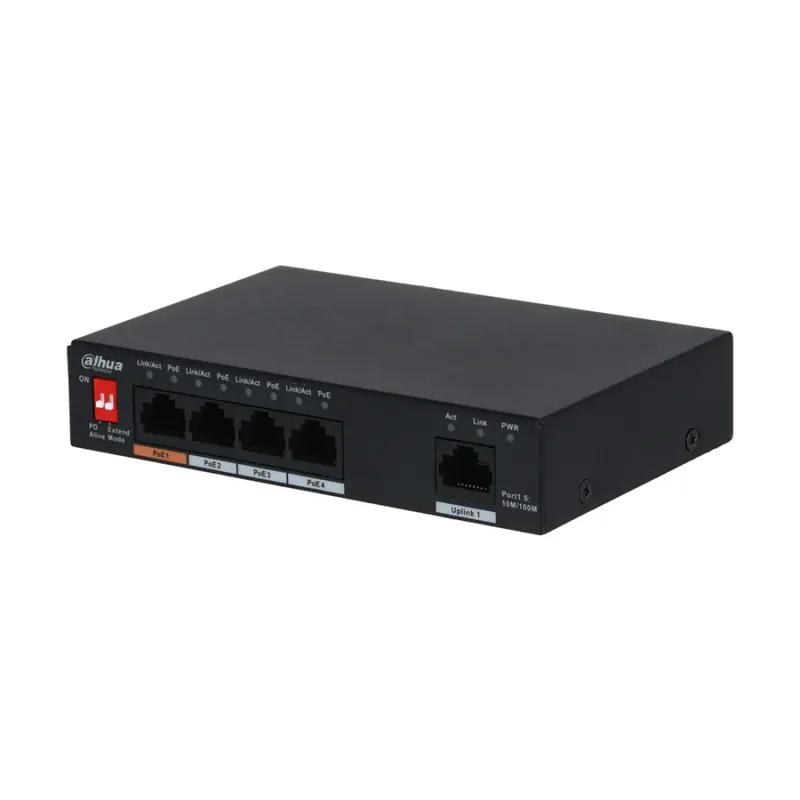

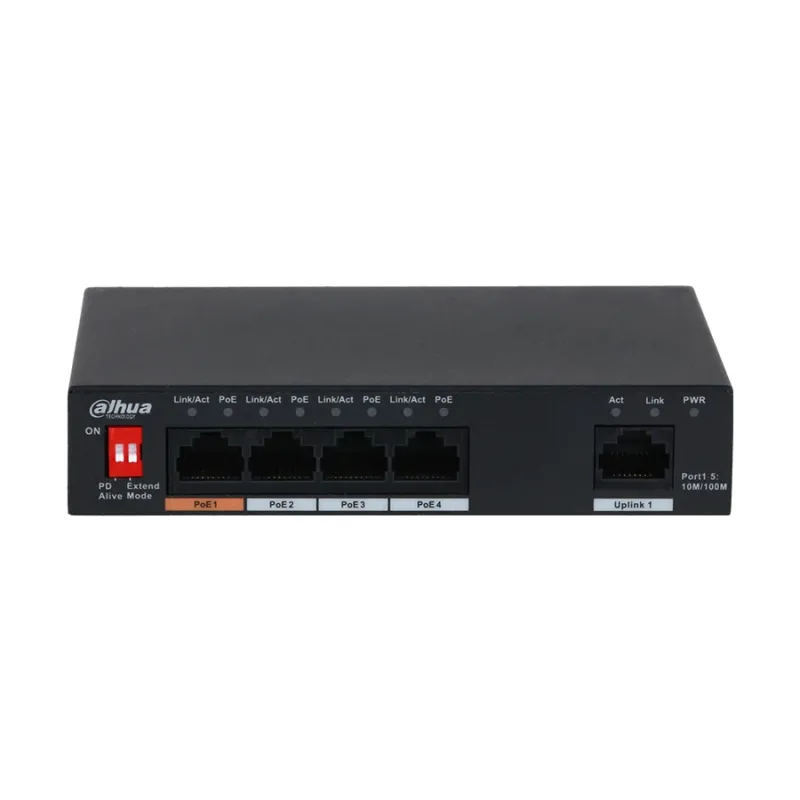

Dahua PFS3005-4ET-60 5 Port Unmanaged Desktop Switch
Key Features
- Type - Network Switch
- Number of Total Port - 5 Port
- PoE - Yes
- Manageability - Unmanaged
- Network Standards - IEEE802.3, IEEE802.3u, IEEE802.3x
- Data Transfer Rate - 10/100 Mbps
- Form Factor - Desktop/Wall Mounting
Specification
| General | |
| Brand | Dahua |
| Model | PFS3005-4ET-60 |
| Type | Network Switch |
| Key Features | |
| Interface | 4 x RJ-45 10/100M (PoE), 1 x RJ-45 10/100M (uplink) |
| Network & Connectivity | |
| Data Rate | 10/100 Mbps |
| Network Standard | IEEE802.3, IEEE802.3u, IEEE802.3x |
| Ports & Connector | |
| PoE Port | 4 |
| Total Port | 5 Port |
| Power | |
| Power Supply | 48V - 57V DC |
| Power Consumption | Idling: 0.8 W, Full load: 60 W |
| Physical Specification | |
| Color | Black |
| Connector Type | 5 x 10/100 Mbps RJ45 |
| Form Factor | Desktop/Wall Mounting |
| Weight | 0.30 Kg |
| Dimension | 130 x 85 x 26mm |
| Technical Specification | |
| Manageability | Unmanaged |
| PoE | Yes |
| Switching Capacity | 1.8 Gbps |
| Specialty | Intelligent PoE, Hi-PoE 60W (orange port), 8-pin assignment PoE power supply, Long distance PoE, PoE watchdog, Wide working temperature |
| What's in the Box | |
| Packet Contents | 1 x Dahua PFS3005-4ET-60, 1 x User manual |
| Warranty Information | |
| Warranty | 1 Year (Without Adapter) |
Description
The Dahua PFS3005-4ET-60 is a compact, unmanaged 5-port Ethernet switch designed to deliver reliable power and data connectivity, featuring 4 PoE ports and 1 uplink port. Supporting IEEE 802.3af/at and Hi-PoE standards, this switch can supply up to 60W power on the primary (orange) PoE port, while ports 2 to 4 provide up to 30W each, with a total PoE power budget of 60W, making it suitable for powering devices like IP cameras, wireless access points, and other PoE-enabled equipment.
Operating at 10/100 Mbps speeds, the switch provides efficient data transfer with a switching capacity of 1.8 Gbps and a packet forwarding rate of 744 Kpps. The device supports flow control by default, enhancing data transmission reliability.
Engineered for flexibility and durability, the PFS3005-4ET-60 supports long-distance PoE transmission up to 250 meters, allowing greater installation flexibility. It includes intelligent PoE power management and a PoE watchdog function, which automatically reboots unresponsive PoE-powered devices to maintain network stability.

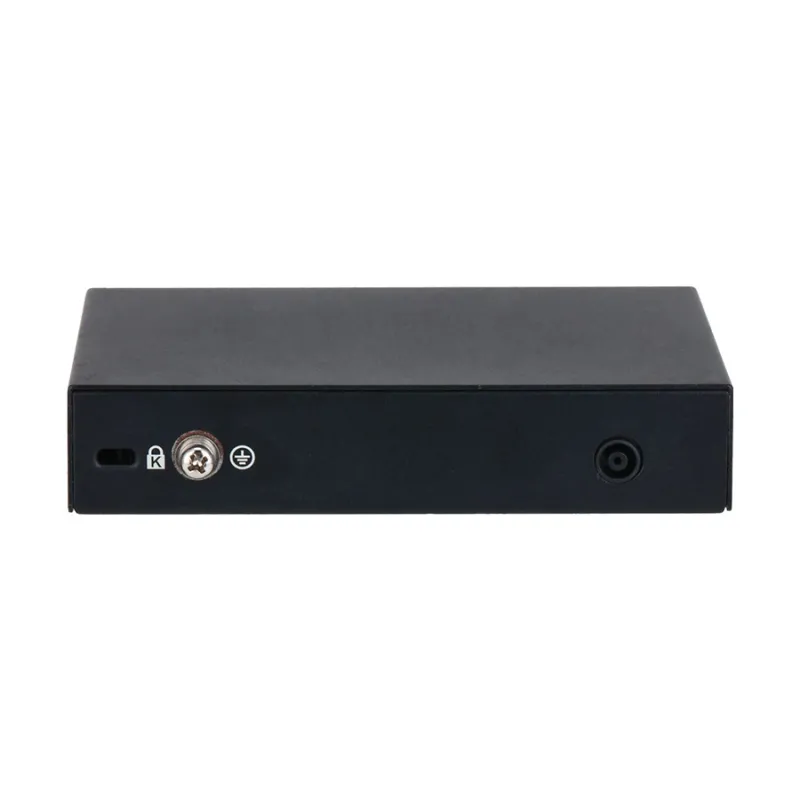

The switch features robust protection with 4 kV common mode and 2 kV differential mode lighting protection, alongside ESD protection of 8 kV (air discharge) and 6 kV (contact discharge). Its metal casing supports wall mounting with an anti-theft lock hole, fitting well into various indoor environments.
Powered by a 48-57V DC power supply, it consumes as little as 0.8W when idle and up to 60W at full load. The fanless design ensures silent operation, while the operating temperature range supports broad working conditions.
Package contents include the Dahua PFS3005-4ET-60 switch and a user manual, backed by a 1-year warranty (without adapter).
