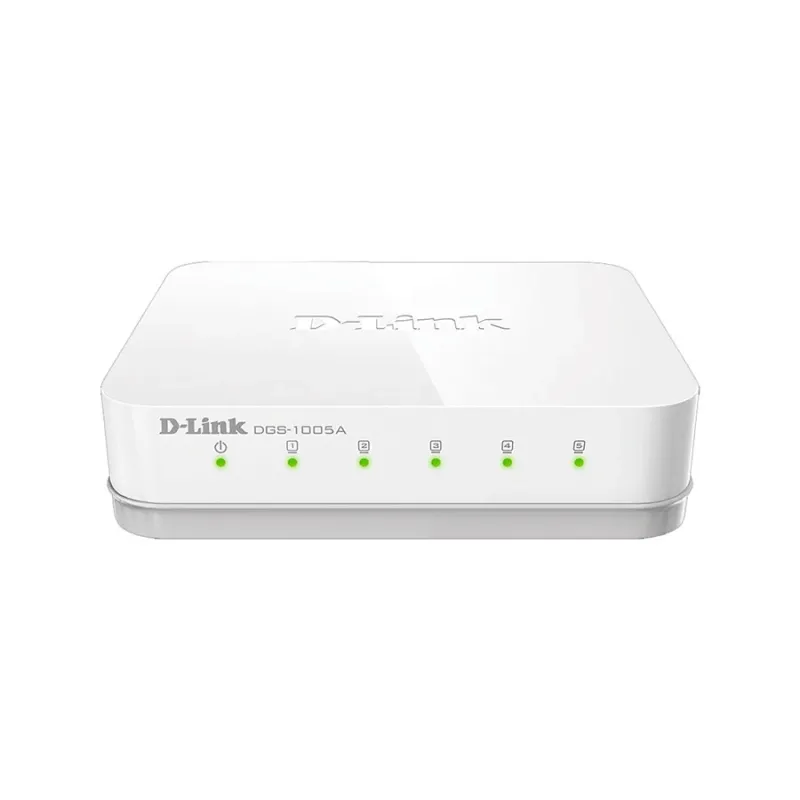

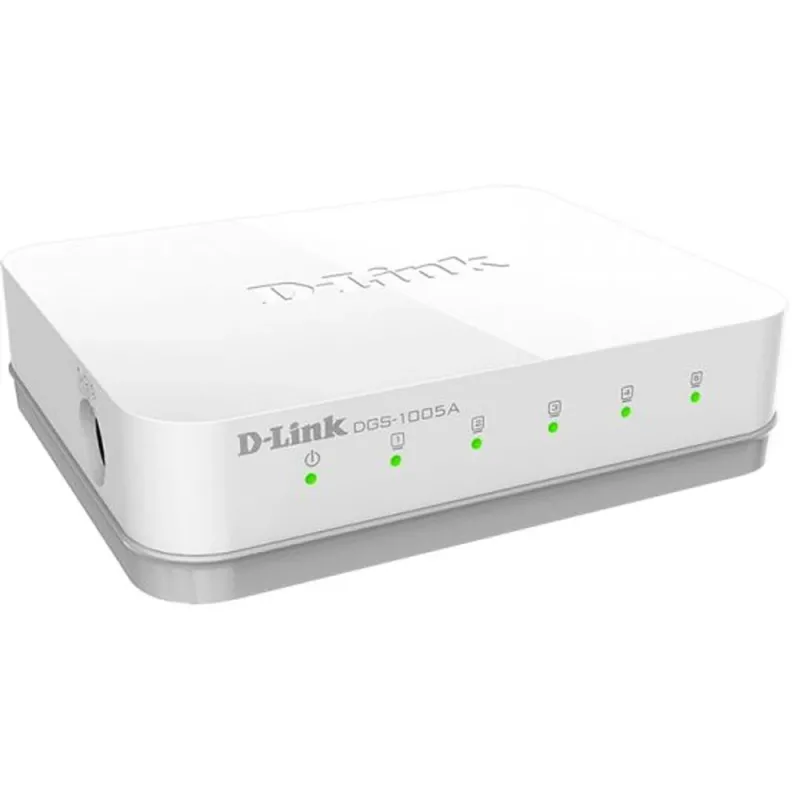

D-Link DGS-1005A 5-Port Gigabit Unmanaged Desktop Switch
Key Features
- Type - Network Switch
- Number of Total Port - 5 Port
- PoE - No
- Manageability - Unmanaged
- Data Transfer Rate - 10/100/1000 Mbps
- Form Factor - Desktop
Specification
| General | |
| Brand | D-Link |
| Model | DGS-1005A |
| Type | Network Switch |
| Key Features | |
| Indicator | Yes |
| Interface | 5 x 10/100/1000 Mbps LAN ports |
| MTBF | 1,152,221 hours |
| Network & Connectivity | |
| Data Rate | 10/100/1000 Mbps |
| Ports & Connector | |
| Gigabit Port | 5 |
| Total Port | 5 Port |
| Power | |
| Power Supply | AC 100-240 VAC |
| Power Consumption | 3.90W |
| Physical Specification | |
| Color | White |
| Fan | Fanless |
| Form Factor | Desktop |
| Weight | 0.08kg |
| Dimension | 91 x 73 x 22mm |
| Technical Specification | |
| Manageability | Unmanaged |
| Memory | 64KB (Flash) |
| Switching Capacity | 10 Gbps |
| Transmission Method | Store-and-forward |
| Specialty | Compact design for convenient placement, Innovative D-Link Green energy saving features, Comply with RoHS 6, Energy Efficiency Ethernet (EEE), Power Saving By Link Status. |
| What's in the Box | |
| Packet Contents | 1 x D-Link DGS-1005A Switch, 1 x User Manual |
| Warranty Information | |
| Warranty | 1 Year (Without Adapter) |
Description
The D-Link DGS-1005A is a compact and efficient unmanaged gigabit network switch designed for small home or office networks. Equipped with 5 Gigabit Ethernet ports (10/100/1000 Mbps), it delivers fast and reliable wired connections for multiple devices, ensuring smooth data transfers and seamless streaming.
This fanless switch operates silently and utilizes a store-and-forward transmission method with a robust switching capacity of 10 Gbps, capable of handling high network loads effortlessly. It features Auto MDI/MDIX support, eliminating the need for crossover cables and simplifying setup.
Built with energy efficiency in mind, the DGS-1005A incorporates innovative D-Link Green technology and 802.3az Energy Efficient Ethernet (EEE) standards that dynamically reduce power consumption based on network activity and link status, helping lower electricity costs and environmental impact.
Physically, the switch boasts a sleek white design with dimensions of 91 x 73 x 22 mm and weighs just 80 grams, making it easy to place on a desktop or other convenient locations. LED indicators provide clear status updates for each port, allowing quick monitoring of link and activity.
Additional features include a generous 128KB packet buffer, a 4K MAC address table, support for jumbo frames up to 9,720 bytes, and built-in surge and lightning protection for both AC power and Ethernet ports, ensuring durability and network stability.
With an MTBF of over 1.15 million hours and a low power consumption of approximately 3.9W (only 0.6W in standby), the D-Link DGS-1005A is an ideal plug-and-play solution for users seeking high-speed, reliable, and energy-efficient networking in a compact form factor.
