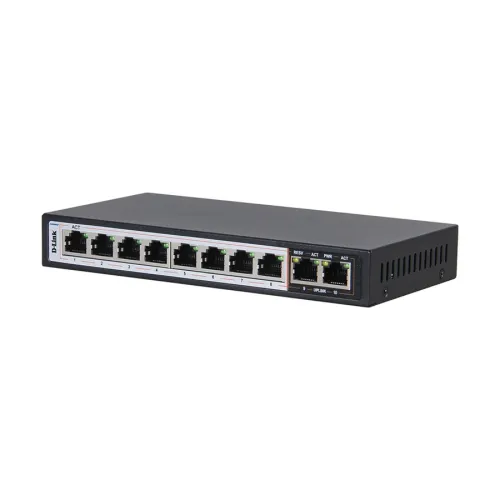

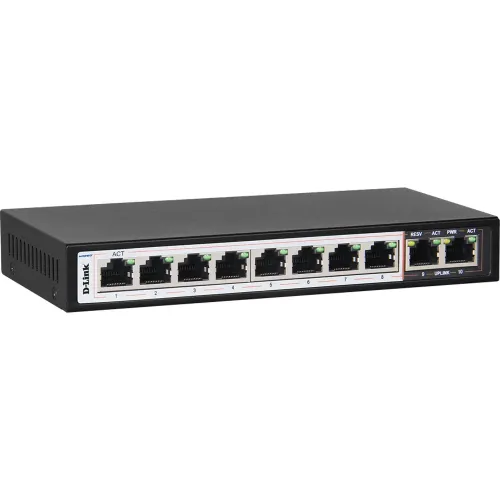

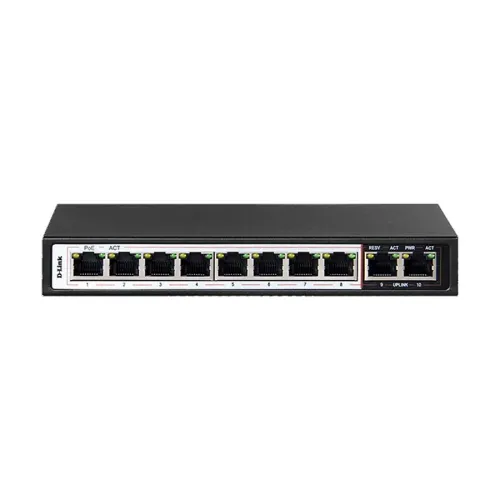

D-link DES-F1010P-E 10 Port Unmanaged PoE Switch
Key Features
- Type - Network Switch
- Number of Total Port - 10 Port
- PoE - Yes
- Manageability - Unmanaged
- Data Transfer Rate - 10/100 Mbps
- Form Factor - Desktop
Specification
| General | |
| Brand | D-link |
| Model | DES-F1010P-E |
| Type | Network Switch |
| Key Features | |
| Indicator | LEDs, Link/Activity |
| Interface | 8 x 10/100 BASE-T ports, 2 x 10/100 BASE-T Uplink ports |
| Network & Connectivity | |
| Data Rate | 10/100 Mbps |
| Network Standard | IEEE 802.3 10BASE-T Ethernet (twisted-pair copper), IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper), ANSI/IEEE 802.3 NWay auto-negotiation, IEEE 802.3x ow contro |
| Ports & Connector | |
| PoE Port | 8 |
| Total Port | 10 Port |
| Power | |
| Power Supply | External power adapter: 96W |
| Physical Specification | |
| Color | Black |
| Fan | Fanless |
| Weight | 0.95 Kg |
| Dimension | 184 x 75 x 27mm |
| Technical Specification | |
| Manageability | Unmanaged |
| PoE | Yes |
| Switching Capacity | 2Gbps |
| Transmission Method | Adopt Store-and-forward |
| What's in the Box | |
| Packet Contents | 1 x D-link DES-F1010P-E Switch, 1 x User Manual |
| Warranty Information | |
| Warranty | 1 Year (Without Adapter) |
Description
The D-Link DES-F1010P-E is a compact and efficient 10-port Fast Ethernet unmanaged switch designed for small to medium-sized networks that require both data connectivity and Power over Ethernet (PoE) capabilities. It features 8 x 10/100BASE-T PoE ports and 2 x 10/100BASE-T uplink ports, making it ideal for connecting and powering PoE-enabled devices such as IP cameras, wireless access points, and VoIP phones.
Compliant with IEEE 802.3af and IEEE 802.3at PoE standards, it delivers up to 30W per port with a total power budget of 96W, allowing simultaneous powering of multiple devices. The PoE ports support long-distance power transmission of up to 250 meters, providing flexibility in deployment without additional electrical wiring.
With a switching capacity of 2Gbps and store-and-forward transmission, the DES-F1010P-E ensures smooth and reliable data delivery. The Auto MDI/MDI-X feature on all ports simplifies setup by eliminating the need for crossover cables, while built-in 6KV surge protection safeguards against power spikes and electrical damage.
The fanless design ensures silent operation, and the black desktop form factor (184 x 75 x 27 mm, 0.95 kg) fits neatly into various workspaces. LED indicators provide at-a-glance status for link/activity and PoE operation.
With plug-and-play installation, no configuration is required, making it an easy and cost-effective solution for expanding networks with PoE support. Certified for CE and FCC compliance, it offers both reliability and safety for continuous use in offices, shops, and surveillance systems.
