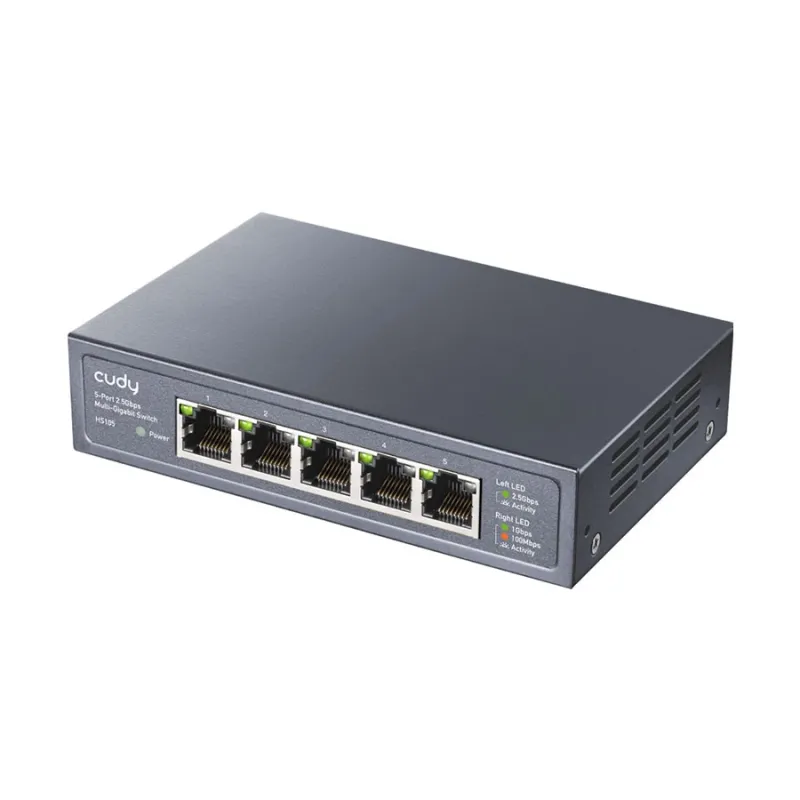

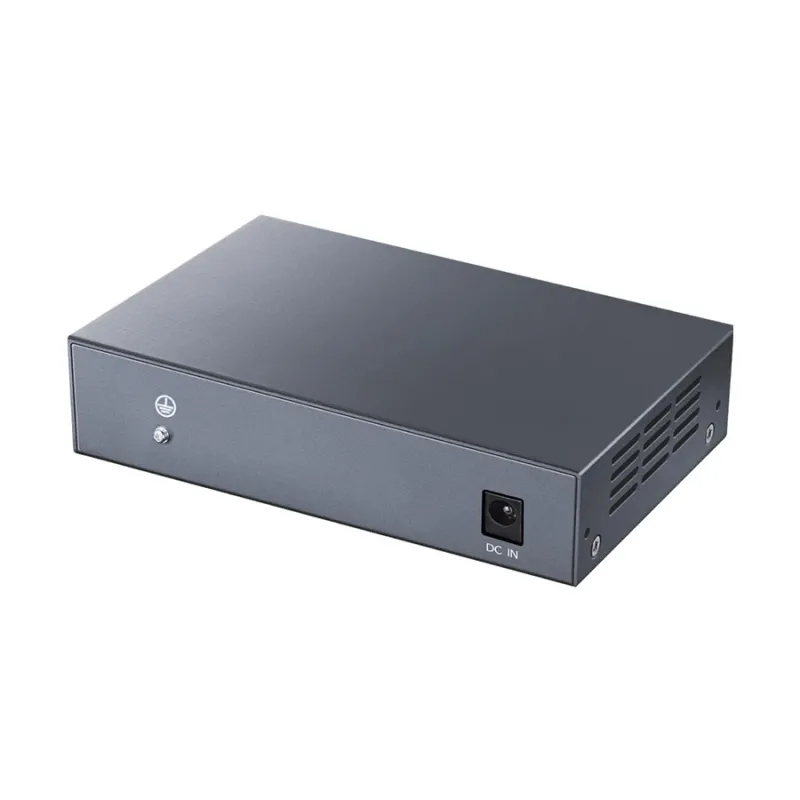

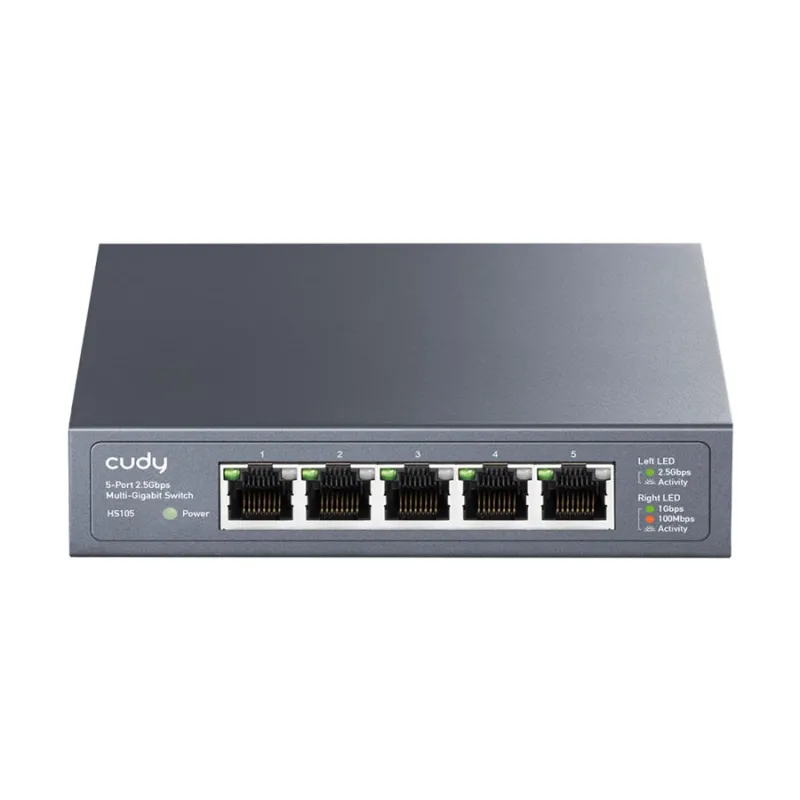

Cudy HS105 5 Port 2.5G Unmanaged Desktop Switch
Key Features
- Type - Network Switch
- Number of Total Port - 5 Port
- PoE - No
- Manageability - Unmanaged
- Data Transfer Rate - 10/100/1000/2500 Mbps
- Form Factor - Desktop/Wall Mounting
Specification
| General | |
| Brand | Cudy |
| Model | HS105 |
| Type | Network Switch |
| Key Features | |
| Indicator | Power, Link/Act per port |
| Interface | 5 x 100/1000/2500 Mbps Ports (Auto-Negotiation, Auto-MDI/MDIX) |
| Network & Connectivity | |
| Data Rate | 10/100/1000/2500 Mbps |
| Ports & Connector | |
| Gigabit Port | 5 |
| Total Port | 5 Port |
| Power | |
| Power Supply | DC 12V/ 1 A |
| Power Consumption | 10.5W (Max.), 4.7W (Idle power) |
| Physical Specification | |
| Color | Gray |
| Connector Type | 5 x 100/1000/2500 Mbps RJ45 Ports |
| Fan | Fanless |
| Form Factor | Desktop/Wall Mounting |
| Material | Metal |
| Weight | 456 gm |
| Dimension | 119 x 85 x 28 mm |
| Technical Specification | |
| Manageability | Unmanaged |
| Switching Capacity | 25 Gbps |
| Transmission Method | Store-and-Forward |
| What's in the Box | |
| Packet Contents | 1 x 2.5 Gbps Ethernet Switch, 1 x Power Adapter, 1 x Installation Guide, 1 x Mounting Kit |
| Warranty Information | |
| Warranty | 1 Year (Without Adapter) |
Description
The Cudy HS105 is a high-performance unmanaged Ethernet switch designed to deliver ultra-fast network speeds with support for multi-gigabit connections. Perfect for home users, small offices, or enthusiasts looking to upgrade their network infrastructure with 2.5 Gbps capability while maintaining simplicity and reliability.
Key Features:
Ports: Equipped with 5 multi-speed RJ45 ports, each supporting 100 Mbps, 1 Gbps, and 2.5 Gbps data rates with Auto-Negotiation and Auto-MDI/MDIX. This flexibility ensures seamless connection with a wide range of devices and maximizes network speed for compatible equipment.
Performance: Boasts a non-blocking switching architecture with a total switching capacity of 25 Gbps, enabling full wire-speed forwarding without packet loss. The Store-and-Forward method enhances reliability by verifying packets before forwarding.
Packet Handling: Features a generous 4 Mbit packet buffer and supports jumbo frames up to 15 KB, improving network efficiency and reducing latency for demanding applications.
Network Protocols: Supports IEEE 802.3x flow control for smooth data transmission and IGMP snooping for efficient multicast traffic handling.
Reliability: Integrated loop detection automatically blocks network loops, enhancing stability and uptime.
Build and Form Factor: Constructed with a durable metal body in gray color, the switch is fanless for silent operation and supports both desktop placement and wall mounting, fitting flexibly into different environments.
Indicators: Each port has LED indicators for power, link, and activity status, making network monitoring and troubleshooting straightforward.
Power & Efficiency: Powered by a DC 12V/1A adapter, it consumes a maximum of 10.5W (idle power approx. 4.7W), combining energy efficiency with strong performance.
Compatibility: Supports various cable types and distances:
2.5GBASE-T: Cat5e (up to 50m), Cat6/Cat6a (up to 100m)
1000BASE-T and 100BASE-TX: Cat5 and above (up to 100m)
Environment: Operates reliably in temperatures from 0°C to 40°C and humidities from 10% to 90% non-condensing.
Warranty: Includes a 1-year warranty (excluding adapter).
