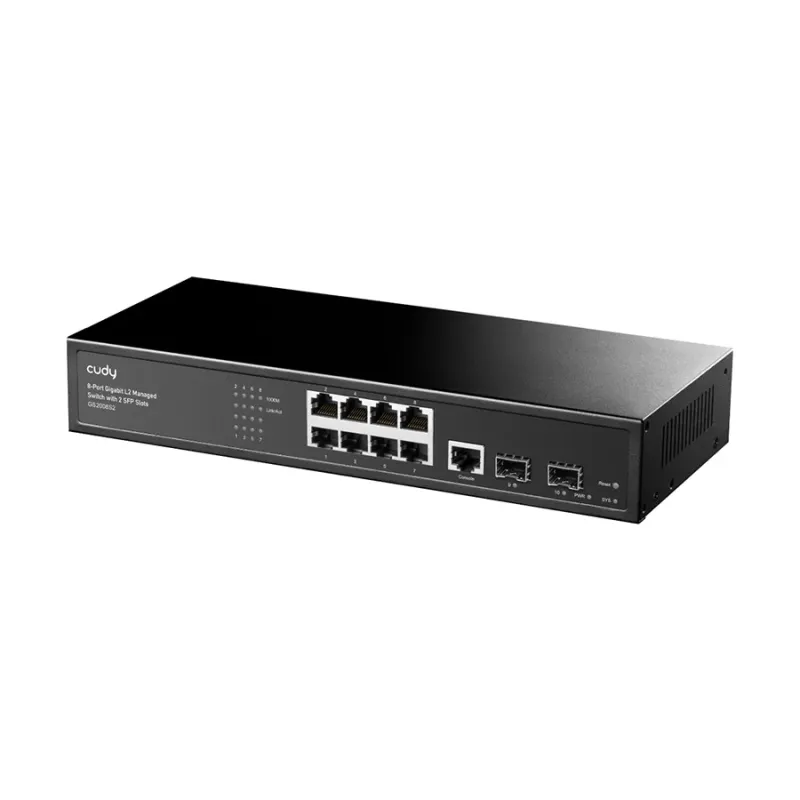

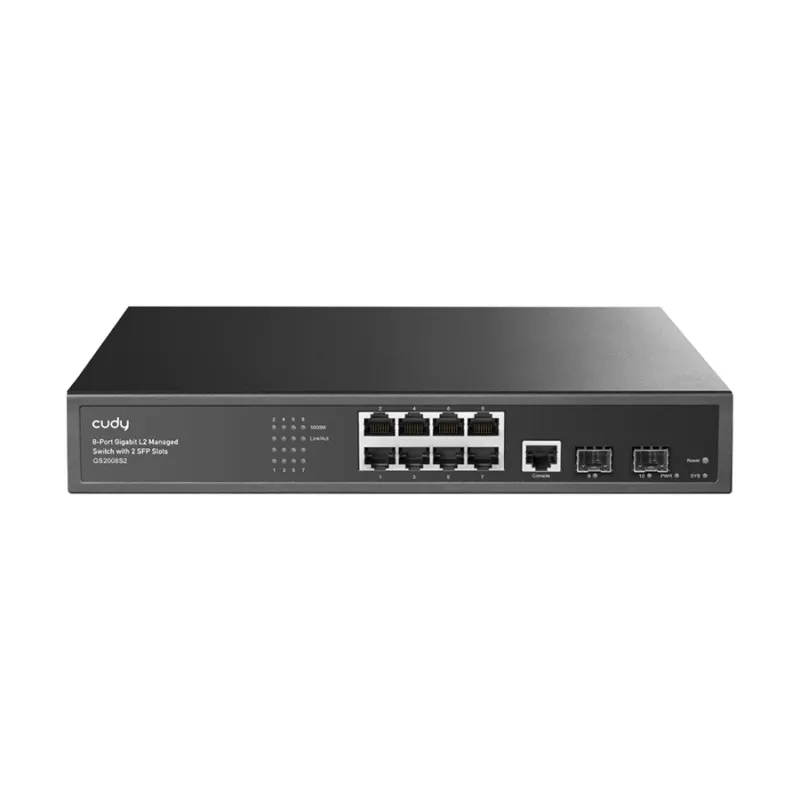

Cudy GS2008S2 1.0 10 Port L2 Managed Network Switch
Key Features
- 8× Gigabit RJ‑45 ports
- 2× SFP fiber uplinks
- Silent, fanless metal chassis
- 56 Gbps switching capacity
- Full L2 management (VLAN, QoS)
Specification
| General | |
| Brand | Cudy |
| Model | GS2008S2 |
| Type | Network Switch |
| Key Features | |
| Interface | 8 x 10/100/1000Mbps Ethernet, 2 x 1.25G SFP, 1 x RJ45 Console |
| MTBF | 100000 Hours |
| Network & Connectivity | |
| Data Rate | 10/100/1000 Mbps |
| Network Standard | IEEE802.3 (Ethernet), IEEE802.3u (Rapid Ethernet), IEEE 802.3ab (Gigabit Ethernet), IEEE 802.3z (Gigabit Ethernet Optic Fiber), IEEE802.3x (Flow Control), IEEE 802.3az (Energy-efficient Ethernet), IEEE 802.3ad (Link aggregaon), IEEE 802.1AB LLDP/LLDP-MED (Link Layer Discovery Protocol), IEEE 802.1D Spanning Tree Protocol STP, IEEE 802.1w Rapid Spanning Tree Protocol RSTP, IEEE 802.1s Multiple Spanning Tree Protocol MSTP, IEEE 802.1Q (Virtual LAN), IEEE 802.1p (VLAN Label), IEEE 802.1X (User authentication) |
| Ports & Connector | |
| Gigabit Port | 8 |
| PoE+ Port | No |
| SFP Port | 2 |
| Total Port | 10 Port |
| Power | |
| Power Supply | AC 100-240V |
| Power Consumption | 12 W - 130 W |
| Physical Specification | |
| Color | Black |
| Connector Type | RJ45 |
| Form Factor | Desktop/Rackmount |
| Weight | 1 kg |
| Dimension | 268 x 180 x 44mm |
| Technical Specification | |
| Manageability | Managed |
| Memory | 128MB (DRAM), 16MB (Flash Memory) |
| PoE | No |
| Switching Capacity | 21 Gbps |
| Transmission Method | Store and Forward |
| What's in the Box | |
| Packet Contents | Main switch unit, Power cord, Installation / mounting kit, User / installation guide / manual |
| Warranty Information | |
| Warranty | 1 Year (Without Adapter) |
Description
The Cudy GS2008S2 1.0 is a Layer‑2 managed gigabit switch built for small to mid‑scale network environments. It delivers 8 RJ‑45 Gigabit Ethernet ports plus 2 SFP fiber uplink slots, enabling flexible network designs with copper and fiber connectivity. With a fanless and silent cooling design, it’s ideal for quiet offices or environments where noise matters. It supports standard L2 management features such as VLANs, link aggregation, spanning tree (STP/RSTP/MSTP), QoS, 802.1x authentication, and more. The switch offers a switching capacity of 56 Gbps and a forwarding rate of ~15.624 Mpps. Its compact metal chassis (268 × 180 × 44 mm) and ~1.01 kg weight make it rack‑mountable in a 1U form factor.
