Cudy GS1008PT 1.0 8 Port (8-Port 10/100/1000Mbps PoE+) Unmanaged Desktop Switch
Key Features
- 8 × Gigabit PoE+ Ethernet ports

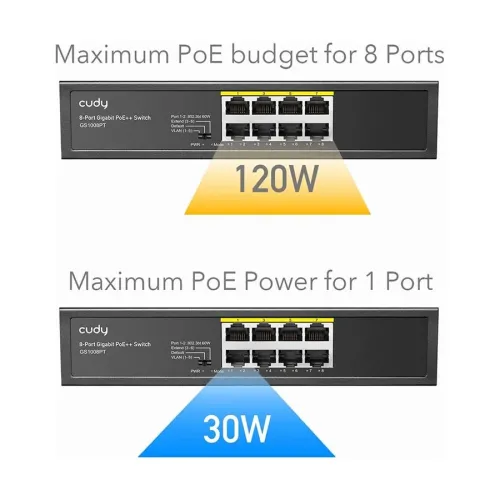

- 120 W total PoE power budget
- Ports 1–2 support 60 W output
- Extend mode support up to 250 m
- 16 Gbps switching capacity
Specification
| General | |
| Brand | Cudy |
| Model | GS1008PT |
| Type | Network Switch |
| Key Features | |
| Indicator | PWR (power supply) , Mode (DIP), 1-8 Green (Link&Data) |
| Interface | 8 x 10/100/1000Mbps PoE+ |
| MTBF | 100000 hour |
| Network & Connectivity | |
| Data Rate | 10/100/1000 Mbps |
| Network Standard | IEEE 802.3x |
| Ports & Connector | |
| Gigabit Port | 8 |
| PoE+ Port | 8 |
| SFP Port | No |
| Total Port | 8 Port |
| Power | |
| Power Supply | AC 100-240 V, 52V - 2.3A |
| Power Consumption | 120 W |
| Physical Specification | |
| Color | Black |
| Connector Type | RJ45 |
| Form Factor | Desktop |
| Material | Metal |
| Weight | 0.6 kg |
| Dimension | 200 x 118 x 44mm |
| Technical Specification | |
| Manageability | Unmanaged |
| PoE | Yes |
| Switching Capacity | 16 Gbps |
| Transmission Method | Store-and-Forward switching |
| Warranty Information | |
| Warranty | 1 Year (Without Adapter) |
Description
The Cudy GS1008PT 1.0 is an 8-port unmanaged Gigabit PoE+ desktop switch tailored for small network installations needing power delivery and network expansion simultaneously. It features eight 10/100/1000 Mbps Ethernet ports, all supporting PoE/PoE+ (802.3af/at), enabling both data and power delivery to devices like IP cameras, access points, and VoIP phones without separate power lines. The switch offers a total PoE budget of 120 W, with its first two ports able to supply up to 60 W each, while the remaining ports provide up to 30 W each. It supports “Extend mode” for long-distance PoE transmission (up to 250 m, at reduced speed) and includes basic VLAN mode for traffic segmentation. With a switching capacity of 16 Gbps and throughput of about 11.9 million packets per second, it’s ideal for small-to-medium setups needing both connectivity and power.
