Cudy FS1010PG 10 Port Network Switch
Key Features
- Type - Network Switch
- Number of Total Port - 10 Port
- PoE - Yes
- Manageability - Unmentioned
- Network Standards - IEEE802.3af/at
- Data Transfer Rate - 10/100/1000 Mbps
- Form Factor - Desktop
Specification
| General | |
| Brand | Cudy |
| Model | FS1010PG |
| Type | Network Switch |
| Key Features | |
| Indicator | PWR, LNK/ACT, PoE |
| Interface | 8 x 10/100Mbps PoE+ & 2 x 10/100/1000Mbps Uplink |
| MTBF | >50000 Hour |
| Network & Connectivity | |
| Data Rate | 10/100/1000 Mbps |
| Network Standard | IEEE802.3af/at |
| Ports & Connector | |
| Gigabit Port | 2 |
| PoE+ Port | 8 |
| Total Port | 10 Port |
| Power | |
| Power Supply | 120W |
| Physical Specification | |
| Color | Black |
| Connector Type | RJ-45 |
| Fan | Fanless |
| Form Factor | Desktop |
| Weight | >1 kg |
| Dimension | 220 x 150 x 44mm |
| Technical Specification | |
| Manageability | Unmentioned |
| PoE | Yes |
| What's in the Box | |
| Packet Contents | 1 x FS1010PG, 1 x Power Cord, 1 x Installation Guide |
| Warranty Information | |
| Warranty | 1 Year (Without Adapter) |
Description
The Cudy FS1010PG is a robust 10-port network switch designed to deliver efficient wired connectivity with advanced Power over Ethernet (PoE+) capabilities, making it ideal for small to medium business networks, especially for CCTV and VLAN applications.
Key Features:
Ports: The switch includes 8 x 10/100 Mbps PoE+ ports to power devices like IP cameras, access points, and VoIP phones directly over the Ethernet cable, plus 2 x 10/100/1000 Mbps uplink ports for high-speed network connection to routers or other switches.

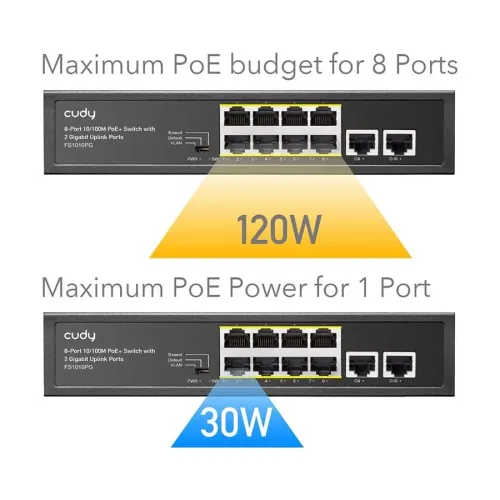

PoE Power: Supports IEEE 802.3af/at standards with a total PoE power budget of 120W and up to 32W per PoE port. PoE operates in Mode A (pins 1/2 anode and 3/6 cathode) ensuring compatibility with a wide range of PoE-enabled devices.
Performance: Utilizes store-and-forward switching with a packet forwarding rate of 1.48 million packets per second (Mpps) and a bandwidth capacity backed by a 2 Mbit packet buffer to maintain smooth and reliable data transmission.
Network Standards: Compliant with IEEE 802.3, 802.3u, 802.3af, 802.3at, and supports full and half-duplex flow control (IEEE 802.3x), ensuring efficient handling of network traffic and minimizing packet loss.

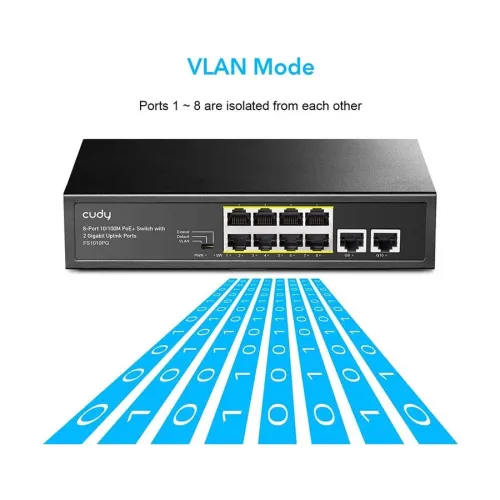

Specialized Functions: Offers support for VLAN and CCTV network segmentation, enhancing security and traffic management. The switch features intelligent line-speed forwarding and an 8K MAC address table for automatic learning and aging, optimizing network performance.
Physical & Environmental: The FS1010PG is fanless for silent operation, housed in a sleek black desktop form factor measuring 220 x 150 x 44 mm, and weighing just over 1 kg. It operates reliably in temperatures from 0°C to 40°C, with storage temperature ranging from -40°C to 70°C.
Indicators & Monitoring: Equipped with LED indicators for power, link/activity, and PoE status to facilitate easy monitoring and troubleshooting.
Durability & Safety: Features surge protection up to ±4KV and meets electrostatic discharge standards (4KV contact, 6KV air), ensuring stable operation in varied environments.
Power Supply: Uses a standard 100-240V AC, 50/60Hz input power source.
Warranty: Comes with a 1-year warranty (excluding power adapter).
