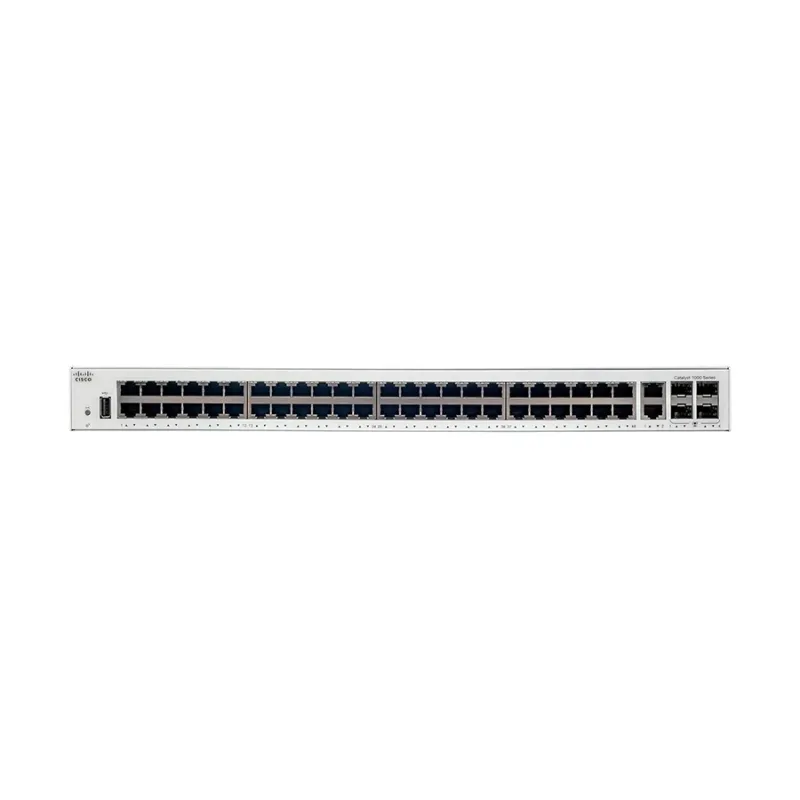

Cisco Catalyst 1000 Series 52 Port Network Switch
Key Features
- Type - Network Switch
- Number of Total Port - 52 Port
- PoE - No
- Manageability - Managed
- Data Transfer Rate - 10/100/1000 Mbps
- Form Factor - Rackmount
Specification
| General | |
| Brand | Cisco |
| Model | Catalyst 1000 Series |
| Type | Network Switch |
| Key Features | |
| Indicator | Per-port status: link integrity, disabled, activity, System status: system. |
| Interface | 48 x 10/100/1000 Ethernet ports, 4 x 10/100/1000 SFP uplinks |
| MTBF | 1,452,667 hours |
| Network & Connectivity | |
| Data Rate | 10/100/1000 Mbps |
| Ports & Connector | |
| Gigabit Port | 52 |
| PoE Port | No |
| PoE+ Port | No |
| SFP Port | 4 |
| SFP+ Port | No |
| Total Port | 52 Port |
| Power | |
| Power Supply | 100 - 240 VAC, 50/ 60 Hz |
| Physical Specification | |
| Color | Black |
| Connector Type | 48 x 10/100/1000 RJ45 ports, 4 x 10/100/1000 RJ45 SFP uplinks |
| Fan | Fanless |
| Form Factor | Rackmount |
| Dimension | 444.5 x 272.542 x 43.942mm |
| Technical Specification | |
| Manageability | Managed |
| Memory | 512MB |
| PoE | No |
| Switching Capacity | 104 Gbps |
| What's in the Box | |
| Packet Contents | Cisco Catalyst 1000 Series Network Switch, Power Cable |
| Warranty Information | |
| Warranty | 1 Year (Without Adapter) |
Description
The Cisco Catalyst 1000 Series C1000-48T-4G-L is a powerful, managed Layer 2 network switch designed for small to medium-sized businesses and enterprise branch offices seeking reliable, high-performance connectivity. It features an impressive 52 total ports—including 48 Gigabit Ethernet RJ45 ports for fast, wired connections and 4 Gigabit SFP uplink ports to ensure flexible and high-speed fiber or copper uplinks.
This fanless, rack-mountable switch operates silently and efficiently with a compact form factor measuring 444.5 x 272.5 x 43.9 mm, making it ideal for noise-sensitive environments. It delivers a robust switching capacity of 104 Gbps and a forwarding rate of 77.38 million packets per second (Mpps) for seamless data flow and minimal latency.
Powered by an ARM v7 800 MHz CPU with 512 MB RAM and 256 MB flash memory, the Catalyst 1000 supports advanced Layer 2 features such as VLANs, Spanning Tree Protocol (STP), and port security, as well as IPv4 and IPv6 routing capabilities, including multicast routing and static routes. The switch handles up to 16,000 MAC addresses and supports 256 VLANs and 4094 VLAN IDs, providing scalability for growing network demands.
Security features include support for IPv4 and IPv6 Access Control Entries (ACEs), DHCP snooping, and storm control to protect the network from attacks and disruptions. The switch also offers extensive management interfaces including RJ-45 Ethernet console, USB mini-B, and USB-A ports for storage or Bluetooth console.
Certified for global safety and electromagnetic compatibility (EMC) standards, this Cisco Catalyst switch is engineered for reliability with a Mean Time Between Failures (MTBF) of over 1.4 million hours. Its energy-efficient design complies with RoHS directives and minimizes operational costs.
Ideal for deploying secure and efficient wired networks with simplified management, the Cisco Catalyst 1000 Series C1000-48T-4G-L delivers enterprise-grade performance with the ease of use and reliability expected from Cisco.
