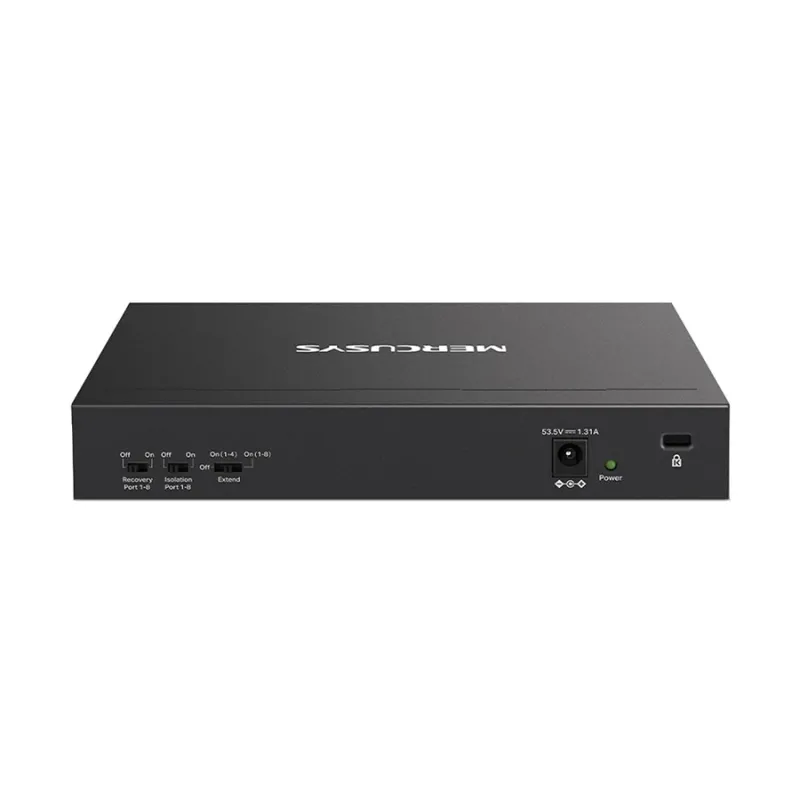

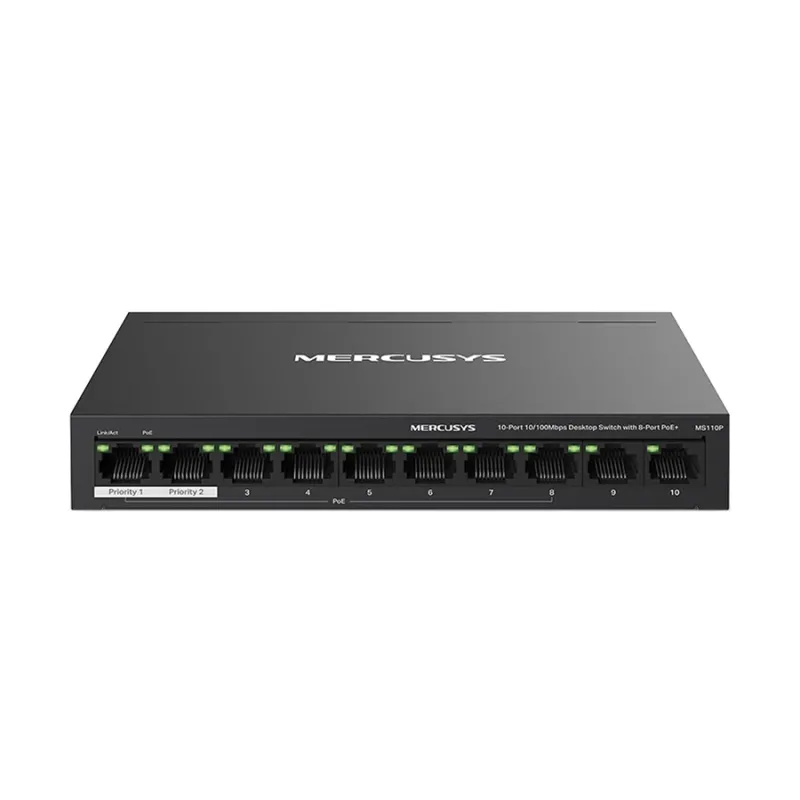

Mercusys MS110P 10-Port Unmanaged Desktop Switch
Key Features
- Type - Network Switch
- Number of Total Port - 10 Port
- PoE - Yes
- Manageability - Unmanaged
- Network Standards - IEEE 802.3x Flow Control
- Data Transfer Rate - 10/100 Mbps
- Form Factor - Desktop/Wall Mounting
Specification
| General | |
| Brand | Mercusys |
| Model | MS110P |
| Type | Network Switch |
| Key Features | |
| Interface | 2 x 10/100Mbps Ethernet, 8 x 10/100Mbps PoE+ |
| Network & Connectivity | |
| Data Rate | 10/100 Mbps |
| Network Standard | IEEE 802.3x Flow Control |
| Ports & Connector | |
| PoE+ Port | 8 |
| Total Port | 10 Port |
| Power | |
| Power Supply | Output: 53.5V/1.31A |
| Power Consumption | 2.96W (220V/ 50Hz, no PD connected), 77.52W (220V/ 50Hz, with 65W PD connected) |
| Physical Specification | |
| Color | Black |
| Connector Type | 10 x 10/100Mbps RJ45 Port |
| Form Factor | Desktop/Wall Mounting |
| Dimension | 171 x 98 x 27mm |
| Technical Specification | |
| Manageability | Unmanaged |
| PoE | Yes |
| What's in the Box | |
| Packet Contents | 1 x 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+ (MS110P), Power Adapter, Quick Installation Guide. |
| Warranty Information | |
| Warranty | 1 Year (Without Adapter) |
Description
The Mercusys MS110P is a versatile 10-port unmanaged desktop network switch designed to deliver both data connectivity and power to your network devices. Featuring 8 PoE+ ports alongside 2 standard 10/100 Mbps Ethernet ports, this switch supports IEEE 802.3af/at standards, enabling simultaneous transmission of data and power over a single cable. This makes it perfect for powering IP cameras, VoIP phones, wireless access points, and other PoE-enabled devices.
With a total PoE power budget of 65W and up to 30W per PoE port, the MS110P ensures your devices receive sufficient power reliably. It also supports an extended PoE transmission distance of up to 250 meters with its Extend Mode, giving you greater flexibility in device placement without the need for additional power sources.

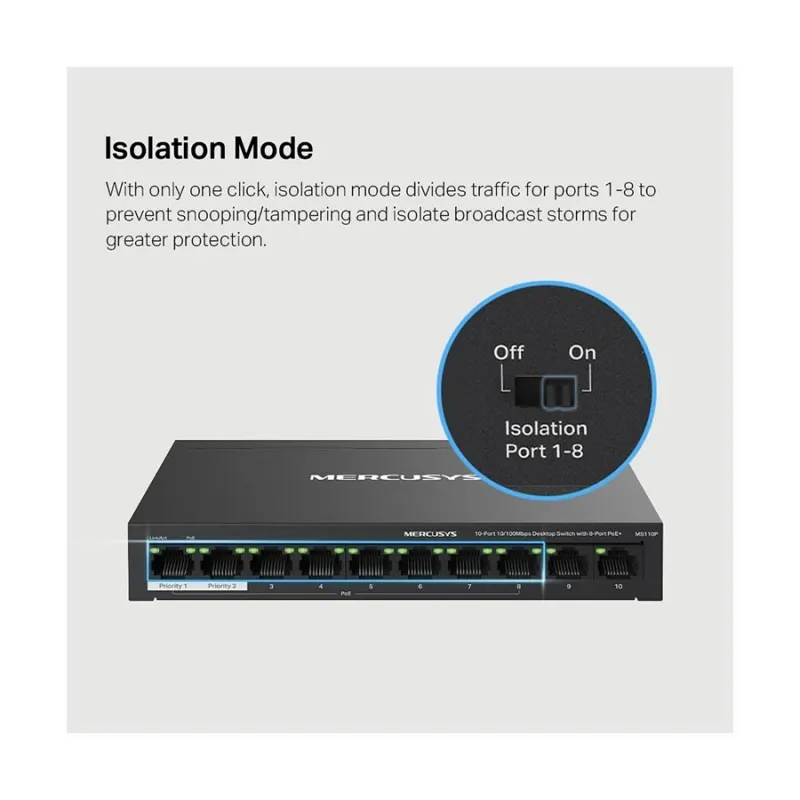

The switch offers an easy-to-use isolation mode that divides traffic for specific ports with a single click, enhancing network stability and security. Its durable metal casing aids efficient heat dissipation, ensuring long-term reliability.
Compact and fanless, the MS110P operates quietly and fits well in both desktop and wall-mounted setups. It supports auto-negotiation and Auto MDI/MDIX for seamless network integration and offers jumbo frame support up to 2 KB for efficient data transfer.
Powered by an external 53.5V/1.31A adapter, its power consumption ranges from a low 2.96W (no devices connected) to 77.52W under full PoE load. The device is designed to operate in environments with temperatures from 0 to 40°C and humidity from 10% to 90% non-condensing.
The package includes the switch, power adapter, and a quick installation guide, backed by a 1-year warranty (excluding adapter).
