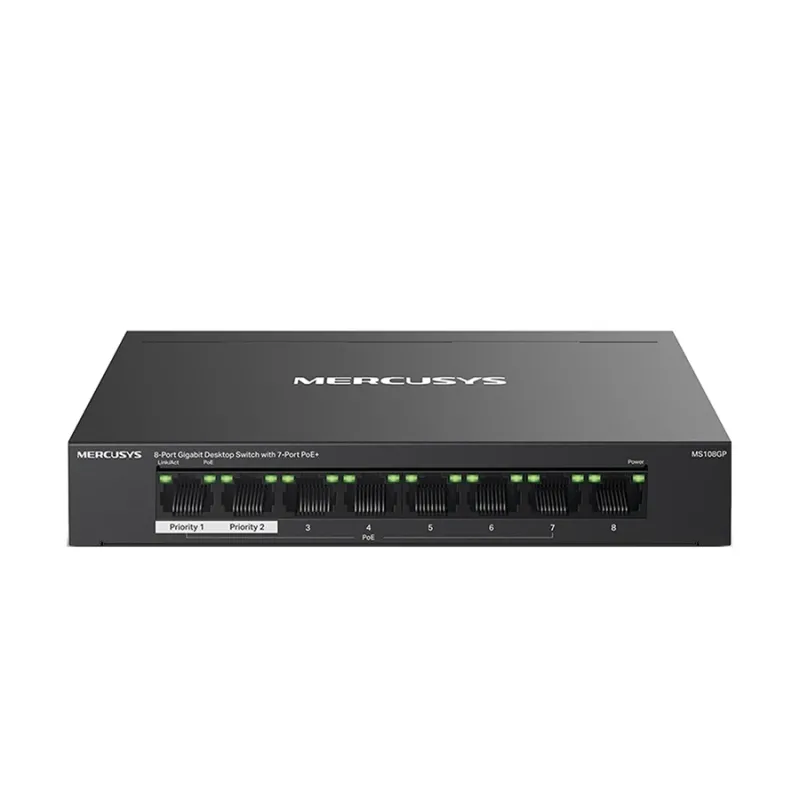

Mercusys MS108GP 8-Port Desktop Switch
Key Features
- Type - Network Switch
- Number of Total Port - 8 Port
- PoE - Yes
- Manageability - Unmanaged
- Network Standards - IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
- Data Transfer Rate - 10/100/1000 Mbps
- Form Factor - Desktop/Wall Mounting
Specification
| General | |
| Brand | Mercusys |
| Model | MS108GP |
| Type | Network Switch |
| Key Features | |
| Indicator | Power, Link/Act, PoE Status |
| Form Factor | Desktop/Wall Mounting |
| Interface | 1 x Port 10/100/1000Mbps Ethernet, 7 x Port 10/100/1000Mbps PoE+ |
| Network & Connectivity | |
| Data Rate | 10/100/1000 Mbps |
| Network Standard | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
| Ports & Connector | |
| Gigabit Port | 1 |
| PoE Port | Yes |
| PoE+ Port | 7 |
| Total Port | 8 Port |
| Power | |
| Power Supply | 53.5V/1.31A (Adapter) |
| Power Consumption | 5.07W (220 V / 50 Hz, no PD connected), 77.33W (220 V / 50 Hz, with 65W PD connected) |
| Physical Specification | |
| Color | Black |
| Connector Type | 8 x 10/100/1000Mbps RJ45 Port |
| Dimension | 171 x 98 x 27mm |
| Technical Specification | |
| Manageability | Unmanaged |
| PoE | Yes |
| Switching Capacity | 16 Gbps |
| Transmission Method | Store-and-forward |
| What's in the Box | |
| Packet Contents | 1 x 8-Port Gigabit Desktop Switch with 7-Port PoE+(MS108GP), Power Adapter, Quick Installation Guide. |
| Warranty Information | |
| Warranty | 1 Year (Without Adapter) |
Description

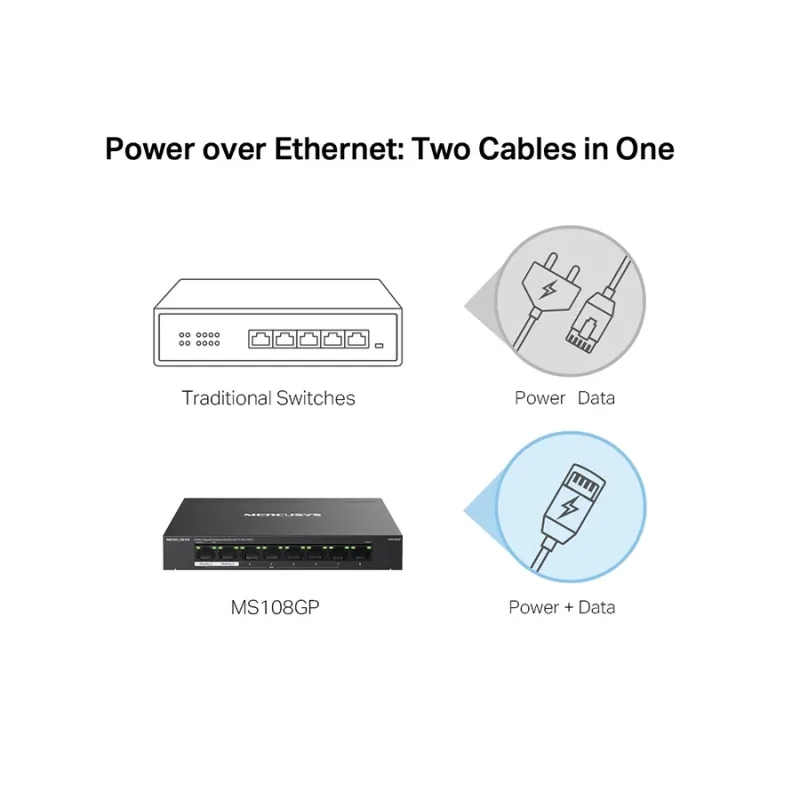

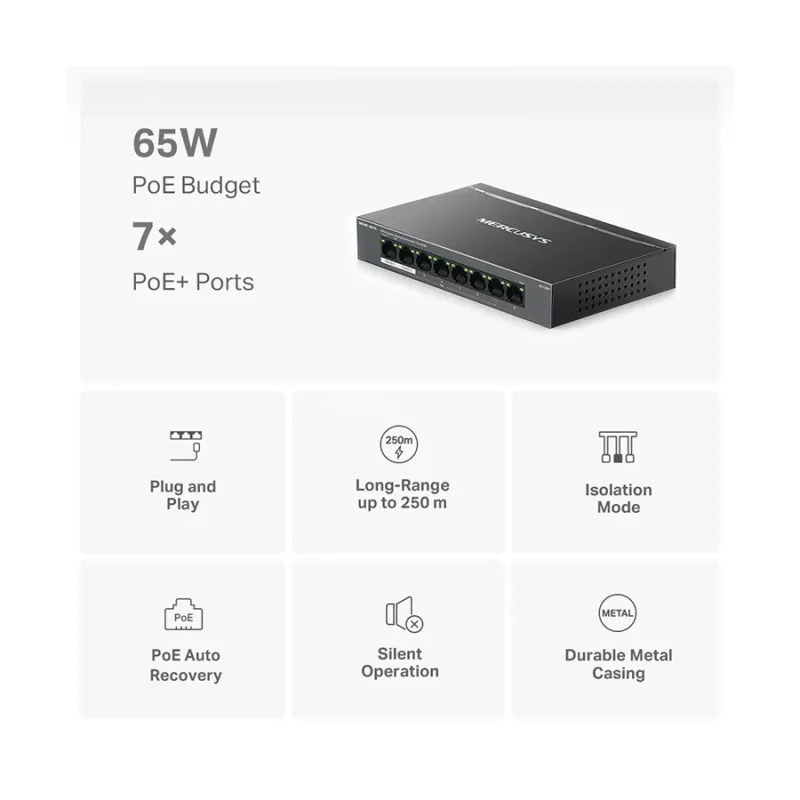

The Mercusys MS108GP is an 8-port unmanaged gigabit desktop switch featuring 7 PoE+ ports and 1 standard gigabit Ethernet port. Designed for efficient power and data delivery, this switch supports IEEE 802.3af/at PoE standards, providing up to 30W power per port and a total PoE budget of 65W, ideal for powering IP cameras, VoIP phones, wireless access points, and other PoE-enabled devices through a single cable.
All ports operate at full gigabit speeds (10/100/1000 Mbps), ensuring high-speed data transfer with support for jumbo frames up to 15 KB and a switching capacity of 16 Gbps for smooth, store-and-forward traffic management.

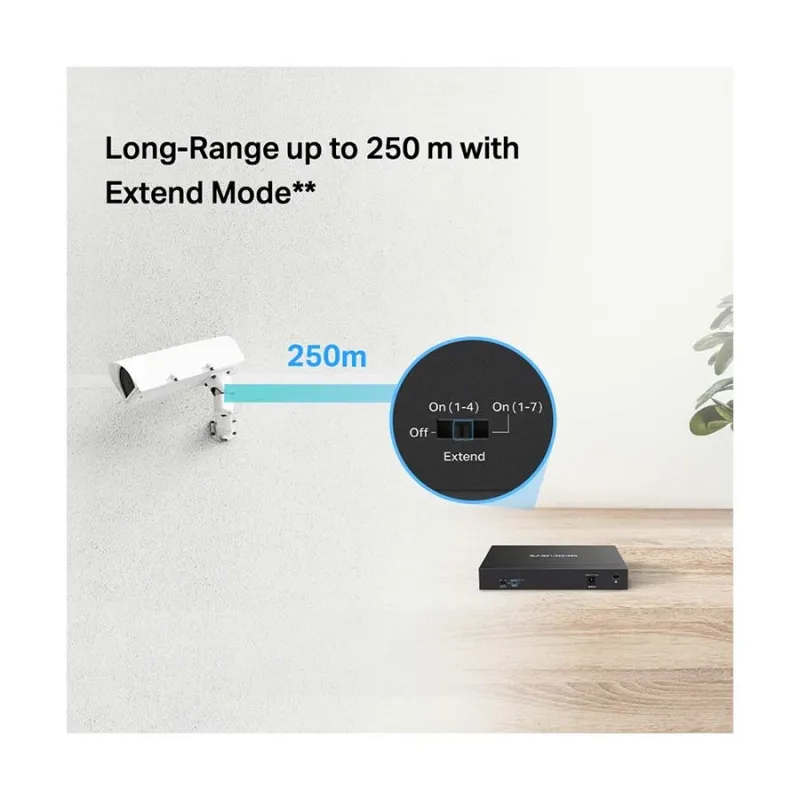

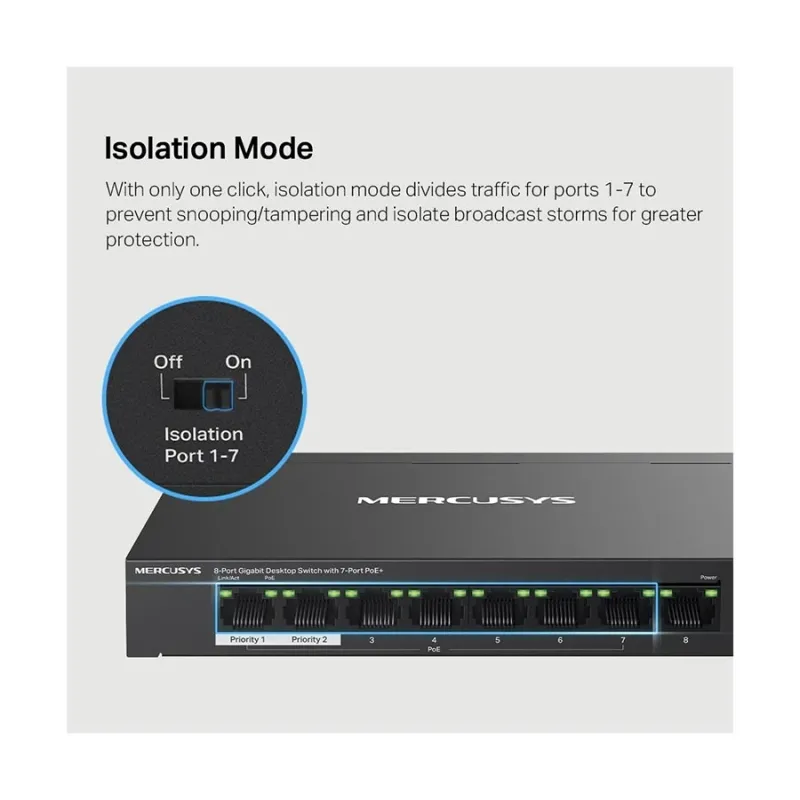

The MS108GP supports advanced features such as extended PoE transmission up to 250 meters with Extend Mode and an isolation mode to segment traffic on specific ports for enhanced security and network stability. It comes equipped with auto-negotiation and Auto MDI/MDIX, allowing for seamless network integration without manual configuration.
Built with a durable metal casing, this fanless switch provides silent operation while ensuring efficient heat dissipation for long-term reliability. Compact and versatile, it is designed for desktop placement or wall mounting, making it suitable for various networking environments.
The switch is powered by an external 53.5V/1.31A adapter and consumes approximately 5.07W when no devices are connected, increasing up to 77.33W when fully loaded with PoE devices. It operates within temperature ranges of 0 to 40°C and humidity levels from 10% to 90% non-condensing, with storage temperatures from -40 to 70°C.
The package includes the 8-Port Gigabit Desktop Switch with 7-Port PoE+ (MS108GP), power adapter, and quick installation guide, backed by a 1-year warranty (excluding the adapter).
