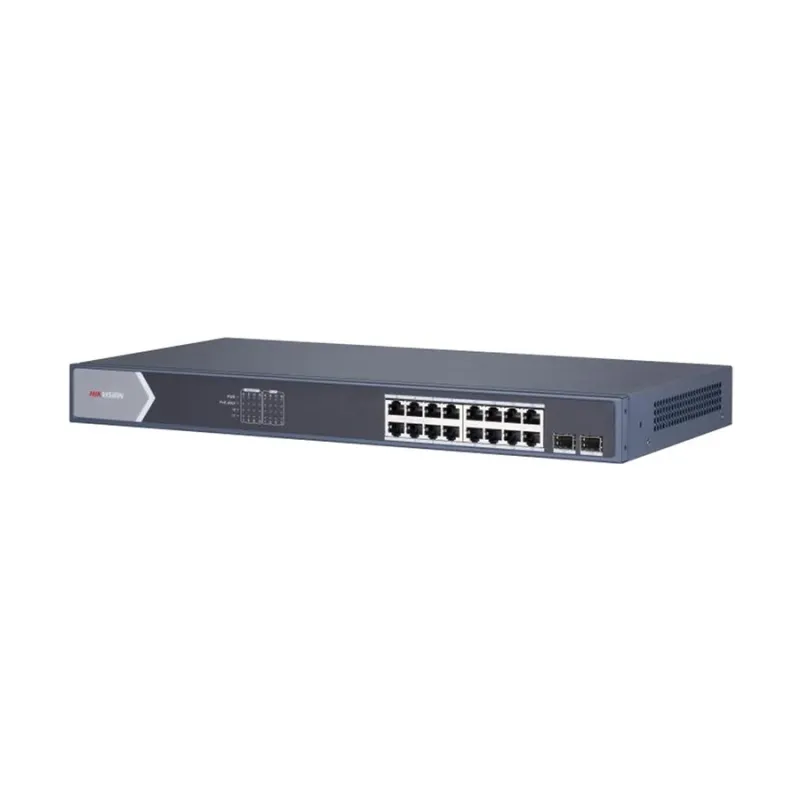

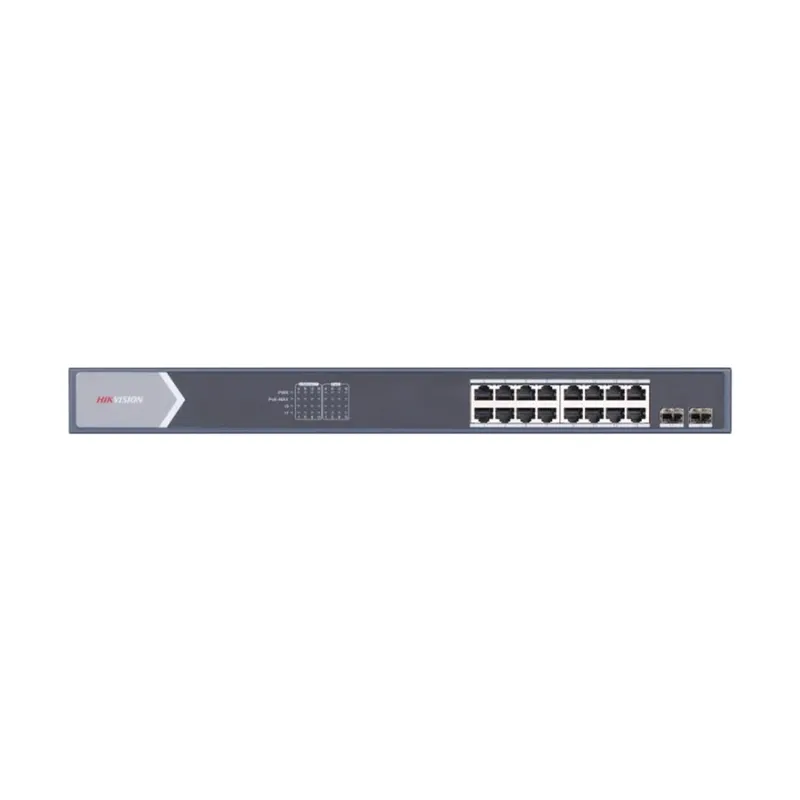

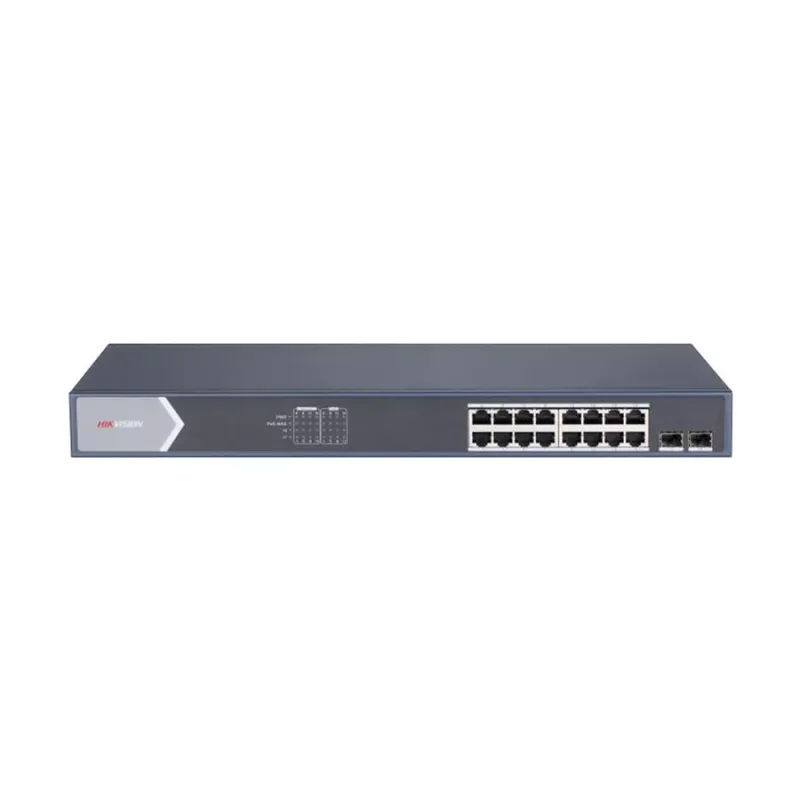

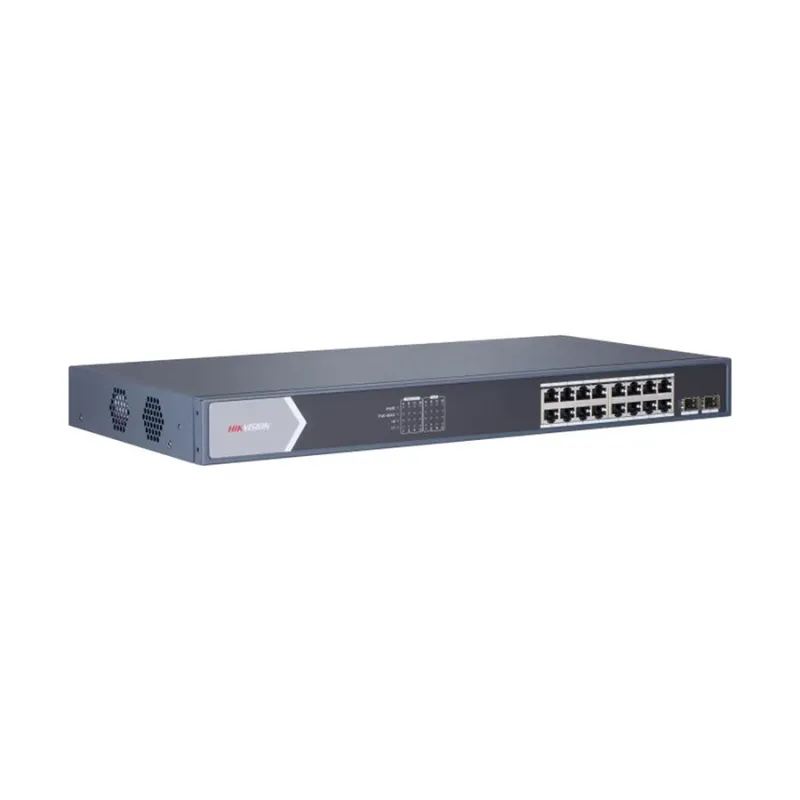

Hikvision DS-3E0518P-E/M 18 Port ( 16 Port 10/100/1000 PoE, 2 Port 10/100/1000 SFP Fiber Optic) Unmanaged PoE Switch
Key Features
- Type - Network Switch
- Number of Total Port - 18 Port
- PoE - Yes
- Manageability - Unmanaged
- Data Transfer Rate - 10/100/1000 Mbps
- Form Factor - Rackmount
Specification
| General | |
| Brand | Hikvision |
| Model | DS-3E0518P-E/M |
| Type | Network Switch |
| Key Features | |
| Interface | 16 x Gigabit PoE port, 2 x Gigabit SFP fiber optical port |
| Network & Connectivity | |
| Data Rate | 10/100/1000 Mbps |
| Network Standard | IEEE 802.3at/af standard, IEEE 802.3, IEEE 802.3u, and IEEE 802.3x |
| Ports & Connector | |
| Gigabit Port | 18 |
| PoE Port | 16 |
| SFP Port | 2 |
| Total Port | 18 Port |
| Power | |
| Power Supply | 100-240 VAC, 50/60 Hz, Max. 2.5 A |
| Power Consumption | 150W (Max.), 25W (Idle) |
| Physical Specification | |
| Color | Gray |
| Connector Type | 16 x Rj45 port, 2 x Gigabit SFP port |
| Form Factor | Rackmount |
| Material | Metal |
| Weight | 2.50 kg |
| Dimension | 440 x 44 x 220.8 mm |
| Technical Specification | |
| Manageability | Unmanaged |
| PoE | Yes |
| Transmission Method | Store-and-forward |
| Specialty | 6 KV surge protection for PoE ports, PoE power management, Gigabit network access, Wire-speed forwarding, Store-and-forward switching, Solid high-strength metal she |
| What's in the Box | |
| Packet Contents | Hikvision DS-3E0518P-E/M Switch, User Manual, Warranty Card |
| Warranty Information | |
| Warranty | 1 year |
Description
The Hikvision DS-3E0518P-E/M is a high-performance 18-port unmanaged Gigabit PoE switch designed for large-scale surveillance and network deployments. It features 16 Gigabit PoE ports and 2 Gigabit SFP fiber ports, delivering 10/100/1000 Mbps speeds with store-and-forward switching for stable, reliable data transmission. Supporting both IEEE 802.3af and IEEE 802.3at standards, it provides up to 30W per PoE port and a total PoE power budget of 125W, making it ideal for powering multiple IP cameras or other PoE-enabled devices.
Built with 6KV surge protection on PoE ports and advanced PoE power management, the switch ensures device safety and extends service life. It supports wire-speed forwarding for smooth, high-bandwidth performance and is housed in a durable gray metal rackmount chassis for professional installations. Measuring 440 × 44 × 220.8 mm and weighing 2.5 kg, it operates quietly and efficiently, with a max power consumption of 150W.
This model is built for reliable, high-capacity networking in demanding environments, backed by a 1-year warranty and compliance with multiple international safety and EMC standards.
