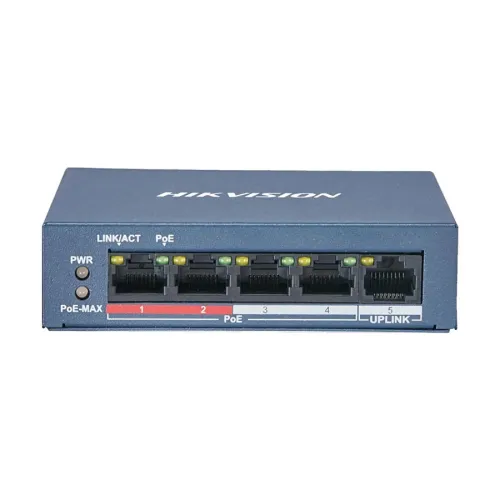

Hikvision DS-3E0105P-E/M(B) 5 Port Unmanaged PoE Switch
Key Features
- Type - Network Switch
- Number of Total Port - 5 Port
- PoE - Yes
- Manageability - Unmanaged
- Network Standards - IEEE 802.3, IEEE 802.3u, IEEE 802.3x
- Data Transfer Rate - 10/100 Mbps
- Form Factor - Desktop
Specification
| General | |
| Brand | Hikvision |
| Model | DS-3E0105P-E/M(B) |
| Type | Network Switch |
| Key Features | |
| Interface | 4 x 10/100 Mbps PoE ports, 1 x 10/100 Mbps RJ45 port |
| Network & Connectivity | |
| Data Rate | 10/100 Mbps |
| Network Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Ports & Connector | |
| PoE Port | 4 Port 10/100 Mbps PoE |
| Total Port | 5 Port |
| Power | |
| Power Supply | 48 VDC, 0.8 A |
| Power Consumption | 3W (Idle) |
| Physical Specification | |
| Color | Blue |
| Connector Type | 5 x 10/100Mbps The RJ45 port |
| Form Factor | Desktop |
| Material | Metal |
| Weight | 0.48 kg |
| Dimension | 105 x 27.6 x 83.1mm |
| Technical Specification | |
| Manageability | Unmanaged |
| PoE | Yes |
| Switching Capacity | 1 Gbps |
| Transmission Method | Store-and-forward |
| What's in the Box | |
| Packet Contents | Hikvision DS-3E0105P-E/M(B) Switch, User Manual, Warranty Card |
| Warranty Information | |
| Warranty | 1 Year (Without Adapter) |
Description
The Hikvision DS-3E0105P-E/M(B) is a durable, unmanaged 5-port Fast Ethernet PoE switch designed for surveillance and small network applications. It features 4 PoE ports (10/100 Mbps) and 1 uplink RJ45 port, supporting both IEEE 802.3af and IEEE 802.3at standards with a maximum PoE power budget of 35W and up to 30W per port. Engineered for video transmission, it includes VIP port prioritization to ensure critical data passes smoothly during network congestion.
With Intelligent PoE Management, the switch automatically adjusts power distribution when usage exceeds limits, extending device lifespan. In Extend Mode, it supports long-range PoE transmission up to 300 meters, while 4/8-core adaptive power supply minimizes power loss over cables. Built-in 6KV surge protection provides reliability in harsh environments.
The unit’s fanless blue metal housing offers quiet operation and excellent heat dissipation. It supports store-and-forward transmission, auto MDI/MDIX, MAC address auto-learning, and features a 2K MAC address table with a switching capacity of 1 Gbps. Compact (105 × 27.6 × 83.1 mm, 0.48 kg), it is ideal for desktop use and comes with a 1-year warranty (adapter not included).
