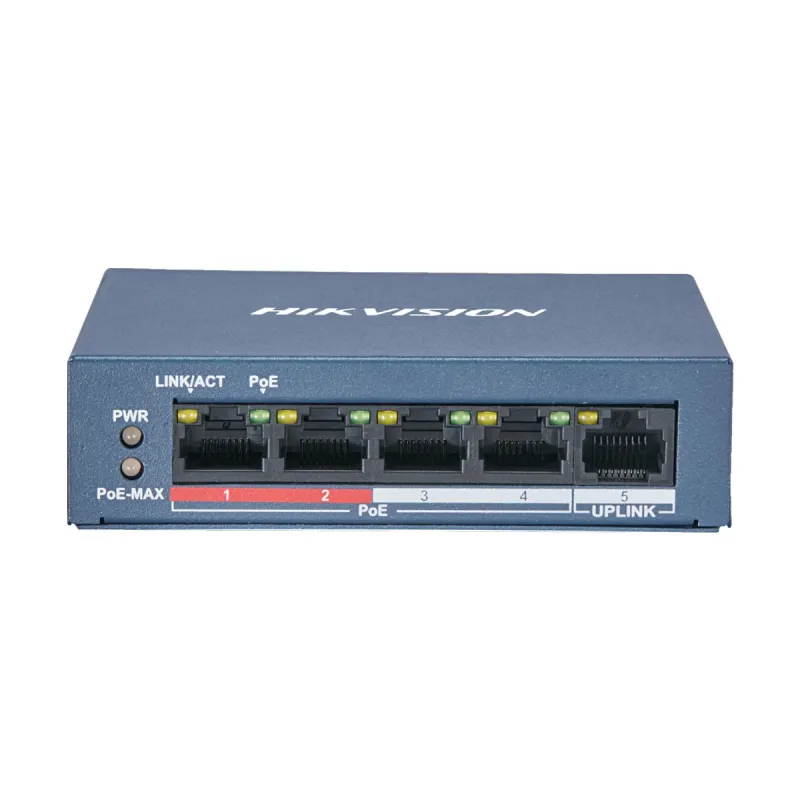

Hikvision DS-3E0105P-E/M 5 Port Unmanaged PoE Switch
Key Features
- Type - Network Switch
- Number of Total Port - 5 Port
- PoE - Yes
- Manageability - Unmanaged
- Network Standards - IEEE 802.3, IEEE 802.3u, IEEE 802.3x
- Data Transfer Rate - 10/100 Mbps
- Form Factor - Desktop/Wall Mounting
Found this item cheaper elsewhere?
Request Price Match & get bonus Star Points!
chevron_right
Specification
search
| General | |
| Brand | Hikvision |
| Model | DS-3E0105P-E/M |
| Type | Network Switch |
| Key Features | |
| Indicator | Link/Act LED indicators, PoE LED indicator, Power LED indicator |
| Interface | 5 x RJ45, 10/100 Base-T(X) |
| Network & Connectivity | |
| Data Rate | 10/100 Mbps |
| Network Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Ports & Connector | |
| PoE Port | 4 |
| Total Port | 5 Port |
| Power | |
| Power Supply | 48 VDC, 0.8 A |
| Power Consumption | 3 W (In Idle), < 38 W (Max.) |
| Physical Specification | |
| Color | Dark Blue |
| Form Factor | Desktop/Wall Mounting |
| Material | Metal Shell |
| Weight | 0.141 Kg |
| Dimension | 100 x 100 x 26mm |
| Technical Specification | |
| Manageability | Unmanaged |
| PoE | Yes |
| Switching Capacity | 1 Gbps |
| Transmission Method | Store-and-Forward |
| What's in the Box | |
| Packet Contents | Hikvision DS-3E0105P-E/M |
| Warranty Information | |
| Warranty | 1 Year (Without Adapter) |
help_outline
Notice an incorrect specification or missing detail?
Description
The Hikvision DS-3E0105P-E/M is a compact, unmanaged 5-port network switch designed for small-scale networking and surveillance setups. It includes 4 PoE ports compliant with the IEEE 802.3af standard, ideal for powering IP cameras or other PoE-enabled devices without separate power adapters. Delivering 10/100 Mbps data transfer rates with a 1 Gbps switching capacity, it uses store-and-forward transmission for reliable performance. In EXTEND mode (10 Mbps), the PoE ports support long-distance transmission up to 250 meters, making it suitable for larger installations.
Built with a durable dark blue metal shell and a fanless design, it operates silently while providing 6 kV lightning protection for all ports. Additional features include QoS support on ports 1 and 2, auto MDI/MDIX, MAC address auto-learning/aging, and smart cache optimization. It’s compact (100 x 100 x 26 mm, 0.141 kg) and supports both desktop and wall mounting. Power is supplied via 48 VDC, 0.8 A, with a maximum power consumption of less than 38 W. The package includes the switch only (adapter not included) and comes with a 1-year warranty.
Reviews (0)
Get specific details about this product from customers who own it.
Frequently Asked Questions (FAQs)
Common questions and answers regarding Hikvision DS-3E0105P-E/M 5 Port Unmanaged PoE Switch
What is the price of Hikvision DS-3E0105P-E/M 5 Port Unmanaged PoE Switch in Bangladesh? expand_more
The latest price of Hikvision DS-3E0105P-E/M 5 Port Unmanaged PoE Switch in Bangladesh is 2,900৳. You can purchase it at the best price from our website or visit any of our Skyland Computer outlets.
Is Hikvision DS-3E0105P-E/M 5 Port Unmanaged PoE Switch currently in stock at Skyland? expand_more
Yes, Hikvision DS-3E0105P-E/M 5 Port Unmanaged PoE Switch is currently In Stock at Skyland. You can order online for fast home delivery across Bangladesh or in-store pickup.
What warranty comes with Hikvision DS-3E0105P-E/M 5 Port Unmanaged PoE Switch? expand_more
Hikvision DS-3E0105P-E/M 5 Port Unmanaged PoE Switch comes with 1 Year warranty. Skyland Computer ensures 100% genuine products with official service and warranty support.
