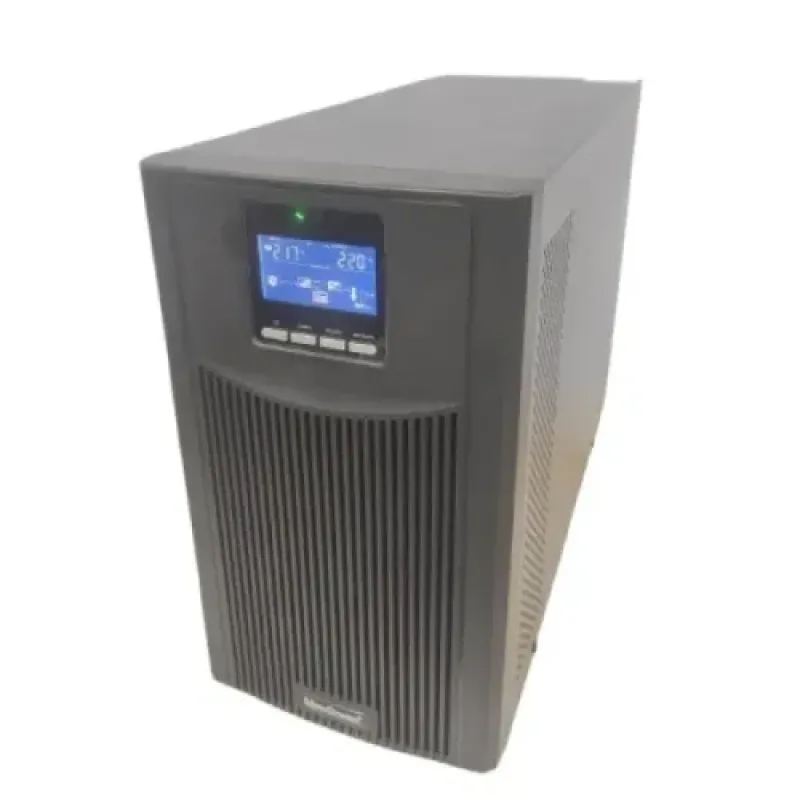

MaxGreen MGOE-W2KS 2KVA Standard Backup Online UPS
Key Features
- Capacity: 2000VA
- Ranged Voltage: 120VAC-300VAC
- Output Voltage: 220/230/240±1%
- Frequency: 45-66Hz
Specification
| General | |
| Brand | MaxGreen |
| Model | MGOE-W2KS |
| Key Features | |
| Alarm | Battery low-voltage, mains abnormal, overload, UPS fault, over temperature protection |
| Input | |
| Frequency | 45～66 |
| Power Factor | 1 |
| Voltage Range | 120VAC～300VAC |
| Main Features | |
| Battery | 6*7Ah 12V/External |
| Capacity | 2000VA |
| Frequency (Battery Mode) | 50/60±0.05%（battery mode） |
| Input Voltage | 120VAC～300VAC |
| Noise Level | <50(within 1 meter) |
| Output Voltage | 220/230/240±1% |
| Output | |
| Backup Time | Normally 15-30 mins/Long time need to depend on demands |
| Transfer Time | 00 |
| Type of Wave | Pure Sine wave |
| Voltage Range | 220/230/240±1% |
| Warranty Information | |
| Warranty | 1 Year Warranty (UPS and Battery). Under the following conditions, the warranty would not be provided: • UPS burning due to thunder, abnormal overload, insect entrance and others. • If ambient temperature should not be maintained at 20 to 26 degrees Celsius with proper dehumidification. (24/7) • If the product is placed in a dusty and damp place. • In the absence of Generator connectivity Without proper battery charge, the warranty will be void. • Battery swelling and overcharging due to the wrong system voltage setting of the UPS. |
Description
MaxGreen UPS series, include active input PFC rectifier (Power Factor Corrector) and make use of the advantages of PWM technology with IGBT to obtain equipment with high technology features. They resolve mains electricity problems without resorting to the use of the battery in most cases, thereby increasing its service life. They are ideal for supplying critical systems of up to 2kVA that require high reliability and quality supply with low operating and maintenance costs. Data is provided locally through a mimic panel with LEDs and LCDs. The communications interface, together with its powerful software, allows users to monitor the status of the unit and provides information on its environment.
