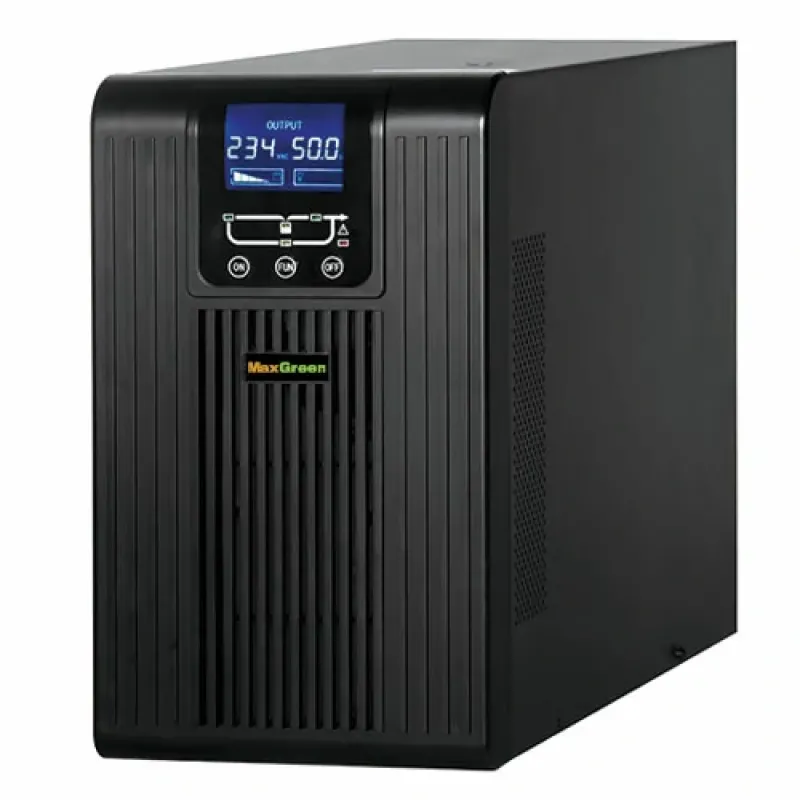

MaxGreen MGO-W10KS 10 KVA Standard Backup High-Frequency Online UPS
Key Features
- Model: MGO-W10KS
- 220VAC single-phase three-wire
- Input frequency range: 45Hz-65Hz
- Battery capacity: 12V 7Ah
- Rated Power: 10KVA/9.0KW
Specification
| General | |
| Brand | MaxGreen |
| Model | MGO-W10KS |
| Key Features | |
| Frequency (Battery Mode) | Frequency precision 0.25% |
| Rectifier Type | IGBT rectifier |
| Noise | <55dB |
| Input | |
| Frequency | 45Hz-65Hz |
| Power Factor | >=0.99 for single phase |
| Voltage | Single-phase 120Vac-288Vac |
| Output | |
| Backup Time | Standard back up (15-30)min |
| Rated power | 10KVA/9.0KW |
| Transfer Time | 00 |
| Type of Wave | Pure Sinewave |
| Voltage | Single-phase 220Vac |
| Power | |
| Battery Type | Battery Capacity: 12V 7Ah Battery Qty: 16 units Battery Cabinet: Internal Battery Charging capability: >6h for 90% re-charging of the standard model |
| Capacity | 10 KVA |
| Warranty Information | |
| Warranty | 01 Year |
Description
The MaxGreen MGO-W10KS UPS has a 10KVA/9.0KW Rated Power that protects it from any irregularity in the mains power network when it is in use. It features 16 units of a 12V 7Ah battery. This UPS: >6 hours for 90% of the ordinary model's recharge. With On-Line Double Conversion technology, the inverter stage with galvanic isolation supplies the supply voltage to loads in each scenario. A voltage and current regulated signal that is free of harmonics, noise, and interferences are always accessible thanks to advanced PWM technology. Locally, the system status is communicated through LED signaling and an LCD panel with several menus. The unit's robust software allows for remote management of information. The MaxGreen MGO-W10KS 10 KVA Online UPS comes with a 01-year warranty.
