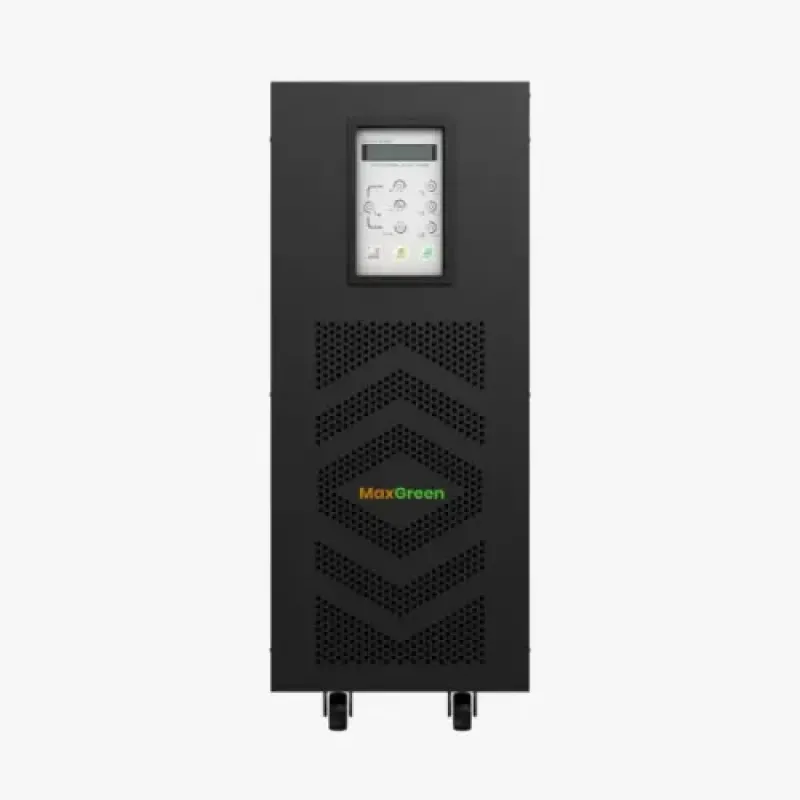

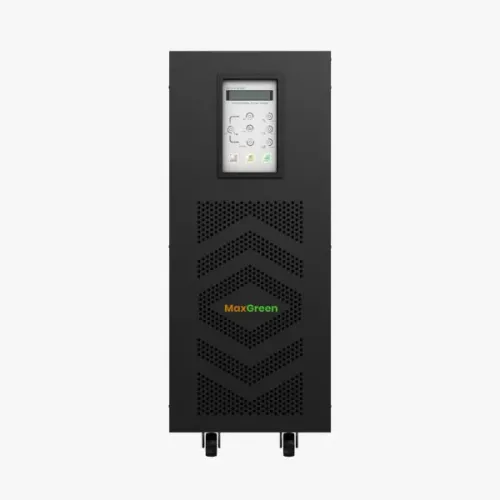

MaxGreen B10KS/L 10kVA Low-Frequency Online UPS

Name: MaxGreen B10KS/L 10kVA Low-Frequency Online UPS
Brand: MaxGreen
SKU: B10KS/L
Price: 175000.00 BDT
Availability: InStock

Price: 175,000৳

Regular Price: 181,000৳

Status: In Stock

Brand: MaxGreen

Key Features

Model: B10KS/L 10kVA
LCD Display
Capacity: 10KVA
Parallel function: Yes
Battery voltage: 192 Vdc

View More Info

Payment Options

175,000৳ 181,000৳

Cash Discount Price

Online / Cash Payment

Special Price: 175,000৳

View Banks EMI Plans

Specification

General
Brand	MaxGreen
Model	B10KS/L
Display
Display Type	LED display work status and fault indicator CD display single phase input voltage, input frequency, single-phase output voltage, load, battery voltage, etc
Key Features
Alarm	Battery low-voltage, mains abnormal, overload, UPS fault, over temperature protection
Frequency (Battery Mode)	45～66 Hz Automatically select synchronization range according to grid frequency
Noise	<60(within 1 meter)
Mechanical Design
Load Capacity	110%~129% full load keep 10min 130%~150% load keep 60s
Output
Backup Time	Standard time is 10min/ Long backup time can be extended freely
Voltage	165～275 Vac
Power
Battery Type	16*9Ah 12V/External
Capacity	10KVA
Warranty Information
Warranty	01 Year

Description

The MaxGreen series UPS guarantee total protection for powers ranging from 10kVA against any anomaly in the mains electricity network during their operation. The MaxGreen B10KS/L 10kVA Online UPS includes active input PFC rectifier (Power Factor Corrector) and makes use of the advantages of PWM technology with IGTBs to obtain equipment with high technology features. With On-Line Double Conversion technology, the supply voltage to loads is provided in each case via the inverter stage with galvanic isolation. Advanced PWM Technology allows a voltage and current adjusted signal to be available at each moment in time, free of harmonics, noises, and interferences. Information on the status of the system is presented locally by means of LED signaling and an LCD screen with different menus. Information on the unit can also be managed remotely through its powerful software.
