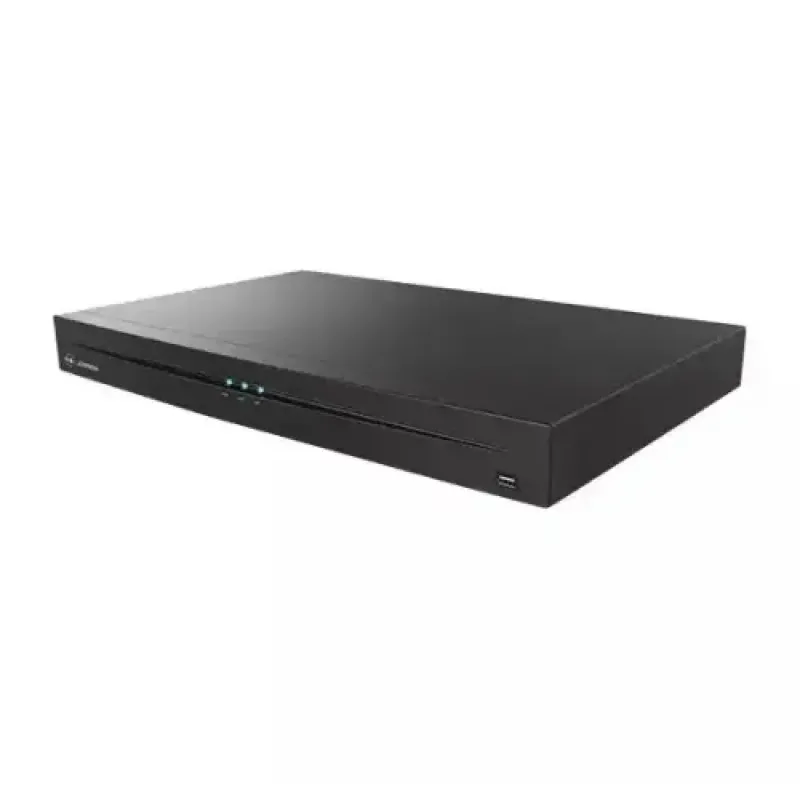

Jovision JVS-ND7932-HV 32CH H.265 NVR
Key Features
- Support 4K output, 32Ch 5.0Megapixel IP Cameras
- Support 2CH 5MP / 3CH 4MP / 4CH 3MP / 4CH 2MP playback
- Support audio input and output
- Two SATA Support, up to 8TB each
Specification
| Audio and Video | |
| IP Camera Input | 32 Channel |
| Two-Way Talk | 1CH Input,1 Channel Output, RCA; Audio output support HDMI |
| Component Environment | |
| Storage Conditions | up to 8TB |
| General | |
| Brand | Jovision |
| Model | JVS-ND7932-HV |
| Playback And Backup | |
| Backup Mode | FAT32 USB Device/Network |
| Search Mode | Channel number / recording type / date |
| Sync Playback | 2ch 5.0MP, 3ch 4.0MP, 4ch 3.0MP,4ch 1080P |
| Recording Features | |
| Playback Function | Day View, Hour View, Back Step, Rewind, Pause, Play, Fast Forward, Slow, Step, Full Screen, Snap, Sound On/Off, Zoom |
| Record Mode | Manual, Schedule, MD |
| Resolution | 32Ch 5.0MP/4.0MP/1080P/960P/720P |
| Compression | H.265/H.264 |
| Video Detection And Alarm | |
| Trigger Event | Recording, Snapshot, PTZ, Voice, E-mail, Client, Buzzer |
| Video Detection | Motion Detection, No Video Detection |
| Display | |
| Decoding Capacity | 32ch@ 5.0MP4.0MP/1080P/960P/720P 25fps |
| OSD | Camera Name & Time, Recording, Alarm Detecting, Remote connection, Volume, Channel Number |
| Resolution | HDMI: 3840×2160,1920×1080,2560×1440,1440×900,1280×1024,1280×720,1024×768 VGA: 1920×1080,1440×900,1280×1024,1280×720,1024×768 |
| Interface | 1 HDMI, 1 VGA |
| Multi-Screen Display | 1/4/5/6…32/33/34/35/36 |
| Storage | |
| eSATA | 2 SATA interfaces |
| Network & Connectivity | |
| Interface | 1 RJ-45 port (10/100Mbps) |
| Network Function | TCP/IP, DHCP, UDP, SMTP, NTP |
| Smart Phone | iPhone, Android |
| Power | |
| Power Supply | DC 12V |
| Power Consumption | ≤ 15 W (Without HDD) |
| Physical Specification | |
| Dimensions | 360X45X264mm |
| Weight | Net Weight ≤ 2.0kg (Without HDD) |
| Warranty Information | |
| Manufacturing Warranty | 1 year |
Description
The Jovision JVS-ND7932-HV is a high-performance 32-channel H.265 NVR designed to meet advanced video and audio surveillance needs. It boasts a plethora of features, including support for up to 32 IP camera inputs and audio input/output capabilities. The Jovision JVS-ND7932-HV NVR offers versatile display options through HDMI and VGA interfaces, with various resolution choices for optimal viewing. Its powerful decoding capacity allows smooth playback of up to 32 channels at 5.0MP, 4.0MP, 1080P, 960P, or 720P and supports multiple-screen display configurations. It features comprehensive recording options such as manual, scheduled, and motion detection-triggered recording. The Jovision JVS-ND7932-HV NVR's advanced video detection and alarm capabilities ensure efficient security monitoring, offering triggered events like recording, snapshot, and email alerts. Playback and backup functionalities include synchronous playback, various search modes, and versatile playback controls. The network capabilities support TCP/IP, DHCP, UDP, SMTP, and NTP protocols, allowing remote monitoring through smartphone apps for both iOS and Android. With ample storage capacity of up to 8TB across its two SATA interfaces, the JVS-ND7932-HV is ready to handle extensive surveillance data
