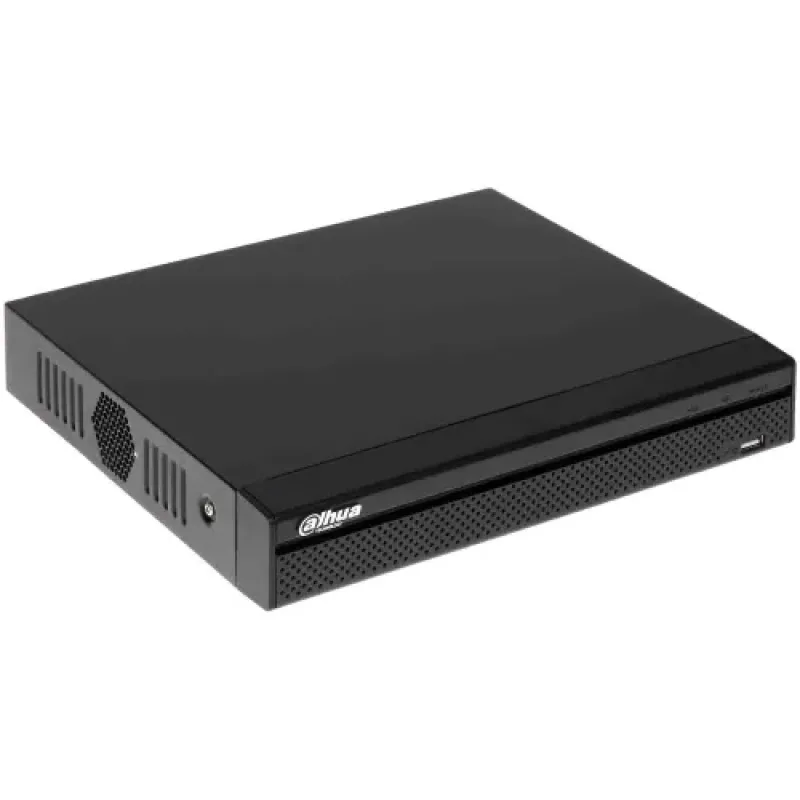

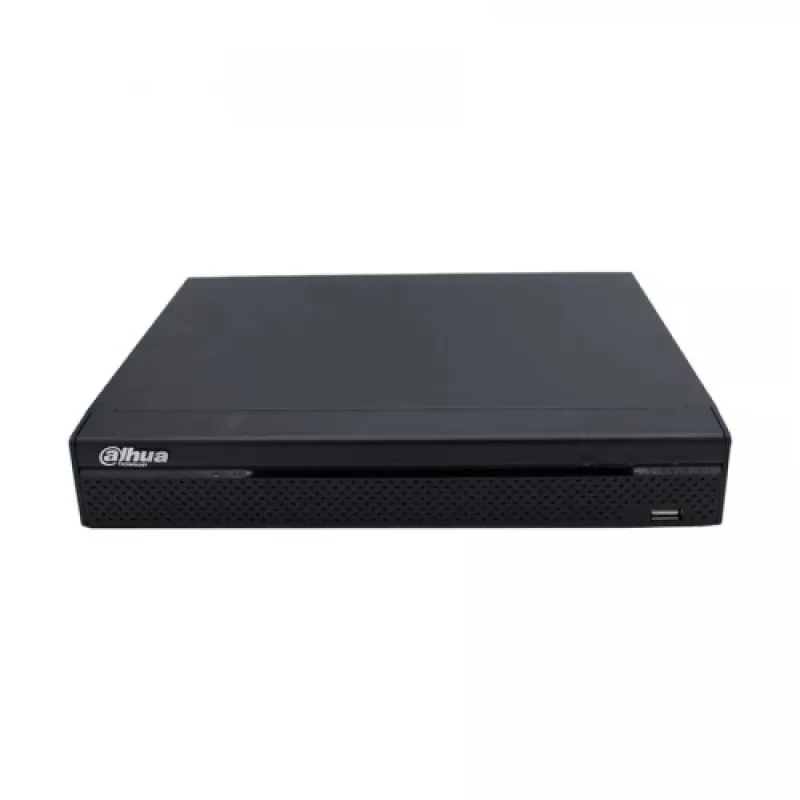

Dahua NVR1108HS-S3/H 8 Channel Network Video Recorder NVR
Key Features
- 8 channel max, up to 8MP resolution
- 80Mbps record rate, H.265/H.264
- VGA/HDMI output 1080P
- 1 SATA port, up to 8 TB HDD
Specification
| General | |
| Brand | Dahua |
| Model | NVR1108HS-S3/H |
| Processor | |
| Processor | Embedded Processor |
| Recording Features | |
| Playback Function | 1. Play, pause, stop, fast forward, fast backward, rewind, play by frame 2. Full screen, backup (cut/file), partially enlarge, audio on/off |
| Record Mode | Priority of record mode: Manual recording > alarm recording > motion detection recording > timed recording |
| Resolution | 1 VGA/1 HDMI simultaneous video output, maximum resolution 1080P |
| Sync Playback | Up to 8 channels playback |
| Compression | Video: Smart H.265+/H.265/Smart H.264+/H.264 Audio: PCM/G711A/G711U/G726/AAC |
| Decoding Capacity | 1–ch@8MP (30FPS) or 1–ch@5MP (30FPS) or 2–ch@4MP (30FPS) or 2–ch@3MP (30FPS) or 4– ch@1080P(30FPS)8–ch@720P(30FPS) |
| Display | |
| Interface | Web/operating in local GUI |
| Display Resolution | 8MP/5MP/4MP/3MP/1080P/720P/D1/CIF |
| Multi-Screen Display | 1 / 4 / 8 |
| Software | |
| Operating System | Embedded LINUX |
| Security | |
| Alarm Input | Yes |
| Video Detection | Yes |
| Storage | |
| Storage | 1 SATA 2.0 port, up to 8 TB for a single HDD. The maximum HDD capacity varies with environment temperature |
| Network & Connectivity | |
| Connectivity | 1 RJ–45 port (10/100 Mbps) IDMSS (iOS), GDMSS (Android) |
| Ports & Slots | |
| USB Port | 1 front USB 2.0 port, 1 rear USB 2.0 port |
| Power | |
| Power Supply | DC12V, 1.5A |
| Power Consumption | The total output of NVR is ≤ 10W (without HDD) |
| Temperature | |
| Operating Temperature | Storage Temperature 0°C to 40°C (+32°F to +104°F) Storage Humidity 30%~85% |
| Physical Specification | |
| Weight | 1.38 kg (3.04 lb) |
| Dimension | Product Dimensions: 260 mm×225 mm×47.6 mm (W × L × H) Box Dimensions: 87 mm×331 mm×312 mm (W × L × H) |
| Warranty Information | |
| Warranty | 01-Year Warranty |
Description
The Dahua NVR1108HS-S3/H 8 Channel Network Video Recorder (NVR) features H.265/H.264 codec decoding, a maximum input bandwidth of 80Mbps, up to 8Mp resolution preview and playback, and HDMI/VGA simultaneous video 1080P output. Smart H.265+ is an efficient H.265 codec implementation that employs a scene-adaptive encoding technique. The Dahua Network Video Recorder uses a flexible multi-frame reference structure and clever noise reduction to produce high-quality video while minimizing network strain. When compared to regular H.265 video compression, Smart H.265+ technology reduces bit rate and storage requirements by up to 85%. Dahua NVR1108HS-S3/H 8 Channel Compact Video Recorder, Dahua's Lite Series Recorder supports the AP feature and automatically recognizes and connects to Dahua cameras. It contains two antennas that create strong signals combined, as well as IEEE 802.11 b/g/n (2.4G Hz) Wi-Fi, allowing it to cover a larger area. This NVR also allows access to IP cameras, making installation easier. The Dahua NVR features an open architecture that supports multi-user access and is compatible with ONVIF and RTSP protocol. The Dahua NVR1108HS-S3/H 8 Channel Network Video Recorder (NVR) has 01-year warranty.
