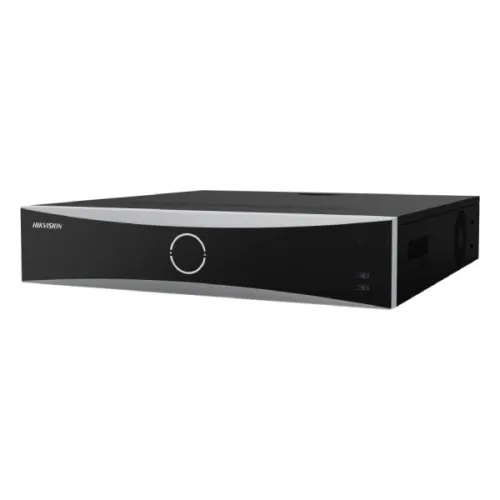

Hikvision DS-8664NXI-I8/S 64 Channel 2U AcuSense 4K NVR
Key Features
- Camera Inputs: Up to 64-Channel IP Camera
- Up to 8-ch IP Speakers can be Connected
- 8x SATA Interfaces, Up to 16 TB Capacity for Each Disk
- Intelligent Analytics Based on Deep Learning Algorithm
Specification
| Audio and Video | |
| IP Camera Input | Up to 64-ch IP camera inputs |
| Two-Way Talk | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Auxiliary Interface | |
| USB | Front panel: 2 × USB 2.0 Rear panel: 2 × USB 3.0 |
| Component Environment | |
| Operational Conditions | -10 °C to 55 °C (14 °F to 131 °F) |
| General | |
| Brand | Hikvision |
| Model | DS-8664NXI-I8/S |
| Playback And Backup | |
| Search Mode | Face picture comparison, human face capture, face picture search |
| Sync Playback | 16-ch |
| Recording Features | |
| Record Rate | Incoming Bandwidth: 384 Mbps Outgoing Bandwidth: 256 Mbps |
| Resolution | 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF *The NVR supports up to 4-ch 32 MP/24 MP IP video inputs. |
| Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM |
| Video Detection And Alarm | |
| Alarm Input | 16/916/9 |
| Video Detection | 4-ch human face capture (HD network camera, up to 8 MP, H.264/H.265) |
| Display | |
| Decoding Capacity | Enable AI by NVR: 20-ch@1080p (30 fps) Disable AI by NVR: 32-ch@1080p (30 fps) |
| Resolution | HDMI 1 Output 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz HDMI 2 Output 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz VGA 1 Output 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz VGA 2 Output 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz Video Output Mode HDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output,HDMI1/HDMI2 independent output |
| Storage | |
| eSATA | 1 eSATA interface |
| Internal HDD | Up to 16 TB capacity for each disk |
| Connectivity | |
| RS232 | 1x RS-232 |
| Network & Connectivity | |
| Ethernet Port | 1 RS-485 (full-duplex), 1 RS-232 |
| Interface | Serial Interface: 1 RS-485 (full-duplex), 1 RS-232 SATA: 8 SATA interfaces Capacity: Up to 16 TB capacity for each disk eSATA: 1 eSATA interface Alarm In/Out: 16/9 USB Interface: Front panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0 |
| Power | |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Power Consumption | ≤ 30 W (without HDD) |
| Physical Specification | |
| Dimensions | 440 × 457 × 94 mm ( 17.4"× 18.0" × 3.7") |
| Weight | Net Weight ≤ 7.1 kg (without HDD, 15.7 lb.) |
| Warranty Information | |
| Manufacturing Warranty | 1 Year |
Description
Reviews (0)
Get specific details about this product from customers who own it.
Frequently Asked Questions (FAQs)
Common questions and answers regarding Hikvision DS-8664NXI-I8/S 64 Channel 2U AcuSense 4K NVR
What is the price of Hikvision DS-8664NXI-I8/S 64 Channel 2U AcuSense 4K NVR in Bangladesh? expand_more
The latest price of Hikvision DS-8664NXI-I8/S 64 Channel 2U AcuSense 4K NVR in Bangladesh is 71,500৳. You can purchase it at the best price from our website or visit any of our Skyland Computer outlets.
Is Hikvision DS-8664NXI-I8/S 64 Channel 2U AcuSense 4K NVR currently in stock at Skyland? expand_more
Yes, Hikvision DS-8664NXI-I8/S 64 Channel 2U AcuSense 4K NVR is currently In Stock at Skyland. You can order online for fast home delivery across Bangladesh or in-store pickup.
What warranty comes with Hikvision DS-8664NXI-I8/S 64 Channel 2U AcuSense 4K NVR? expand_more
Hikvision DS-8664NXI-I8/S 64 Channel 2U AcuSense 4K NVR comes with 1 Year warranty. Skyland Computer ensures 100% genuine products with official service and warranty support.
