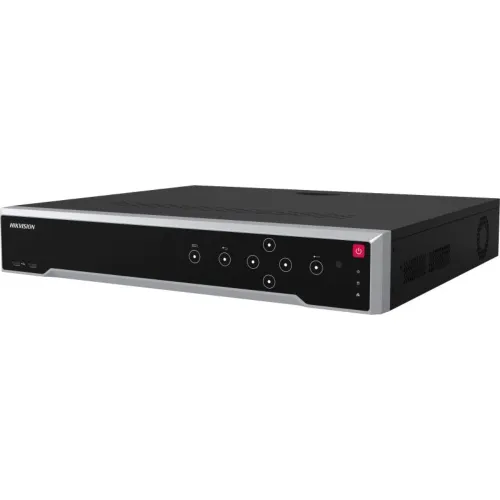

Hikvision DS-7764NI-M4 64 Channel 4HDD 8K NVR

Hikvision DS-7764NI-M4 64 Channel 4HDD 8K NVR
  • Price: 51,700৳
  • Regular Price: 55,000৳
  • Stock: In Stock
  • Brand: Hikvision
  • Model: DS-7764NI-M4

Key Features

  • Camera Inputs: Up to 64-Channel IP camera
  • Resolution Support: up to 32 MP (per channel)
  • Incoming/Outgoing Bandwidth: 400 Mbps
  • Ports: 2x HDMI and 1x VGA, 8K or dual 4K video outputs
View More Info

Payment Options

51,700৳55,000৳

Cash Discount Price

Online / Cash Payment
/month

Regular Price:

Compare Bank EMI Options

Specifications

Audio and Video
IP Camera Input 64-ch Up to 32 MP resolution * After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
Two-Way Talk 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Auxiliary Interface
USB Front panel: 2 × USB 2.0 Rear panel: 1 × USB 3.0
Component Environment
Operational Conditions -10 °C to 55 °C (14 °F to 131 °F)
General
Brand Hikvision
Model DS-7764NI-M4
Playback And Backup
Sync Playback 16-ch
Recording Features
Resolution 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF *After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
Compression Audio Compression G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
Video Detection And Alarm
Alarm Input 16/9
Display
Decoding Capacity 2-ch@32 MP (30 fps)/2-ch@24 MP (30 fps)/4-ch@12 MP (20 fps)/8-ch@8 MP (25 fps)/16-ch@4 MP (30 fps)/32-ch@1080p (30 fps)
Resolution HDMI 1: Output 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI 2: Output 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p. VGA: Output 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Interface HDMI1/VGA simultaneous output, HDMI1/HDMI2 independent output
Storage
eSATA Yes
Internal HDD Up to 16 TB capacity for each HDD
Network & Connectivity
Ethernet Port 2x RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
Interface ESATA: 1x eSATA interface SATA: 4x SATA interfaces Capacity: Up to 16 TB capacity for each HDD Serial Interface: 2x RS-485 (half-duplex), 1 RS-232 Alarm In/Out: 16/9 USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 Ctrl 12V: Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. *The Ctrl 12V power is controlled by alarm output 9. DC 12V: 12 VDC, 1 A power output
Power
Power Supply 100 to 240 VAC, 50 to 60 Hz
Power Consumption ≤ 15 W (without HDD)
Physical Specification
Dimensions 445 × 400 × 75 mm ( 17.5"× 15.7" × 3.0")
Weight Net Weight ≤ 5 kg (without HDD, 11 lb.)
Warranty Information
Manufacturing Warranty 1 Year

Description

Hikvision DS-7764NI-M4 64 Channel 4HDD 8K NVR

The Hikvision DS-7764NI-M4 64 Channel 4HDD 8K NVR is a powerhouse for complete video surveillance systems, with sophisticated features and flexible connectivity options. It guarantees outstanding clarity and coverage for large-scale environment monitoring, with the capability for up to 64 IP video inputs and resolutions of up to 32 MP. Its remarkable 400 Mbps incoming and outgoing capacity makes for seamless playback and data transfer. With two HDMI outputs, one of which may be used for 8K resolution, and a VGA output, the Hikvision DS-7764NI-M4 64 Channel 8K Network Video Recorder provides a range of configurable display combinations that can be tailored to various monitoring arrangements. The Hikvision 64 Channel 8K NVR ensures effective compression and storage of high-quality video footage by supporting many decoding formats, such as H.265+, H.265, H.264+, and H.264. It allows for thorough video examination and analysis with synchronous playback for 16 channels and decoding capacity supporting up to 2 channels at 32 MP and 2 channels at 8 MP concurrently. The network connectivity of the Hikvision DS-7764NI-M4 64 Channel 4HDD 8K NVR is flawless; it supports up to 128 remote connections and is compatible with a number of protocols, including TCP/IP, RTSP, SMTP, and SNMP. Its sturdy design features support for RAID, four SATA connections with a maximum capacity of 16 TB for HDDs, and other auxiliary interfaces for increased expandability and flexibility, including eSATA, RS-485, and USB ports. For demanding surveillance applications, the Hikvision DS-7764NI-M4 64 Channel NVR is a great option because of its wide operating temperature range, 19-inch rack-mounted chassis, dependable performance, and compliance with industry standards.

Write a review

Please login or register to review

What is the price of Hikvision DS-7764NI-M4 64 Channel 4HDD 8K NVR in Bangladesh?

The latest price of Hikvision DS-7764NI-M4 64 Channel 4HDD 8K NVR in Bangladesh is 51,700৳. You can buy the Hikvision DS-7764NI-M4 64 Channel 4HDD 8K NVR at the best price from our website or visit any of our showrooms.
