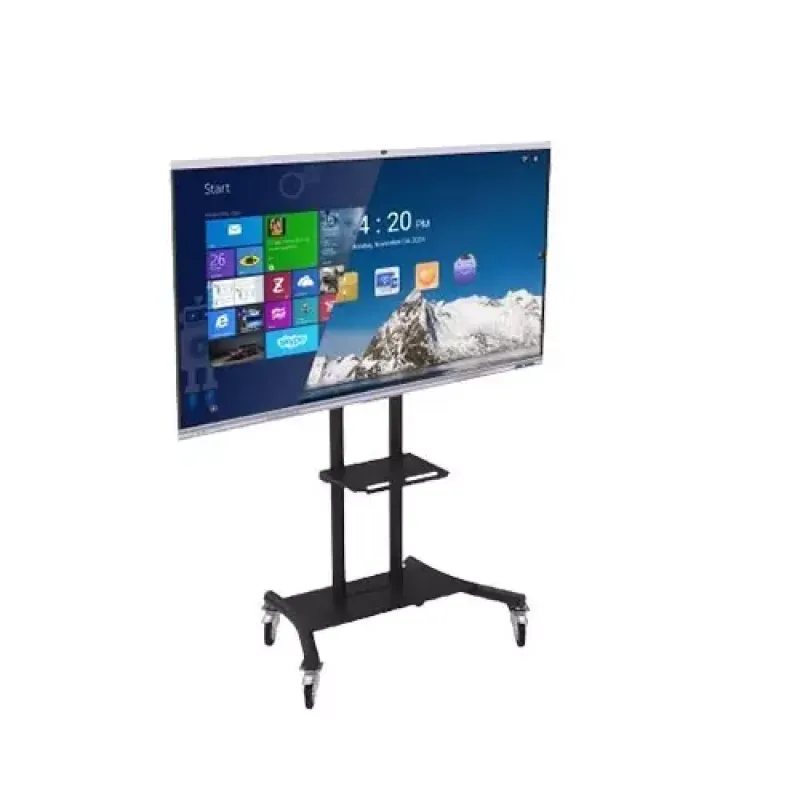

WALTON CiNEXA WSIZ86 86 Inch 4K UHD Interactive Display With Camera and Stand
Key Features
- Display Size: 86 Inch
- Resolution: 3840x2160 Pixels
- Touch Points: 20 Points Android
- OS: Android 13
Specification
| General | |
| Brand | WALTON |
| Model | CINEXA WSIZ86 |
| Processor | |
| Number Of Cores | 4 x A73(Quad core A73)+4 x A53(Quad c |
| Processor | Arm Architecture: Cortex A73+A53 |
| Memory | |
| Memory | 8GB |
| Type | DDR4 |
| Graphics | |
| Graphics | MaliG52 MP8 |
| Display Features | |
| Display Size | 86 Inch |
| Panel Type | IPS |
| Refresh Rate | 60Hz |
| Resolution | 3840x2160 Pixels |
| Response Time | 8ms Typical |
| Viewing Angle | 1895.04(H)x1065.96(V) |
| Contrast Ratio | 1200:1 Typical |
| Pixel pitch(MM) | 0.4935(H)x0.4935(V) |
| Color Gamut | 72% NTSC Typical |
| Software | |
| Operating System | Android 13 |
| Audio & Microphone | |
| Audio Input | Yes |
| Audio Output | Yes |
| Built-in Speaker | 16W*2 Speaker+ 15W Subwoofer |
| Mic | Array Quantity: 8-mic Pick up Area: 8m AEC: Supported AGC: Supported Speech enhancement: Supported |
| Display Details | |
| Brightness (typical) | 400cd/m² |
| Display Colors | 1.07B |
| Network & Connectivity | |
| Bluetooth | 5.3 |
| Frequency | 2.4GHz/5GHz |
| WiFi | Wi-Fi 6 (802.11ax) |
| Operating System | |
| Chipset | Amlogic A311D2 |
| ROM | 128GB eMMC Flash |
| Ports & Slots | |
| Interface | Front: Type -C: x1 Public USB(USB3.0 TYPE A): x2 Rear: HDMI IN: x2 DP IN: x1 Type-C: x1 VGA IN: x1 AUDIO IN: x1 LAN: x2 USB2.0: x1 USB3.0: x2 TOUCH: x3 MIC IN: x1 SPDIF: x1 RS232 IN: x1 HDMI OUT: x1 AUDIO OUT: x1 |
| Power | |
| Power Requirement | AC100V~240V, 50-60Hz |
| Power Consumption | Without OPS: 460W Standby (Watt): < 0.5 |
| Physical Specification | |
| Accessories | Remote Control: x1 Touch pen: x2 3m power cable: x1 3m USB A-B cable : x1 3m HDMI cable: x1 User manual: x1 |
| Dimension | 1961.8mm x 105.6mm x 1207.7mm |
| Other Features | |
| Other Features | Touch: Sensing Type: Infrared Touch Frame Surface Protection: 3.2mm Toughened Glass with Antiglare, Antifinger, Anti Biosis glass Infrared Touch: 20 Points Android Touch Accuracy: ±1mm Response Time: ≤10ms Backlight -Direct LED |
| Warranty Information | |
| Warranty | 1 Year |
Description
The WALTON CiNEXA WSIY86 86-Inch 4K UHD Interactive Display With Camera & Stand is a premium all-in-one interactive display designed for large-format collaboration in corporate, educational, and mixed-use spaces.
It features an expansive 86-inch 4K UHD panel (3840 × 2160) delivering clear, detailed visuals and wide room visibility. The large size makes it ideal for spaces where content needs to be visible from a distance.
Built for interactive use, the display supports multi-touch input (typically 20-point or more) for simultaneous annotation, drawing, or collaborative work. It also includes a built-in high-resolution camera and microphone array, making it perfectly suited for video conferencing, hybrid meetings, or remote engagements.
As an all-in-one solution, the WSIY86 comes bundled with a mobile or fixed stand and often includes an OPS (Open Pluggable Specification) module, allowing you to run Windows or Android-based applications directly from the display without needing a separate computer. Connectivity is comprehensive, including multiple HDMI ports, USB-C, USB-A, LAN/WiFi/Bluetooth support, and built-in high-quality speakers for audio-visual completeness.
Combining large-format display clarity, robust touch interactivity, integrated camera and computing hardware, and flexible mounting/stand options, the WALTON CiNEXA WSIY86 is an excellent choice for high-impact meeting rooms, classrooms, and collaborative environments.
