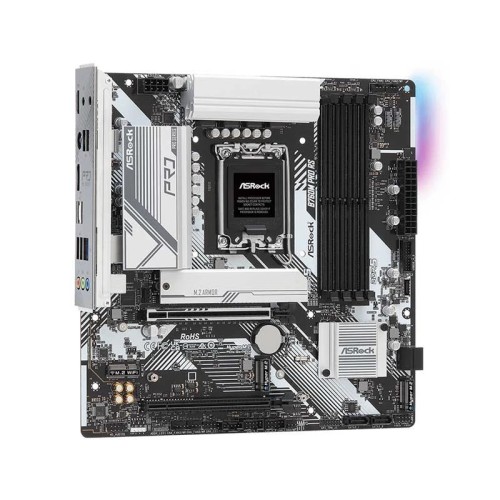

ASRock B760M Pro RS DDR5 mATX Motherboard
Specification
| General | |
| Brand | ASRock |
| Model | B760M Pro RS |
| Memory | |
| Type | DDR5 |
| Slots | 4 |
| Maximum Memory | 256GB |
| Supported Memory | Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC) Max. capacity of system memory: 256GB Supports Intel Extreme Memory Profile (XMP) 3.0 1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively. 1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively. 2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively. 2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively. |
| Graphics | |
| Graphics | - Intel Xe Graphics Architecture (Gen 12) - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz * Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors that are GPU integrated. |
| Basic Information | |
| Audio | Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio |
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support |
| Chipset | Intel B760 |
| Form Factor | Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm |
| Supported CPU | Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700) Supports Intel Hybrid Technology Supports Intel Turbo Boost Max 3.0 Technology Supports Intel Thermal Velocity Boost (TVB) Supports Intel Adaptive Boost Technology (ABT) |
| Expansion Slots | |
| PCI | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) - Supports AMD CrossFire |
| Ports & Connector | |
| Display Port (s) | 1x DisplayPort |
| HDMI | 1x HDMI |
| Internal I/O Ports | - 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x RGB LED Header - 3 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header Rear Panel I/O - 2 x Antenna Mounting Points - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen1 Type-C Port - 3 x USB 3.2 Gen1 Type-A Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone |
| LAN Port (s) | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User-Friendly UI - Visual Network Usage Statistics - Optimized Default Settings for Game, Browser, and Streaming Modes - User Customized Priority Control |
| RAID | - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Supported Storage | CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors * Supports Intel Volume Management Device (VMD) Supports NVMe SSD as boot disks |
| TPM (Trusted Platform Module) | - 1 x SPI TPM Header |
| USB (s) | Chipset: - 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front) - 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) - 6 x USB 2.0 (2 Rear, 4 Front) * All USB ports support ESD Protection |
| Others | |
| Bundled Software | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Easy RAID Installer |
| Other Features | |
| Special Features | Superb Productivity - PCIe Gen5 (Graphics) - Dual Channel DDR5 Rock-Solid Durability - 7+1+1 Power Phase, Dr.MOS for VCore+GT Ultrafast Connectivity - 2.5G LAN EZ Update - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker |
| Warranty Information | |
| Manufacturing Warranty | 03 years Warranty |
Description
ASRock B760M Pro-A DDR5 Micro ATX Motherboard
The ASRock B760M Pro RS DDR5 is a powerful and reliable Micro ATX motherboard designed to support the latest Intel 14th, 13th, and 12th Gen Core processors on the LGA1700 socket. Engineered for stability and performance, it features a solid 7+1+1 power phase design with Dr.MOS, delivering efficient and consistent power to your CPU and integrated graphics.
Equipped with four DDR5 DIMM slots, this board supports up to 128GB of dual-channel memory at speeds reaching 7200+ MHz (OC). Whether you're gaming, editing, or multitasking, the high-speed memory support ensures smooth and responsive performance.
Cutting-Edge Expansion and Storage
The motherboard offers extensive expansion capabilities, including:
-
1 x PCIe 5.0 x16 slot for the latest high-performance graphics cards
-
1 x PCIe 3.0 x16 slot for additional expansion needs
For storage, the ASRock B760M Pro RS is equipped with four SATA3 ports and three Hyper M.2 slots (PCIe Gen4x4) — enabling ultra-fast NVMe SSDs alongside traditional hard drives. With support for RAID (0, 1, 5, 10), you can build flexible, high-performance storage configurations.
Next-Gen Networking and Connectivity
Enjoy lightning-fast networking with Dragon 2.5G LAN and built-in Killer Wi-Fi 6E (802.11ax), offering both wired and wireless speed, stability, and low latency — perfect for competitive gaming and demanding online tasks.
Connectivity is extensive with a wide range of USB ports, including:
-
USB 3.2 Gen1 Type-C (front panel support)
-
Multiple USB 3.2 Gen1 Type-A and USB 2.0 ports (rear and front)
Immersive Audio & Durable Build
For crystal-clear sound, the board features Realtek ALC897 7.1 CH HD Audio, enhanced by Nahimic Audio technology, delivering immersive and rich audio for gaming, streaming, and content creation.
Built with a 6-layer PCB and premium components, this board ensures efficient heat dissipation, durability, and long-term reliability. It also supports ASRock Auto Driver Installer, making the initial setup fast and hassle-free — no driver disc or manual downloads needed.
