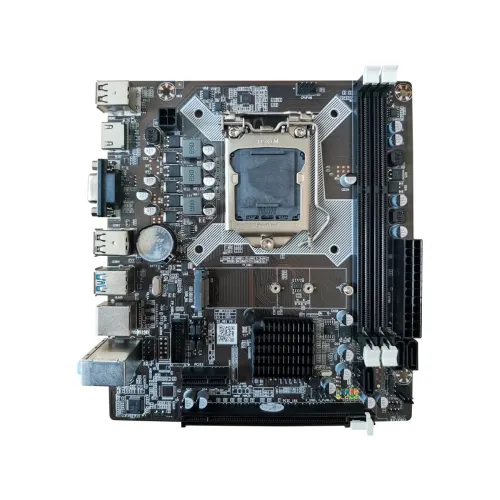

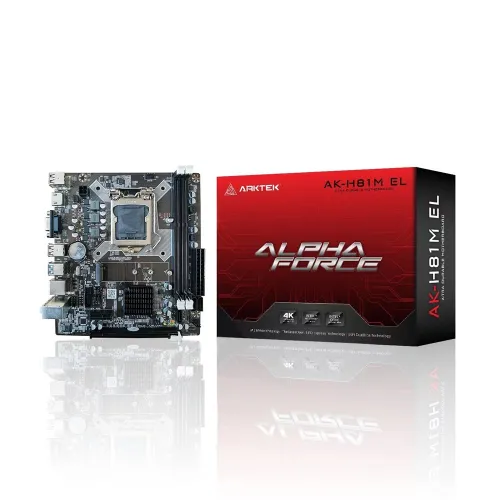

ARKTEK AK-H81M EL 4th Gen Micro-ATX Motherboard
Specification
| General | |
| Brand | ARKTEK |
| Model | AK-H81M EL |
| Memory | |
| Type | DDR3 |
| Slots | 2 x Memory Slots |
| Maximum Memory | Max. up to 8GB each |
| Supported Memory | 1066/1333/1600MHz, Supports non-ECC, un-buffered memory |
| Graphics | |
| Graphics | Integrated Graphics Processor |
| Basic Information | |
| Audio | Onboard Realtek 662 6-channel HD Audio Codec Front Panel audio-out,mic-in jack |
| BIOS | UEFI BIOS |
| Chipset | Intel H81 Chipset |
| Form Factor | Micro-ATX (19 X 17 cm) |
| Supported CPU | Support Intel Core i7/i5/i3/Pentium/ Celeron processors in the LGA1150 package. Support Intel 4th generation multi-core processors |
| Expansion Slots | |
| PCI | 1 x PCI Express x16 slot |
| Ports & Connector | |
| Audio | 3 x Audio jack |
| HDMI | 1 x HDMI port |
| LAN Port (s) | Onboard Realtek RTL8105E/8111E Gigabit 100/1000 Mbps |
| Supported Storage | 3 x SATA, 1xM.2 supports NVME+NGFF |
| USB (s) | 4 x USB 2.0 port 2 x USB 3.0 port |
| VGA (s) | 1 x VGA port |
| Warranty Information | |
| Manufacturing Warranty | 2 Year |
Description

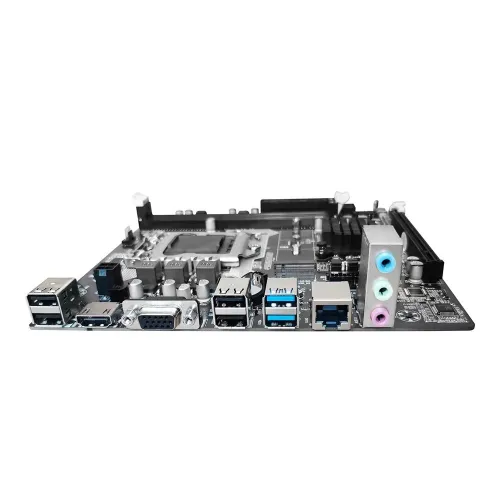

The ARKTEK AK-H81M EL 4th Gen Micro-ATX Motherboard is designed to support Intel Core i7, i5, i3, Pentium, and Celeron processors of the LGA1150 Intel 4th generation multi-core processors. It utilizes the Intel H81 chipset and features integrated graphics processing. The motherboard supports dual-channel DDR3 memory and has two slots with a maximum capacity of 8GB per slot. It offers LAN connectivity with the onboard Realtek RTL8105E/8111E Gigabit 100/1000 Mbps LAN and includes a Realtek 662 6-channel HD Audio Codec for audio functions. Storage options include three SATA ports and one M.2 slot supporting NVME and NGFF storage devices. The back panel I/O ports provide various connections, including VGA, HDMI, USB, LAN, and audio jacks. Expansion slots include one PCI Express x16 slot, and the motherboard features UEFI BIOS for system configuration. With its micro-ATX form factor and secure mounting holes, the AK-H81M EL is suitable for compact PC builds.
