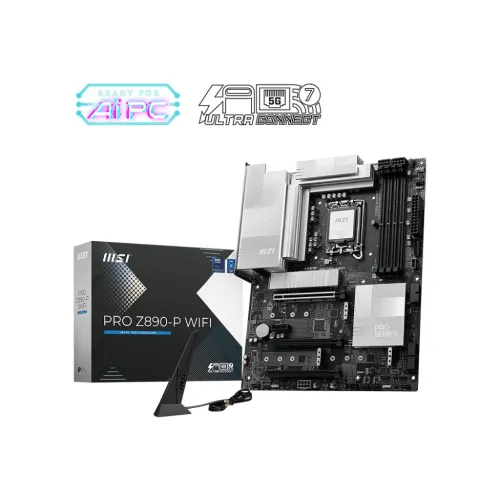

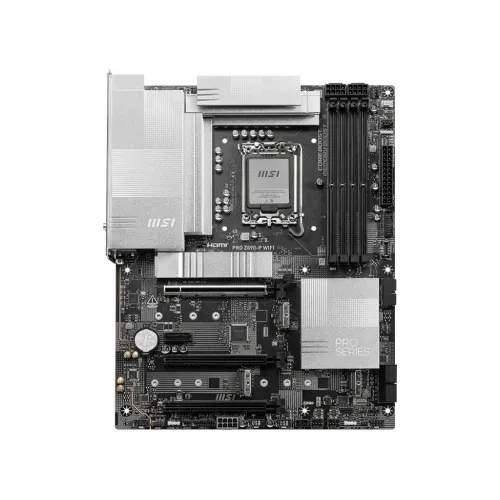

MSI PRO Z890-P WIFI LGA 1851 ATX Motherboard
Key Features
- Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
- Supported RAM: 4x DDR5, Max 256GB 9200 - 6400 (OC) MT/s
- Graphics Output: 1x HDMI, 1x DisplayPort, 1x Type-C DisplayPort
- Features: 4x M.2, Intel Wi-Fi 7, Bluetooth 5.4
Specification
| General | |
| Brand | MSI |
| Model | PRO Z890-P WIFI |
| Memory | |
| Type | DDR5 |
| Slots | 4 |
| Maximum Memory | 256GB |
| Supported Memory | Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 4800+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s |
| Graphics | |
| Graphics | 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt™ 4 port, supporting DisplayPort 1.4 over USB Type-C®, with a maximum resolution of 4K 120Hz / 8K 60Hz* |
| Basic Information | |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Chipset | INTEL Z890 |
| Form Factor | ATX (243.84mmx304.8mm) |
| Supported CPU | Supports Intel Core Ultra Processors (Series 2) |
| Expansion Slots | |
| M.2 Socket | 4x M.2 |
| PCI | 3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Ports & Connector | |
| Audio | 1x Front Audio (JAUD) |
| Display Port (s) | 1x DisplayPort 1x Type-C DisplayPort Thunderbolt™ 4 port, supporting DisplayPort 1.4 over USB Type-C, with a maximum resolution of 4K 120Hz / 8K 60Hz* |
| HDMI | 1x HDMI 2.1 |
| Internal I/O Ports | 1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
| LAN Port (s) | Realtek 8126 5Gbps LAN |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
| Supported Storage | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
| TPM (Trusted Platform Module) | 1x TPM pin header(Support TPM 2.0) |
| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) |
| Wireless Communication module | Intel® Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM |
| Warranty Information | |
| Manufacturing Warranty | 03 Year warranty |
Description
MSI PRO Z890-P WIFI LGA 1851 ATX Motherboard
Power your high-performance desktop workstation or gaming PC with the MSI PRO Z890-P WIFI LGA 1851 Motherboard, available at Skyland.com.bd. Designed for Intel Core Ultra Processors (Series 2) on the LGA 1851 socket, this ATX motherboard features a robust VRM power architecture, cutting-edge Wi-Fi 7, 5G LAN, Thunderbolt 4, and PCIe 5.0 expansion wrapped in a sleek silver-accented PCB suitable for both black and white builds.
Robust Power Delivery & High-Speed DDR5 Support
-
LGA 1851 Socket & Z890 Chipset: Full support for latest Intel Core Ultra (Series 2) CPUs built on a 6-layer server-grade PCB with 2oz thickened copper.
-
14+1+1+1 Power Phase VRM: Digital PWM power design paired with dual 8-pin CPU power connectors and extended heatsinks ensures sustained performance under heavy multi-threaded workloads.
-
Up to 256GB DDR5 Memory: Four DIMM slots support up to 256GB DDR5 memory with overclocked speeds exceeding 9200+ MT/s (OC) via Intel XMP 3.0 profiles.
Next-Gen Expansion & Ultra-Fast Connectivity
-
PCIe 5.0 GPU & Storage Slots: Features a PCIe 5.0 x16 slot with Steel Armor reinforcement alongside a dedicated PCIe 5.0 x4 M.2 slot for ultra-fast graphics cards and NVMe SSDs.
-
Wi-Fi 7 & 5G Ethernet: Pre-installed Intel Wi-Fi 7 module supports ultra-fast 320MHz wireless speeds, paired with Realtek 5Gbps LAN for low-latency networking.
-
Thunderbolt 4 & Rapid Front Ports: Rear Thunderbolt 4 Type-C port supports 40Gbps data throughput and 8K display output, complimented by a front panel USB 20Gbps Type-C header.
DIY Friendly Cooling & Smart Protections
-
EZ DIY Features: Equipped with EZ M.2 Shield Frozr II, EZ M.2 Clips, pre-installed I/O shield, and EZ Debug LEDs for simplified PC assembly.
-
Extended Thermal Solutions: Heavy-plated VRM heatsinks with 7W/mK MOSFET thermal pads and dedicated pump-fan headers keep critical components cool.
Buy MSI PRO Z890-P WIFI Motherboard in BD at Skyland
Order the genuine MSI PRO Z890-P WIFI LGA 1851 ATX Motherboard at the best price in Bangladesh from Skyland.com.bd. Enjoy 100% original desktop components, official 3-year warranty coverage, and fast nationwide delivery straight to your door.
