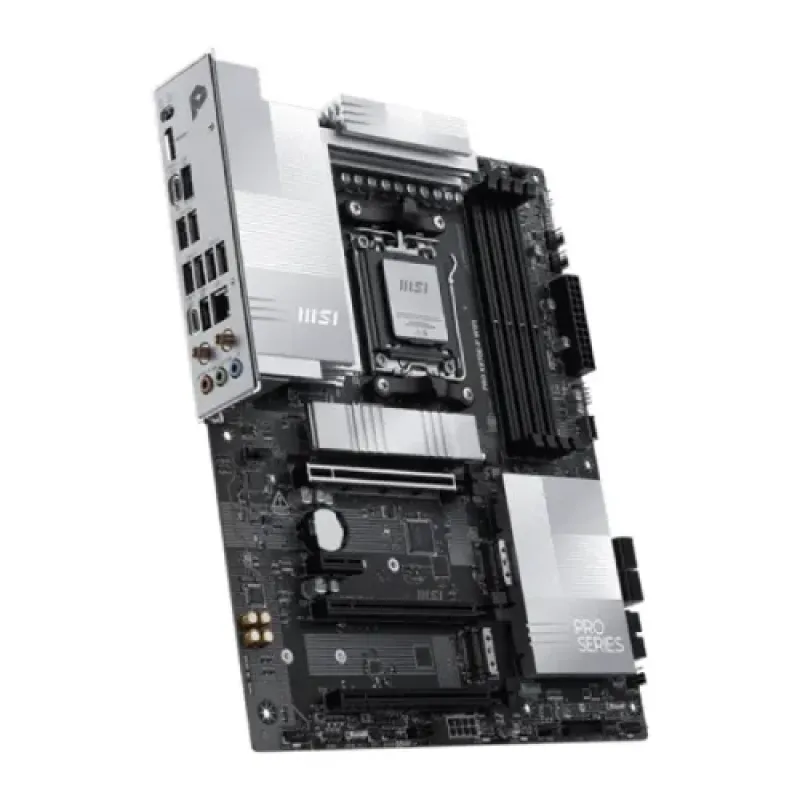

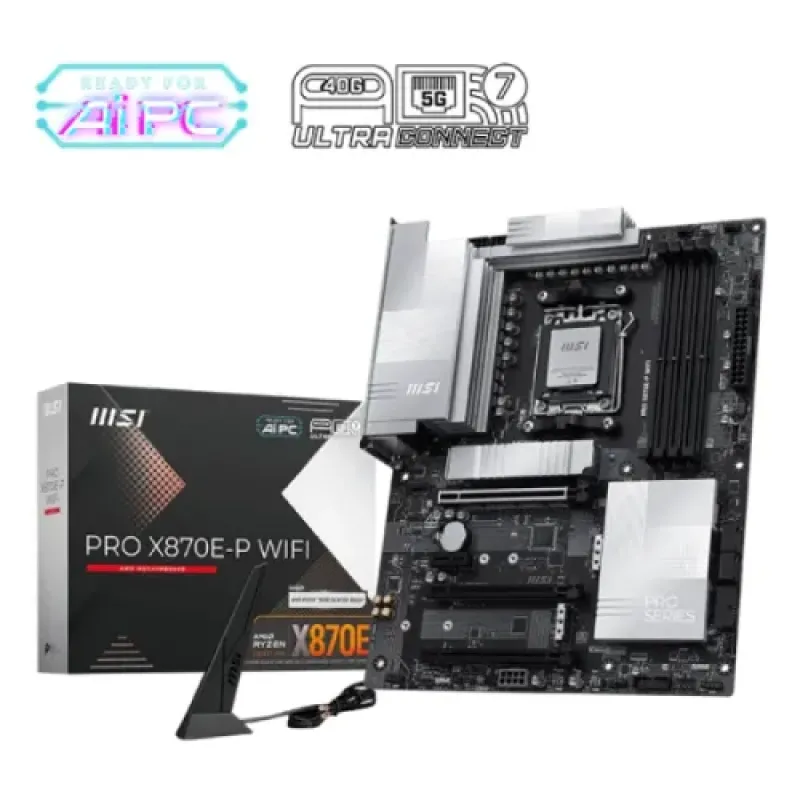

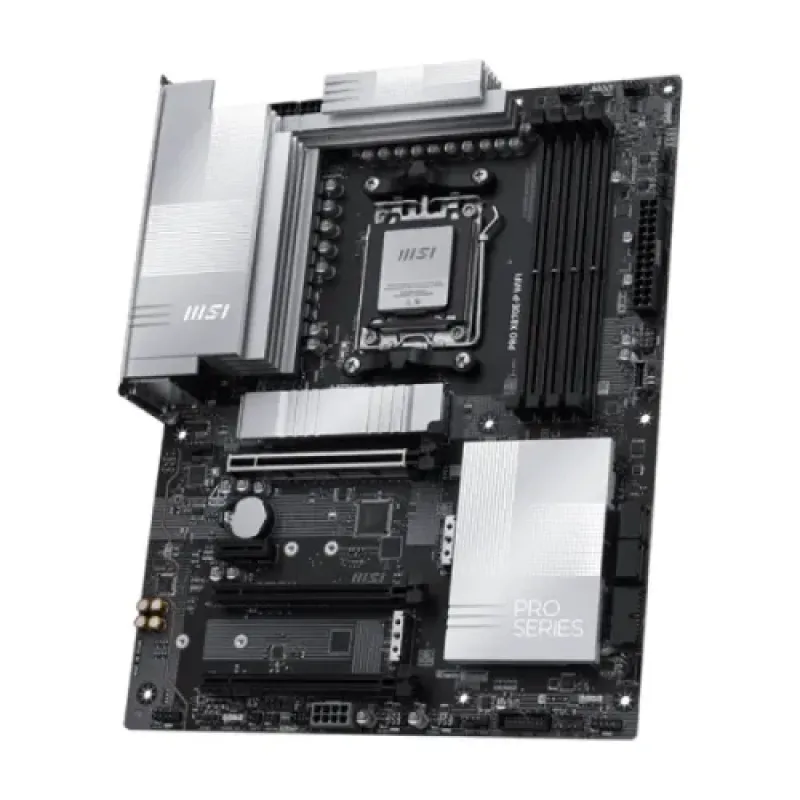

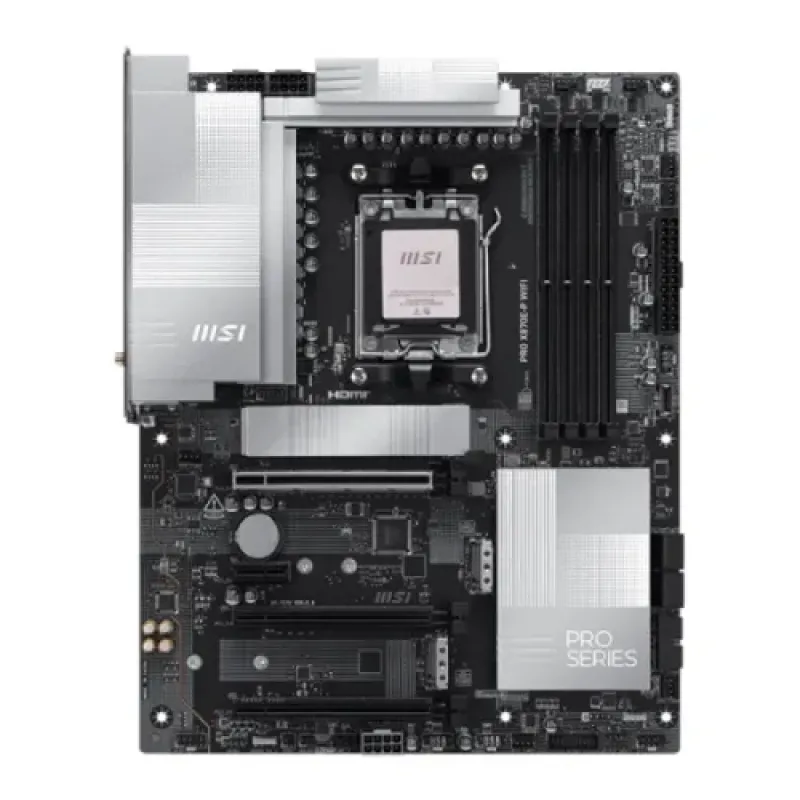

MSI PRO X870E-P WIFI AM5 ATX Motherboard

The MSI PRO X870E-P WIFI AM5 ATX motherboard is a high-performance option that supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors using the AM5 socket. With four DDR5 UDIMM slots, it supports up to 256 GB of memory at rates ranging from DDR5 8200 to 4800 MT/s, as well as AMD EXPO, JEDEC, and memory overclocking capabilities. The MSI PRO X870E-P WIFI motherboard supports dual-channel operation, non-ECC unbuffered RAM, and clock driver bypass mode for advanced tweaking. Onboard graphics include HDMI 2.1 and USB4 Type-C DisplayPort 1.4 outputs, both of which offer 4K resolution at 60 Hz. The MSI AM5 motherboard has four PCIe slots, including PCI\_E1, which provides Gen 5.0 x16 capability for Ryzen 9000 and 7000 series processors. The Realtek ALC897 codec powers the audio, allowing for high-definition sound in 7.1 channels. Storage compatibility includes three M.2 slots with PCIe 5.0 and 4.0 interfaces, as well as four SATA 6G connections. The MSI PRO X870E-P WIFI motherboard has M.2\_1 operating at PCIe 5.0 x4 for Ryzen 9000 and 7000 series, and the board supports RAID 0, 1, and 10 for SATA, and RAID 0, 1, and 5 for NVMe on Ryzen 9000 CPUs. Wi-Fi 7, Bluetooth 5.4, and a Realtek 8126VB 5G LAN enable high-speed networking. USB compatibility is extensive, with USB 2.0, 5Gbps, 10Gbps, 20Gbps, and a USB4 40Gbps Type-C port. The MSI PRO X870E-P WIFI AM5 ATX motherboard also features internal headers for CPU and system fan connectors, RGB and ARGB headers, TPM 2.0, a tuning controller connector, and EZ Debug and Memory Detection LEDs. This ATX motherboard is 243.84 mm by 304.8 mm and runs Windows 11 64-bit, making it suitable for high-end gaming and workstation setups that require cutting-edge connection, performance, and future-proof features.
