- Offer Price: 25,900৳
- Regular Price: 27,800৳
- Stock: In Stock
- Brand: MSI
- Model: PRO B860M-A WIFI
Key Features
- Chipset - INTEL B860
- Form Factor - Micro- ATX
- Socket - LGA 1851
- LAN - Realtek 8126 5Gbps
Payment Options
Cash Discount Price
Regular Price: —
Specifications
| General | |
| Brand | MSI |
| Model | PRO B860M-A WIFI |
| Memory | |
| Type | DDR5 |
| Slots | 4 |
| Maximum Memory | 256GB |
| Basic Information | |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
| Chipset | INTEL B860 |
| Form Factor | Micro- ATX |
| Supported CPU | Supports Intel Core Ultra Processors (Series 2) |
| Expansion Slots | |
| PCI | 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Ports & Connector | |
| Audio | 6x Audio Connectors |
| Display Port (s) | 1x DisplayPort |
| HDMI | 1x HDMI |
| Internal I/O Ports | 1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| LAN Port (s) | Realtek 8126 5Gbps |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Supported Storage | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices 4x SATA 6G |
| TPM (Trusted Platform Module) | 1x TPM pin header(Support TPM 2.0) |
| USB (s) | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 1x USB 5Gbps Type C (Rear) 4x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) |
| Wireless Communication module | Intel Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be |
| Warranty Information | |
| Manufacturing Warranty | 03 years |
Description

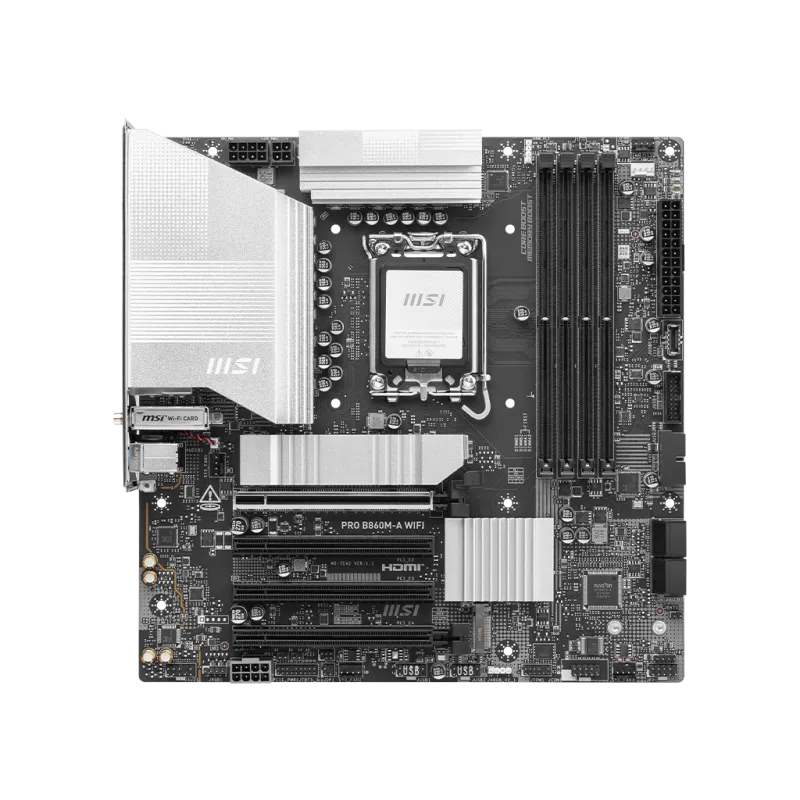

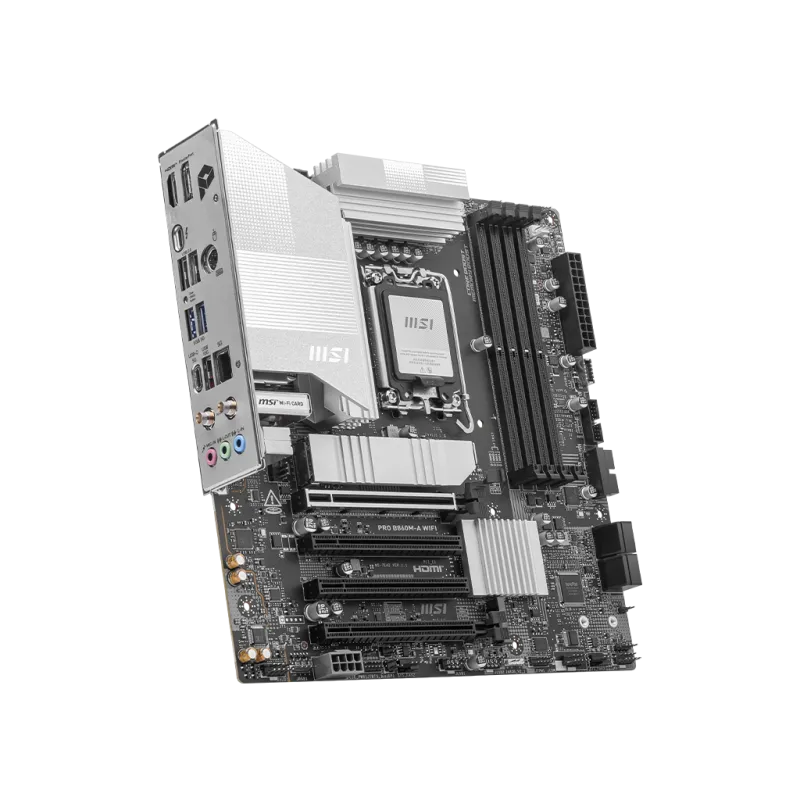

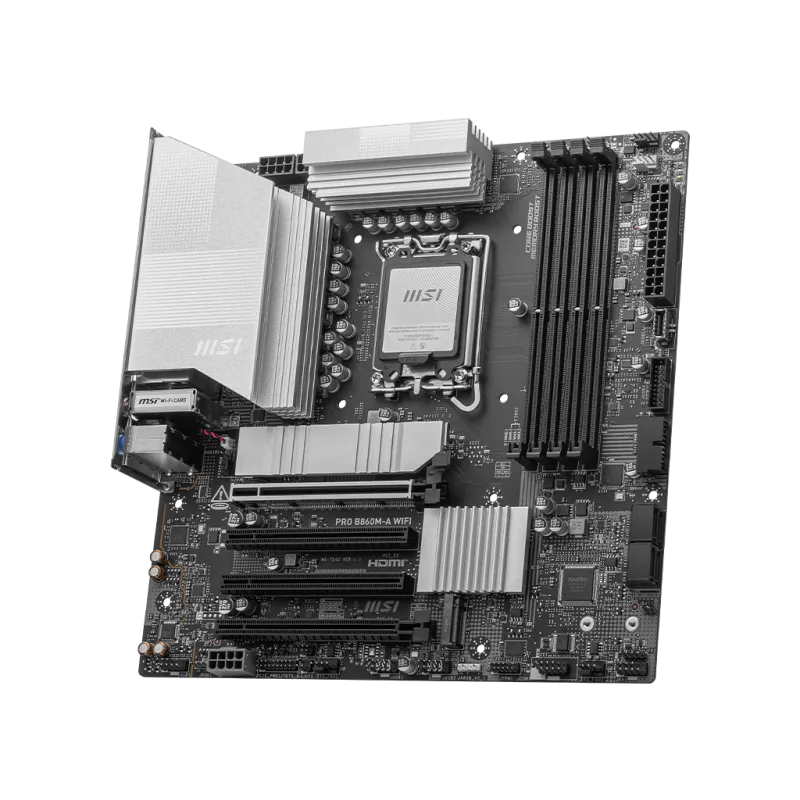

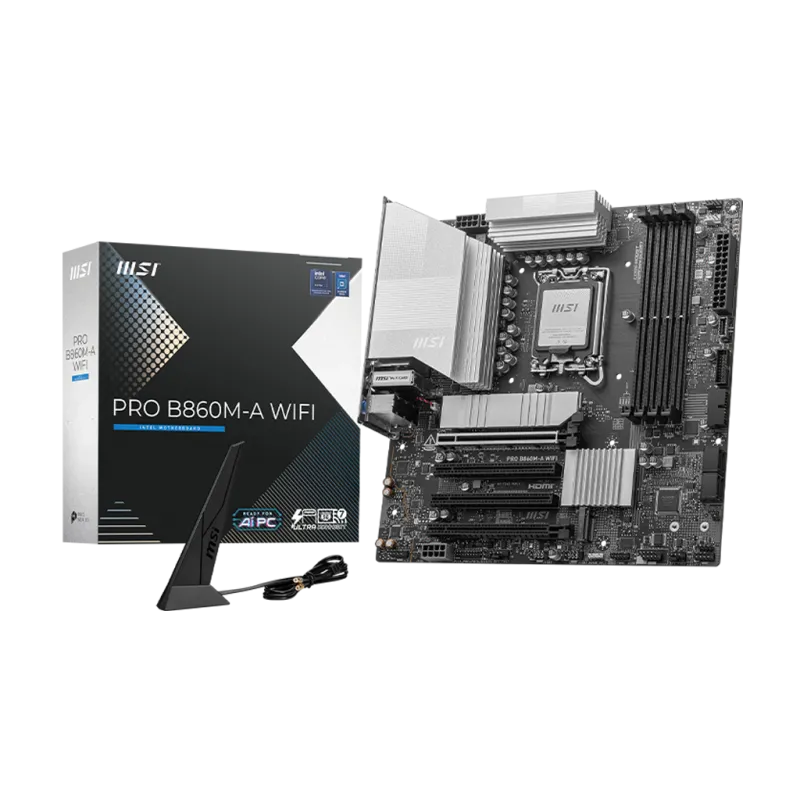

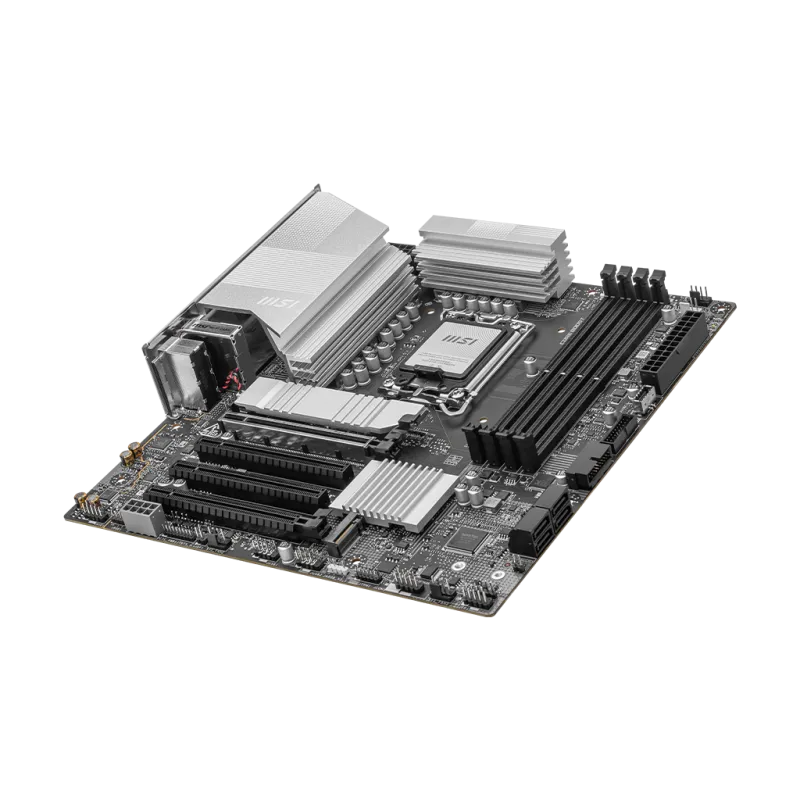

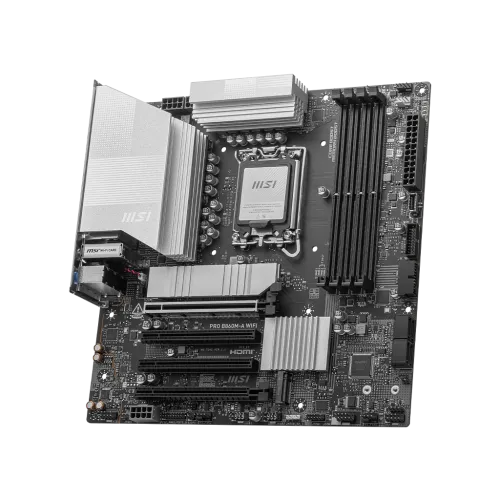

MSI PRO B860M-A WIFI LGA1851 Micro ATX Motherboard
MSI PRO B860M-A WIFI LGA1851 Micro ATX Motherboard is a versatile and high-performance motherboard designed for professionals and enthusiasts, now available at SkyLandBD in Bangladesh. Built to support the latest Intel Core Ultra Processors (Series 2) on the LGA 1851 socket, this Micro ATX motherboard combines power and efficiency with its Intel B860 chipset. It features four DDR5 UDIMM slots, supporting up to 256GB of memory with speeds ranging from 4800 MT/s (JEDEC) to 8600 MT/s (overclocked), and Intel® XMP 3.0 support for enhanced performance. The motherboard offers excellent connectivity options, including Intel Wi-Fi 7 with speeds up to 5.8Gbps, a Realtek 8126 5Gbps LAN port, and a Thunderbolt 4 USB Type-C port supporting DisplayPort 2.1 for resolutions up to 8K 60Hz. It also includes multiple display outputs, such as HDMI 2.1 (4K 60Hz) and DisplayPort 1.4 (4K 60Hz). Storage options are robust, with support for multiple M.2 and SATA devices, ensuring ample space for your data. The Realtek ALC897 codec delivers 7.1-channel high-definition audio, enhancing your multimedia experience. Despite its compact Micro ATX form factor, it provides extensive expansion options, including four PCIe slots and multiple USB ports (including USB 10Gbps). Backed by a 3-year warranty, the MSI PRO B860M-A WIFI ensures reliability and durability for your professional or gaming setup. Visit SkyLandBD to purchase this feature-rich motherboard and elevate your PC build.
What is the price of MSI PRO B860M-A WIFI LGA1851 Micro ATX Motherboard in Bangladesh?
The latest price of MSI PRO B860M-A WIFI LGA1851 Micro ATX Motherboard in Bangladesh is 25,900৳. You can buy the MSI PRO B860M-A WIFI LGA1851 Micro ATX Motherboard at the best price from our website or visit any of our showrooms.
