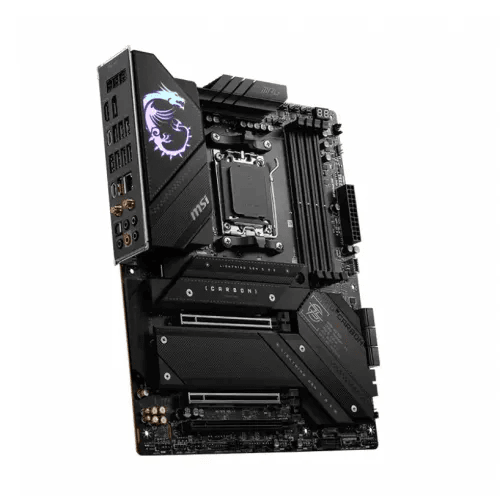

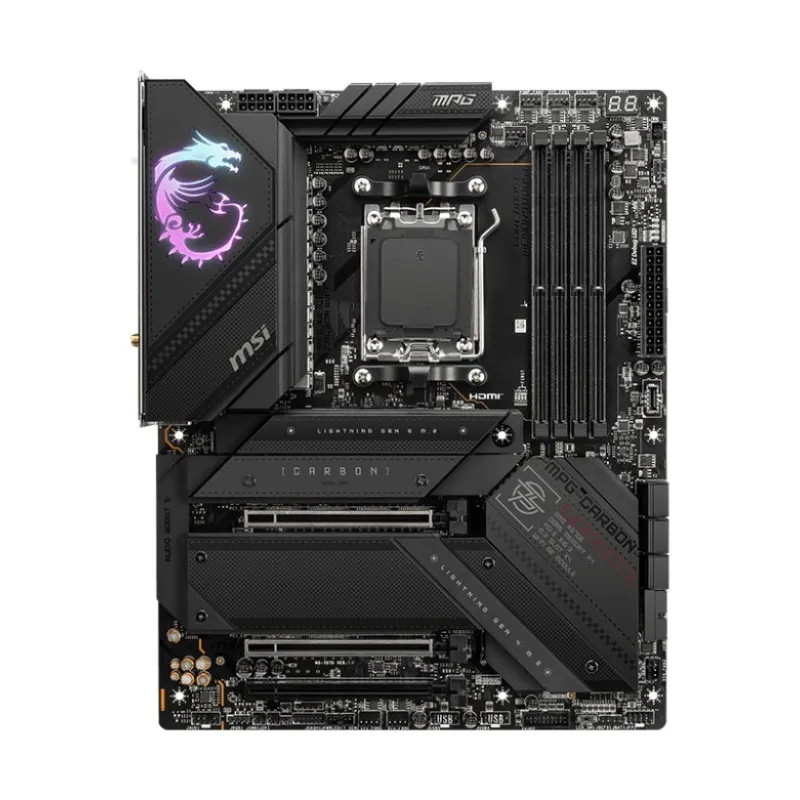

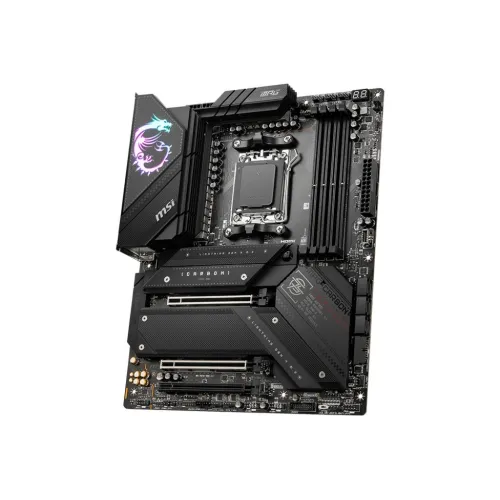

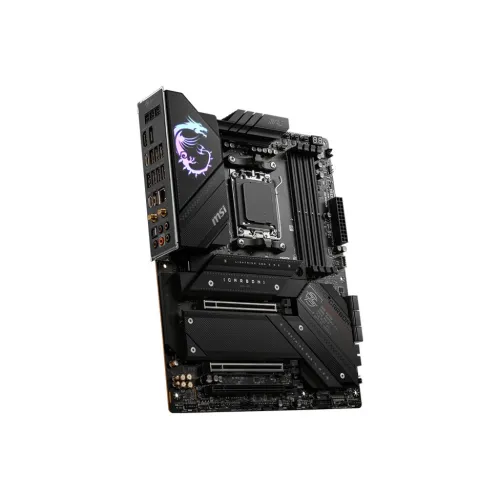

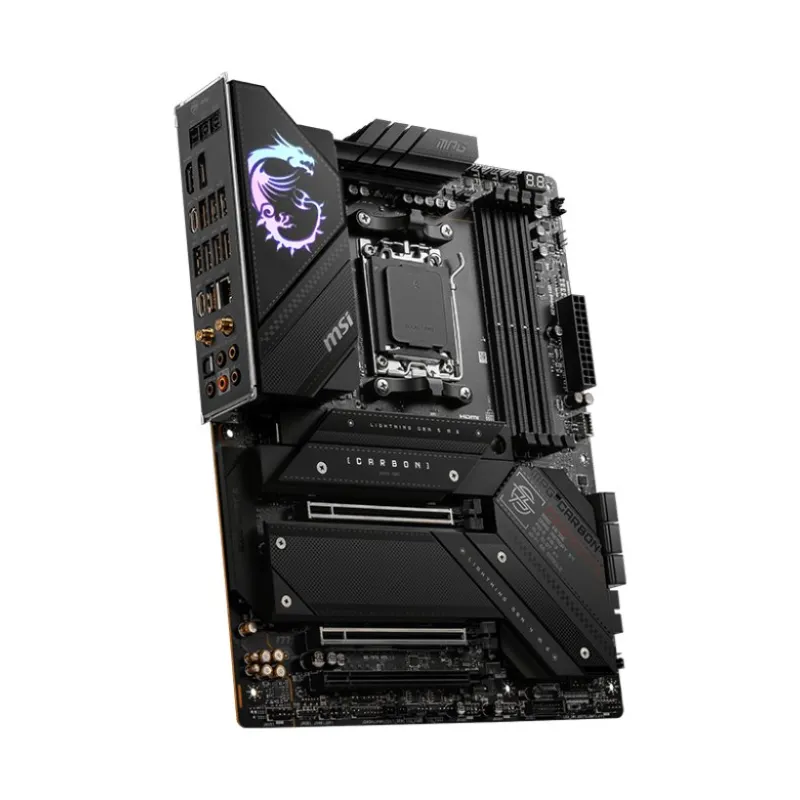

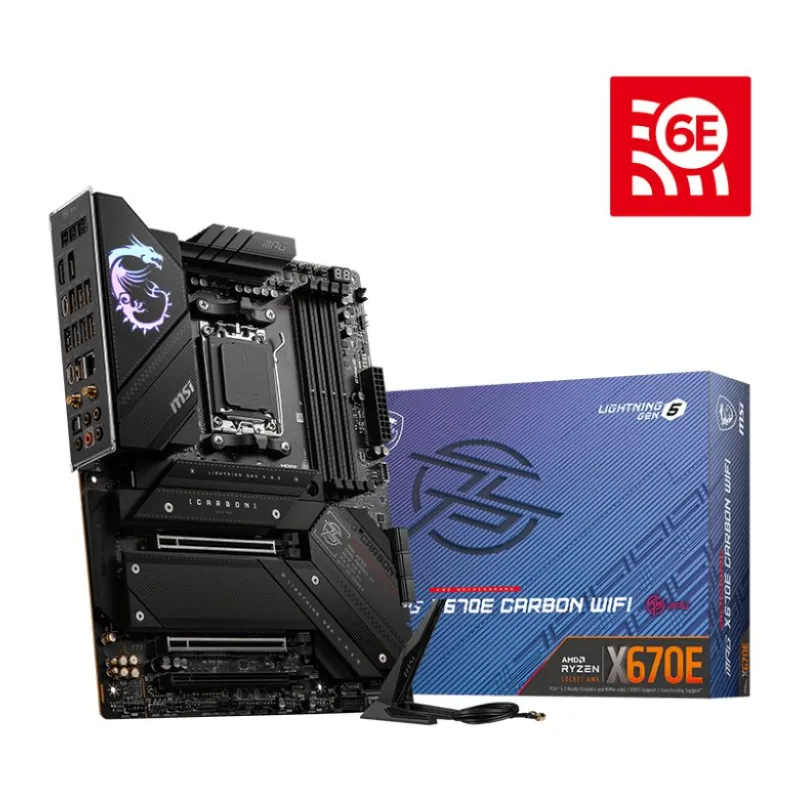

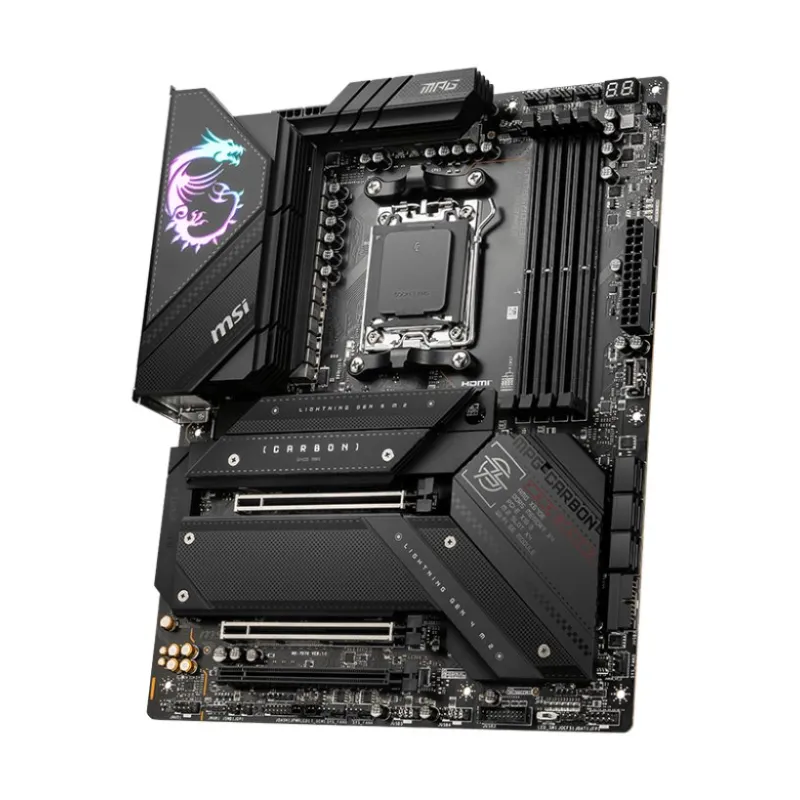

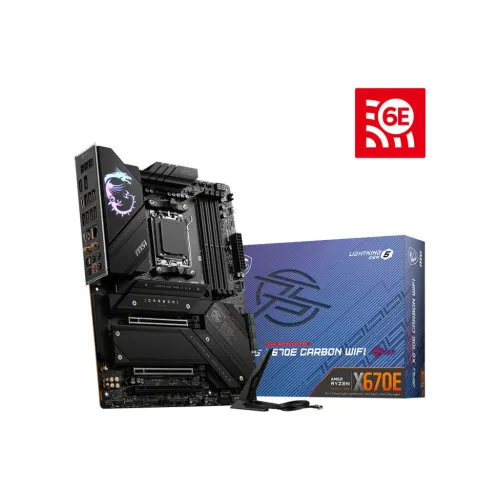

MSI MPG X670E CARBON WIFI DDR5 AMD AM5 ATX Motherboard

Name: MSI MPG X670E CARBON WIFI DDR5 AMD AM5 ATX Motherboard
Brand: MSI
SKU: MPG X670E CARBON WIFI
Price: 55500.00 BDT
Availability: InStock

Price: 55,500৳

Regular Price: 60,220৳

Status: In Stock

Brand: MSI

Key Features

Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
Supported RAM: 4x DDR5, Max 128GB
Graphics Output: 1x HDM, 1x Display Port, 1x Type-C Display port
Features: 2.5G LAN and Wi-Fi 6E Solution

View More Info

Payment Options

55,500৳ 60,220৳

Cash Discount Price

Online / Cash Payment

Special Price: 55,500৳

View Banks EMI Plans

Specification

General
Brand	MSI
Model	MPG X670E CARBON WIFI
Memory
Type	DDR5
Slots	4 DIMMs
Maximum Memory	128GB
Supported Memory	Dual Channel DDR5
Graphics
Graphics	1x HDMI Support HDMITM 2.1 FRL, maximum resolution of 4K 120Hz 1x Display Port Support DP 1.4, maximum resolution of 4K 60Hz 1x Type-C Display port Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz Supports AMD MULTI-GPU
Basic Information
Audio	Realtek ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel
Chipset	AMD X670
Form Factor	ATX 304.8mmx243.84mm
Supported CPU	Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Expansion Slots
PCI	1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2 3x PCIe 3.0 x1 slots
Ports & Connector
Display Port (s)	1x Display Port
HDMI	1x HDMI
Internal I/O Ports	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports
LAN Port (s)	Realtek RTL8125BG 2.5Gbps LAN
RAID	Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
Supported Storage	4x M.2 slot M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G port
TPM (Trusted Platform Module)	1x TPM pin header(Support TPM 2.0)

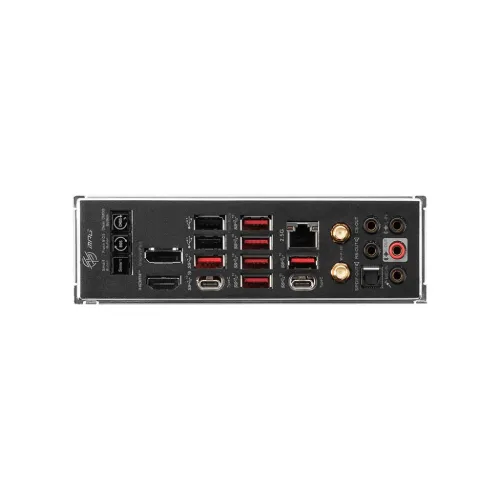

USB (s)	2x USB 2.0 ports (Rear) 4x USB 2.0 ports (Front) 4x USB 3.2 Gen1 Type A ports (Front) 6x USB 3.2 Gen2 Type A ports (Rear) 1x USB 3.2 Gen2 Type C ports (Rear) 1x USB 3.2 Gen2 Type C ports (Front) 1x USB 3.2 Gen2x2 Type C ports (Rear)
Wireless Communication module	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2
Warranty Information
Manufacturing Warranty	3 Years

Description

MSI MPG X670E CARBON WIFI DDR5 AMD AM5 ATX Motherboard

The MSI MPG X670E CARBON WIFI ensures rock-solid performance and smooth power delivery — even under extreme workloads and overclocked conditions.

The 8-layer PCB with 2oz thickened copper and server-grade materials ensures high signal integrity and enhanced durability, making it perfect for long gaming sessions and intensive applications.

Optimized Thermal Solution

Extended Heatsink with Direct Touch Heatpipe
7W/mK MOSFET thermal pads
Additional choke thermal pads
Double-sided M.2 Shield Frozr
VRM Baseplate + Stacked Fin Array (MEG-class cooling)

All these features ensure consistent thermal performance, keeping VRMs and M.2 SSDs cool during intense computing tasks.

PCIe Gen5, Lightning-Fast Storage & Expansion

2x PCIe 5.0 x16 slots for the latest GPUs
4x onboard M.2 slots (1x Gen 5, 3x Gen 4)
Bonus M.2 Xpander-Z Gen5 card (adds 2 more PCIe 5.0 x4 M.2 slots)
Support for DisplayPort 2.0-out via rear USB Type-C

The MSI MPG X670E CARBON WIFI is ideal for users needing extensive NVMe storage, high-speed graphics, and modular expandability.

Connectivity & User-Centric Features

Wi-Fi 6E for ultra-fast wireless networking
2.5G LAN for stable and secure wired performance
Rear USB Type-C with DP 2.0 output
ARGB Gen2 support for full lighting customization
EZ Debug LEDs + one-click buttons for RGB toggle, Safe Boot, and Turbo Mode

Enjoy a system that’s not only powerful but also smart and easy to work with.

Audio & Aesthetics

Delivering an immersive audio experience through Audio Boost, this motherboard provides studio-grade sound for games, movies, and creative workloads. A stylish carbon fiber finish complements high-end RGB builds.

Ideal For:

High-end gaming builds
4K/8K content creators
Overclocking enthusiasts
Workstations requiring multiple ultra-fast NVMe drives

Final Verdict

The MSI MPG X670E CARBON WIFI stands at the forefront of AMD AM5 innovation, combining premium features, extreme performance, and next-gen connectivity into a single powerhouse platform. Whether you're building a cutting-edge gaming rig or a high-throughput workstation, this motherboard delivers the scalability and speed to match your ambitions.
