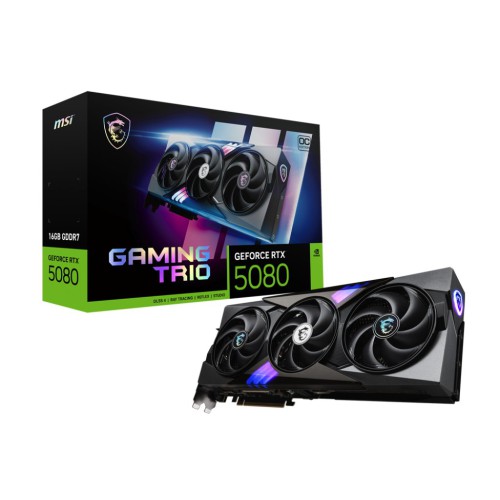

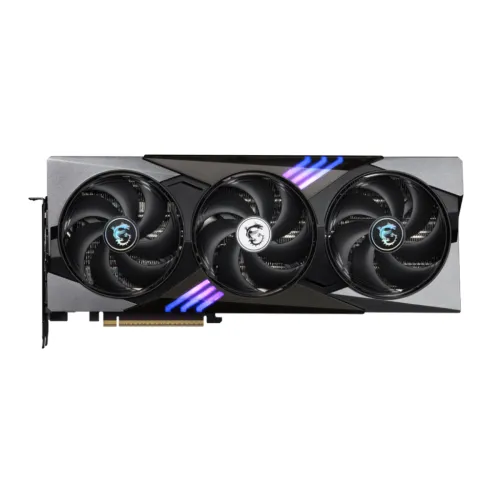

MSI GeForce RTX 5080 16G GAMING TRIO OC 16GB GDDR7 Graphics Card
Key Features
- Video Memory: 16GB GDDR7, PCI Express 5
- CUDA Cores: 10752 Units, Memory Speed: 30 Gbps
- Core Clocks: Extreme: 2715 MHz, Boost: 2700 MHz

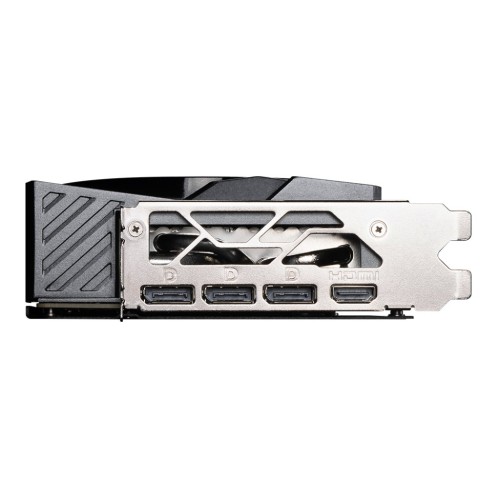

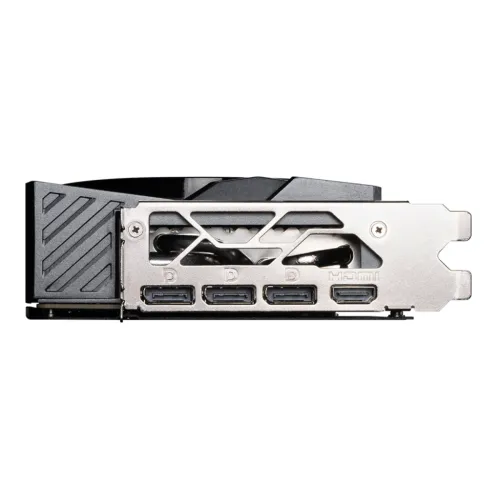

- Display Outputs: 3 x DisplayPort 2.1b, 1 x HDMI
Specification
| General | |
| Brand | MSI |
| Model | GeForce RTX 5080 16G GAMING TRIO OC |
| Key Features | |
| Interface | PCI Express Gen 5 |
| Video Memory Specifications | |
| Type | GDDR7 |
| Size | 16GB |
| Engine Clock | Extreme Performance: 2715 MHz (MSI Center) Boost: 2700 MHz (GAMING & SILENT Mode) |
| Resolution | Up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR |
| Bus Standard | 256-bit |
| CUDA Cores | 10752 |
| Memory Interface | 30 Gbps |
| Application Programming Interfaces | |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Display Option | |
| Multi Display | 4 |
| Interface | |
| Display Port | 3 x (v2.1b) |
| HDCP | Yes |
| HDMI | 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
| Power | |
| Recommended PSU | 850 W |
| Power Consumption | 360 W |
| Power Specifications | |
| Connectors | 16-pin x 1 |
| Physical Specification | |
| Weight | Product: 1.362 kg Box: 1.885 kg |
| Dimension | 338 x 140 x 50 mm |
| Warranty Information | |
| Warranty | 3 years |
Description

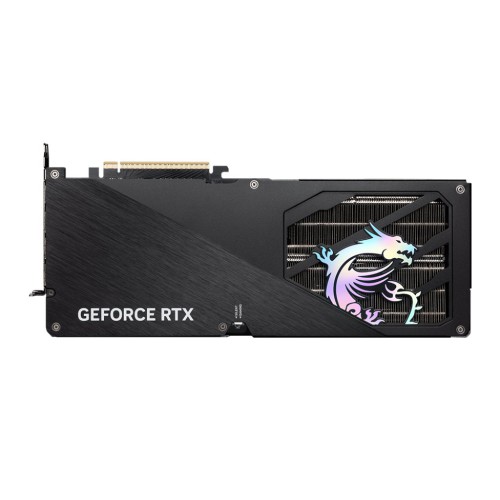

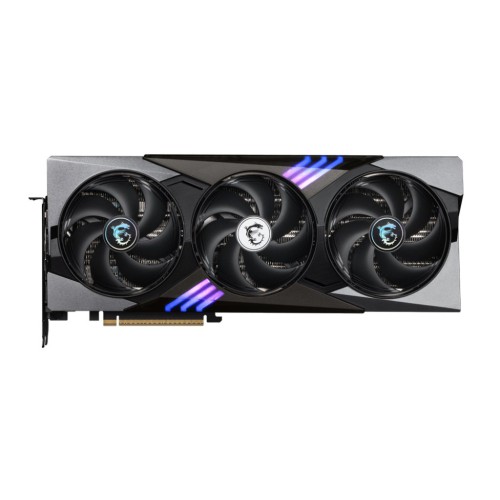

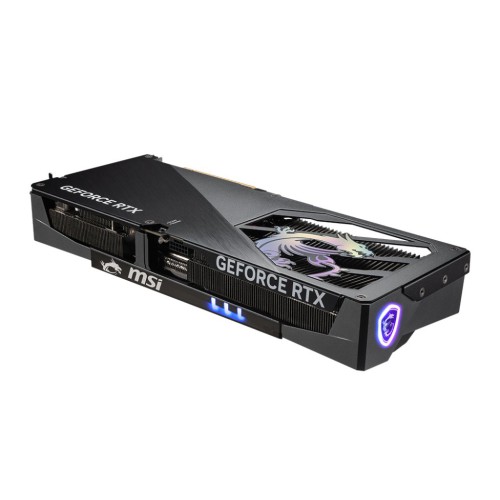

This MSI GeForce RTX 5080 16G GAMING TRIO OC 16GB GDDR7 Graphics Card is powered by DLSS 4 technology and the latest NVIDIA Blackwell architecture. This MSI RTX 5080 Graphics Card guarantees outstanding speed and efficiency with core clocks that exceed 2715 MHz in Extreme Performance mode and a boost clock of 2700 MHz in Gaming and Silent modes. The STORMFORCE Fan, which has seven blades, claw texturing, and a circular arc for optimal airflow, complements the TRI FROZR 4 thermal design, which has improved fans, airflow control, and greater thermal management for quieter, cooler operation. Square-shaped core pipes and a nickel-plated copper baseplate optimize heat transfer from the MSI GeForce RTX 5080 16G GAMING TRIO OC 16GB GDDR7 graphics card and memory. A metal backplate with thermal pads and airflow vents further improves heat transfer. Effective cooling is ensured by the Wave Curved 4.0 and Air Antegrade Fin 2.0 designs, which improve airflow and lessen turbulence. Switching between low noise in Silent mode and high performance in Gaming mode is made possible by dual BIOS. With 10752 GPU cores, 16GB of GDDR7 video memory, a 256-bit memory bus, and a memory clock of 30 Gbps, this MSI GeForce RTX 5080 16G GAMING TRIO OC GPU is a powerful device. This MSI GDDR7 GPU has a PCI Express 5.0 x16 interface and supports three DisplayPort 2.1a and one HDMI connector. It can handle resolutions up to 15360x8460 at 60Hz and supports 4K 120Hz HDR and 8K 60Hz HDR. Robust performance is ensured by quad display capability, HDCP 2.3 compliance, and a suggested 850W power supply with a 12VHPWR power input. With 84 ray tracing cores, 128 ROPs, shader model 6.8, and 336 TMUs, this MSI GeForce RTX 5080 16G GAMING TRIO OC 16GB GDDR7 graphics card is a potent option for any gaming setup. It also supports DirectX 12 Ultimate and OpenGL 4.6.
