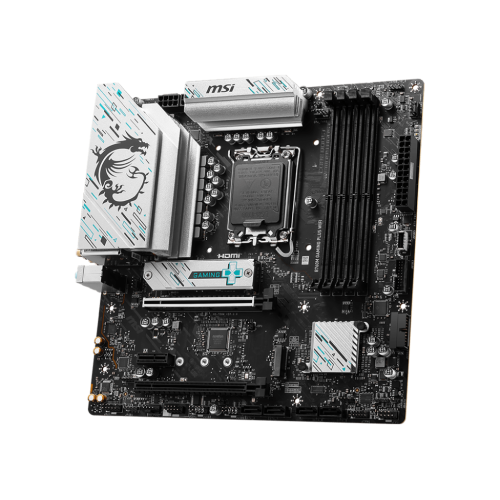

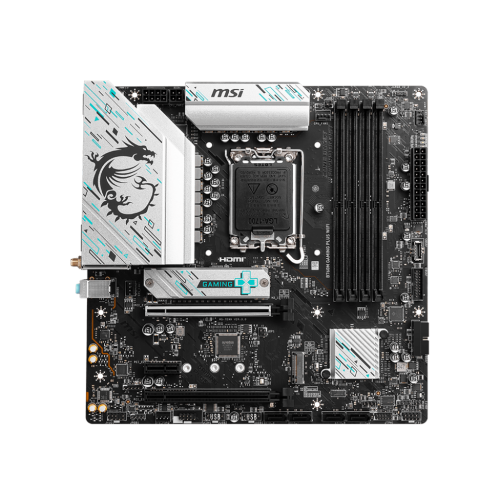

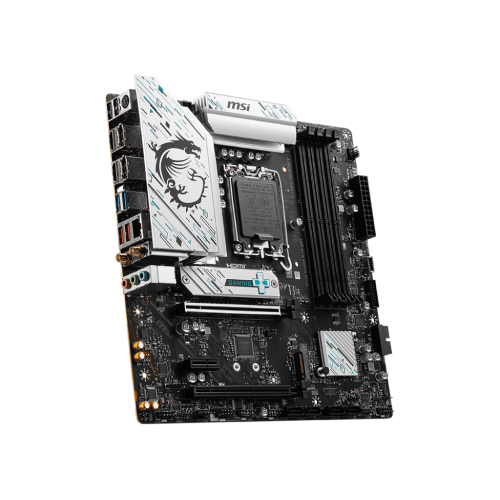

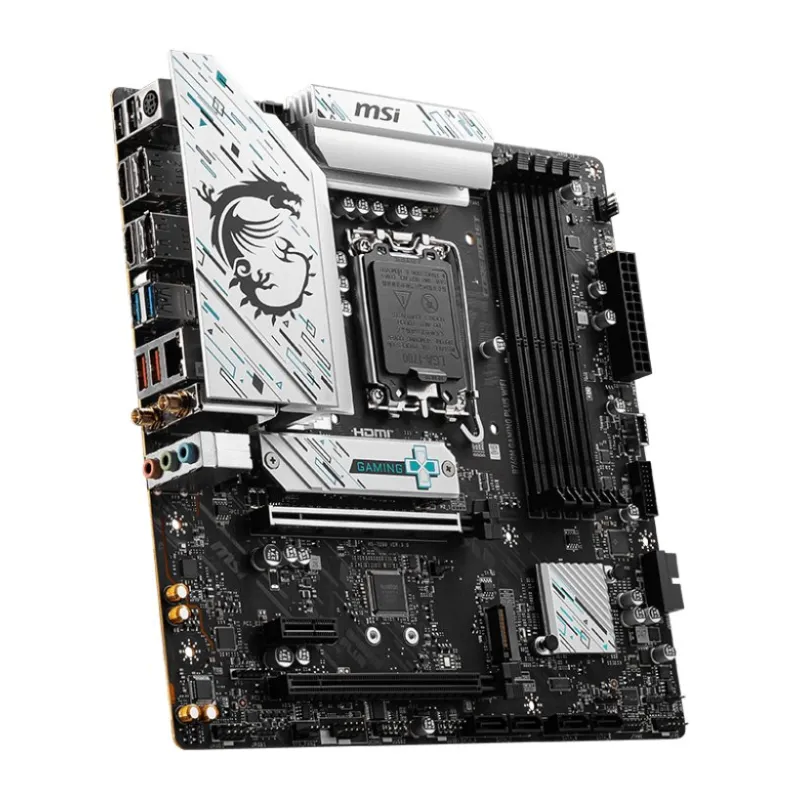

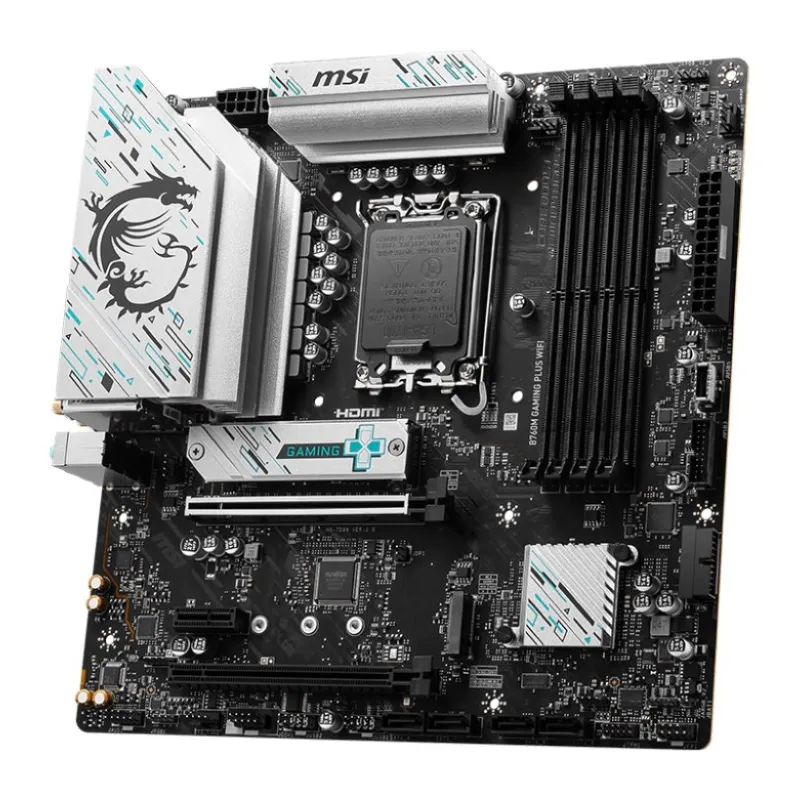

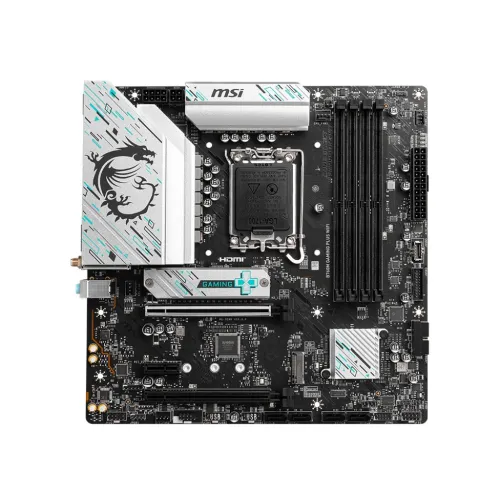

MSI B760M GAMING PLUS WIFI 6E mATX Motherboard
Key Features
- Supported CPU: 14th/ 13th /12th Gen Intel Core / Pentium / Celeron processors (LGA 1700)
- Supported RAM: 4x DDR5, Max 192GB, 6800+MHz (OC)
- Graphics Output: 2x HDMI2.1
- Features: Dual 2.5G LAN with latest Wi-Fi 6E, Dual DisplayPort1. 4
Specification
| General | |
| Brand | MSI |
| Model | B760M GAMING PLUS |
| Memory | |
| Type | DDR5 |
| Slots | 4 |
| Maximum Memory | 192GB |
| Supported Memory | 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz |
| Graphics | |
| Graphics | 2x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz |
| Basic Information | |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
| Chipset | INTEL B760 |
| Form Factor | m-ATX 243.84mmx243.84mm |
| Supported CPU | Supports 14th/12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700 |
| Expansion Slots | |
| PCI | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Ports & Connector | |
| Audio | 7.1-Channel High Definition Audio |
| Display Port (s) | 2x DisplayPort 1.4 |
| Internal I/O Ports | x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports |
| LAN Port (s) | Realtek RTL8125BG 2.5G LAN |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Supported Storage | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax |
| TPM (Trusted Platform Module) | 1x TPM pin header(Support TPM 2.0) |
| USB (s) | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 2x USB 3.2 Gen2 Type A (Rear) |
| Wireless Communication module | Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM |
| Other Features | |
| Special Features | 1x EZ LED Control switch 4x EZ Debug LED 1x 2-Digit Debug Code LED |
| Warranty Information | |
| Manufacturing Warranty | 03 years |
Description
MSI B760M GAMING PLUS WIFI 6E mATX Motherboard
The MSI B760M GAMING PLUS WIFI 6E DDR5 Motherboard is built to deliver a fast, reliable, and immersive experience for gamers, streamers, and power users. Designed for Intel’s 14th, 13th, and 12th Gen Core, Pentium Gold, and Celeron processors, this motherboard uses the LGA 1700 socket, offering a robust foundation for high-performance PC builds.
Equipped with four DDR5 memory slots, it supports up to 192GB of high-speed RAM with 6800+ MHz (OC) capabilities, ensuring smooth multitasking, quick load times, and maximum responsiveness for demanding games and applications.
Next-Gen Connectivity & Graphics Support
The motherboard features dual HDMI 2.1 and dual DisplayPort 1.4 outputs, supporting high-resolution multi-display setups and the latest visual standards—ideal for immersive gaming, creative work, and professional multitasking.
Stay ahead with ultra-fast networking, thanks to Dual 2.5G LAN and built-in Wi-Fi 6E, offering low-latency, high-bandwidth wireless and wired connectivity for smooth online gaming, streaming, and cloud workflows.
Premium Features for Power Users
With its compact Micro-ATX form factor, the MSI B760M GAMING PLUS WIFI 6E delivers premium performance in a space-efficient layout. Advanced features like PCIe 4.0 support, high-speed M.2 slots, and Turbo USB 3.2 Gen 2 ensure fast data transfers and excellent expansion options.
Built for Gamers & Enthusiasts
Whether you're a competitive gamer or a creator building a powerful workstation, this motherboard balances cutting-edge features with rock-solid stability. High-quality components and a durable PCB design ensure long-term reliability, even under intensive workloads.
If you’re looking to build a next-gen compact gaming or productivity system, the MSI B760M GAMING PLUS WIFI 6E DDR5 Motherboard is a top-tier choice—combining performance, speed, and modern connectivity in one powerful package.
