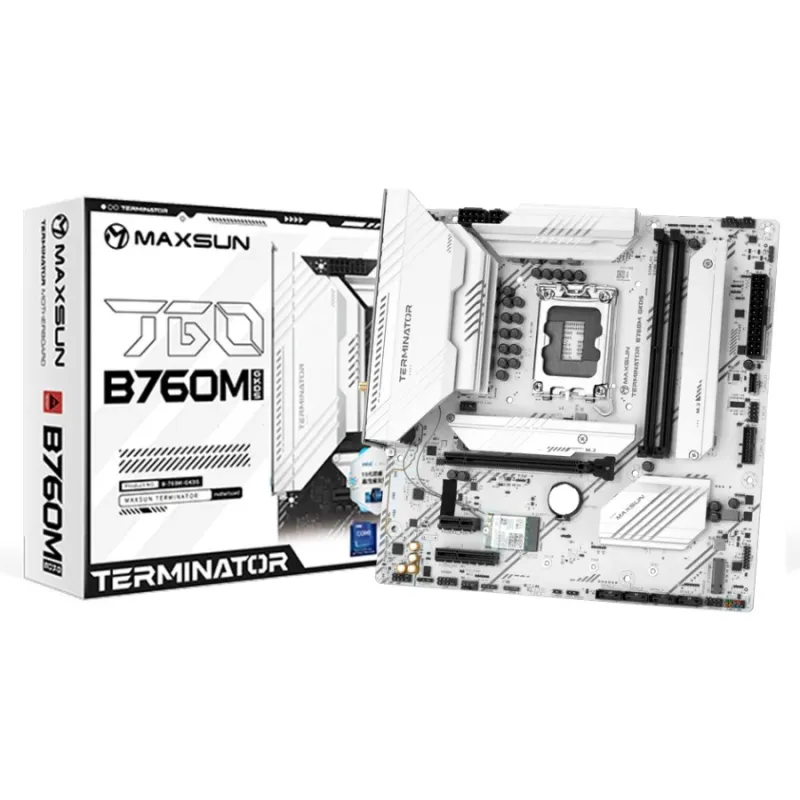

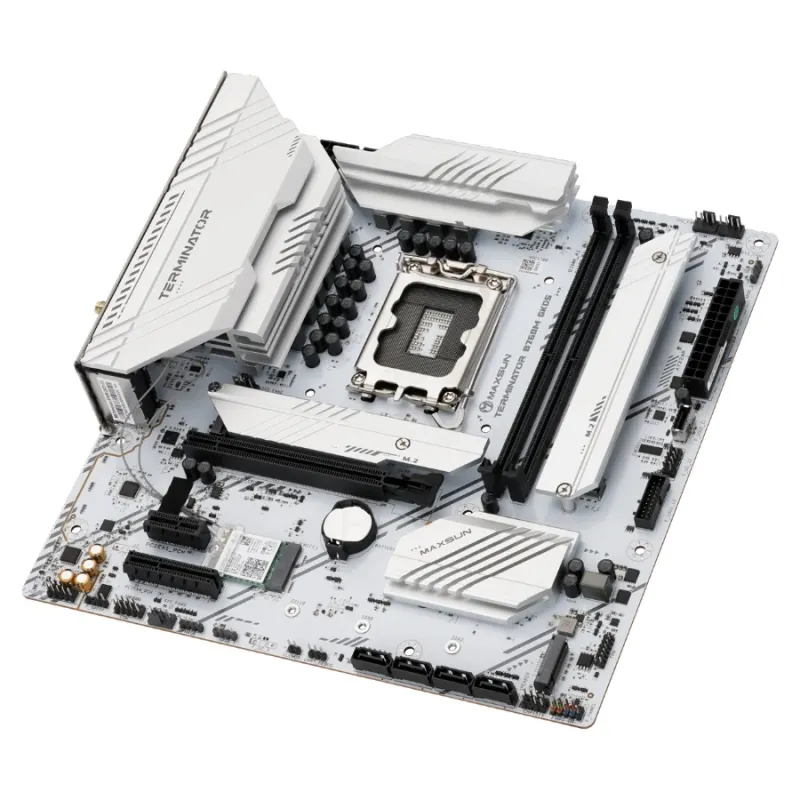

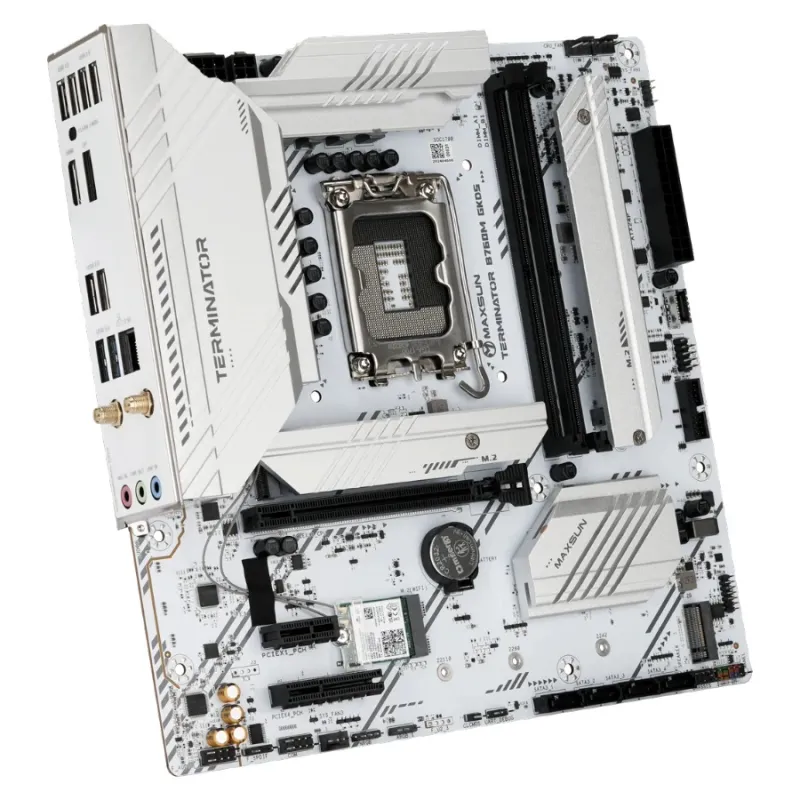

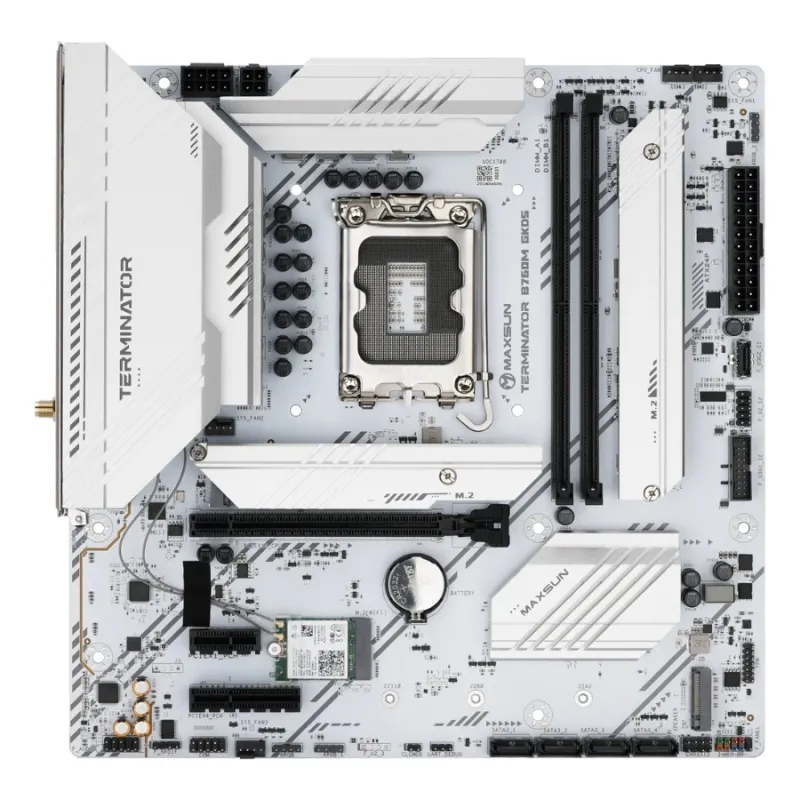

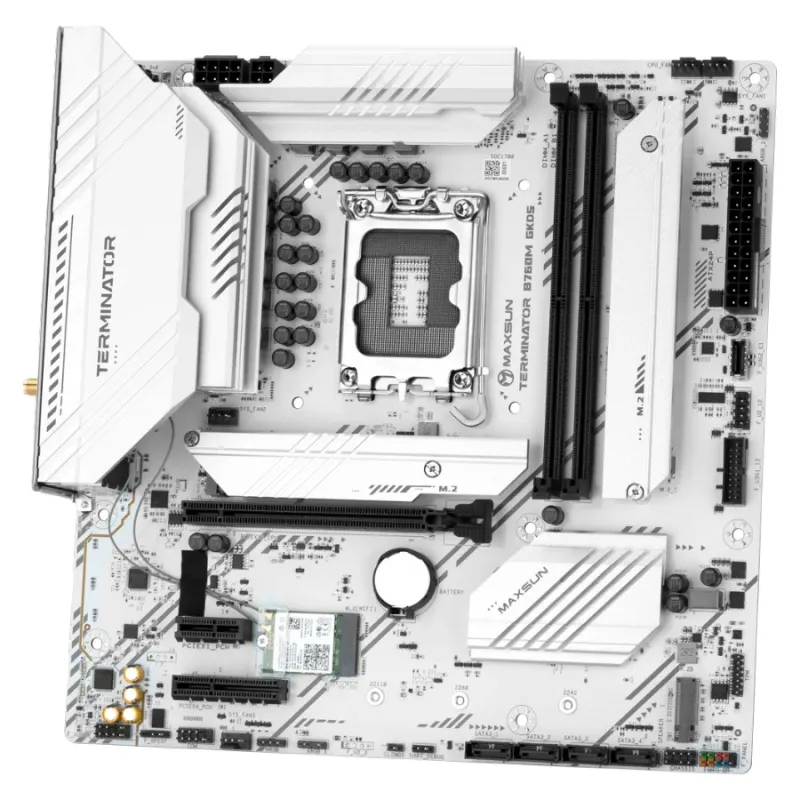

Maxsun Terminator B760M GKD5 ICE DDR5 2.5G ATX Gaming Motherboard
Key Features
- Chipset - Intel B760M
- Supported CPU - 12th/13th/14th Gen
- Socket - LGA1700
- Memory Max. - 96GB
Specification
| General | |
| Brand | Maxsun |
| Model | Terminator B760M GKD5 ICE |
| Memory | |
| Memory | Dual DDR5 slots capable of reaching speeds up to 8000MHz |
| Basic Information | |
| Chipset | Intel B760 High-speed chipset |
| Form Factor | Micro-ATX, 245mm x 245mm |
| Storage | |
| Storage | 3 x M.2 slots (PCIe X4/X2 channel SSD only) 1 x M.2_WIFI slot (CNVI network card only) 4 x SATA3.0 ports |
| Network & Connectivity | |
| Bluetooth | v5.3 |
| Connectivity | 2.5G network card for high-speed connections |
| Ports & Connector | |
| Audio | Integrated REALTEK ALC897 sound card chip |
| Display Port (s) | 1 x HDMI2.0 interface (up to 4096x2160@60Hz) |
| HDMI | 1 x HDMI2.0 interface (up to 4096x2160@60Hz) |
| PCI Card Slot | 1 x PCIEX16 5.0 slot 1 x PCIEX4 3.0 open slot |
| Power Connector | Includes a (1 x 24)-Pin ATX power connector and an (8+4)-Pin +12V power connector for stable power delivery. |

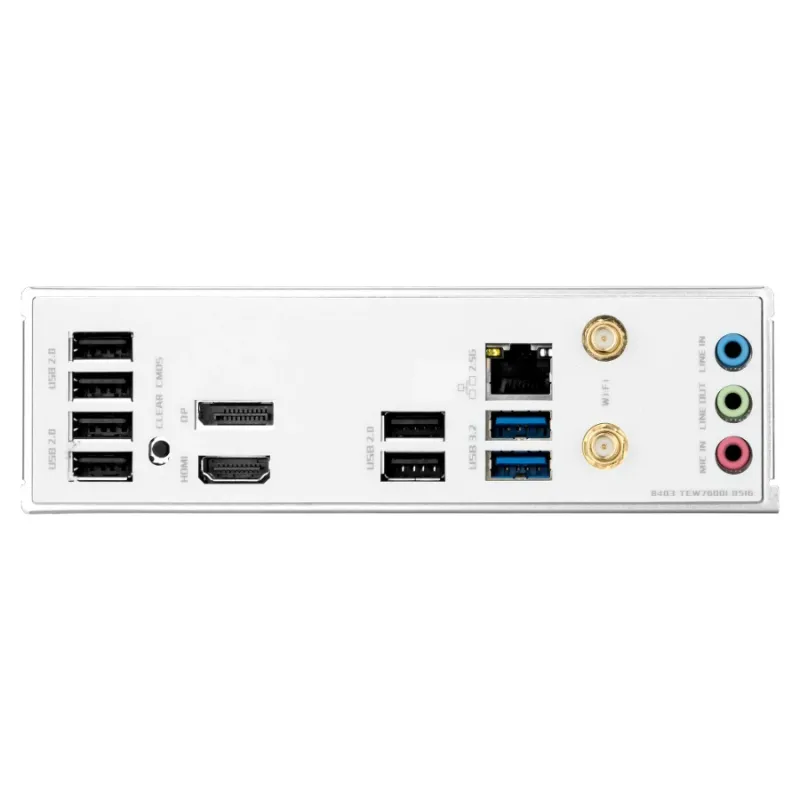

| USB (s) | Rear ports: 2 x USB3.2 GEN2 ports, 6 x USB2.0 ports Front interface: 1 x USB3.2 Gen2x2 Type-C (20G), 1 set (2) USB3.2 GEN1 pins |
| Power | |
| Power | 8+1+1 phase power design for stable performance |
| Physical Specification | |
| Color | White |
| Other Features | |
| Other Features | Aesthetic: Modern white theme appearance |
| Warranty Information | |
| Warranty | 03-Years |
Description
The Maxsun Terminator B760M GKD5 ICE DDR5 2.5G ATX Gaming Motherboard is a powerful and high-performance motherboard, designed to cater to the needs of gamers and PC enthusiasts. With support for 12th, 13th, and 14th Gen Intel Core processors, this motherboard offers advanced features such as DDR5 memory support, multiple M.2 storage slots, and high-speed networking. Its modern white-themed design and robust construction make it a stylish and reliable choice for building a high-end gaming or productivity PC in Bangladesh.
Maxsun Terminator B760M GKD5 ICE motherboard is built on the Intel B760 chipset and supports the LGA1700 socket, allowing it to handle Intel's 12th, 13th, and 14th Gen processors, including Pentium Gold and Celeron models. It features dual DDR5 memory slots with a maximum capacity of 96GB and supports overclocked memory speeds up to 8600 MHz. The motherboard also boasts three M.2 slots for high-speed SSDs, four SATA 3.0 ports, and expandable PCIe 5.0 x16 and PCIe 3.0 slots. With integrated Realtek ALC897 audio, dual LAN ports, and onboard Wi-Fi 6E and Bluetooth 5.3, the board ensures top-tier performance in both wired and wireless networking. The motherboard's power delivery system includes an 8+1+1 phase design for stable performance, making it ideal for demanding gaming and multitasking environments.
