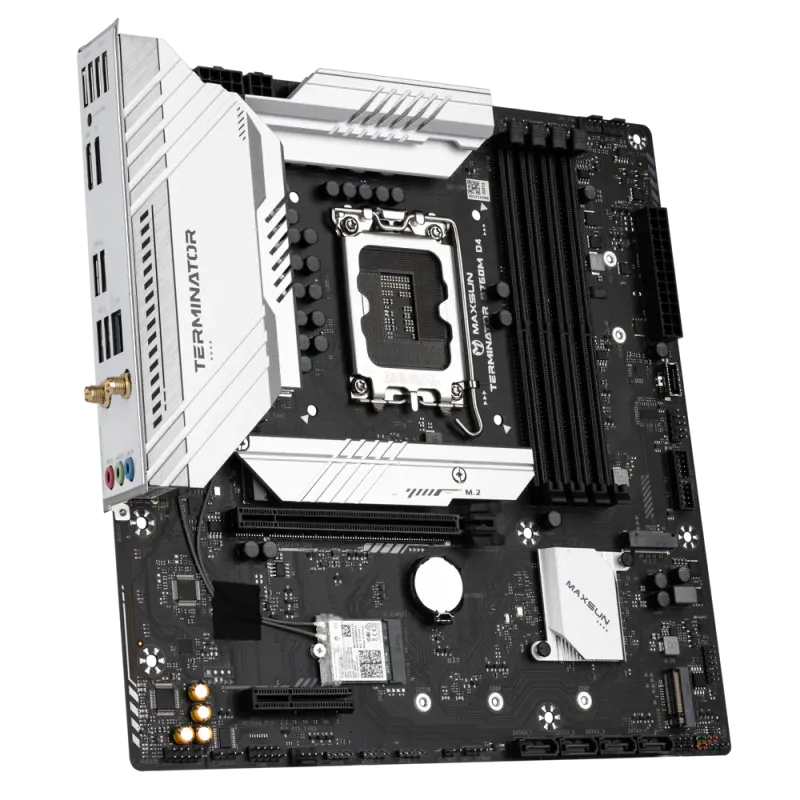

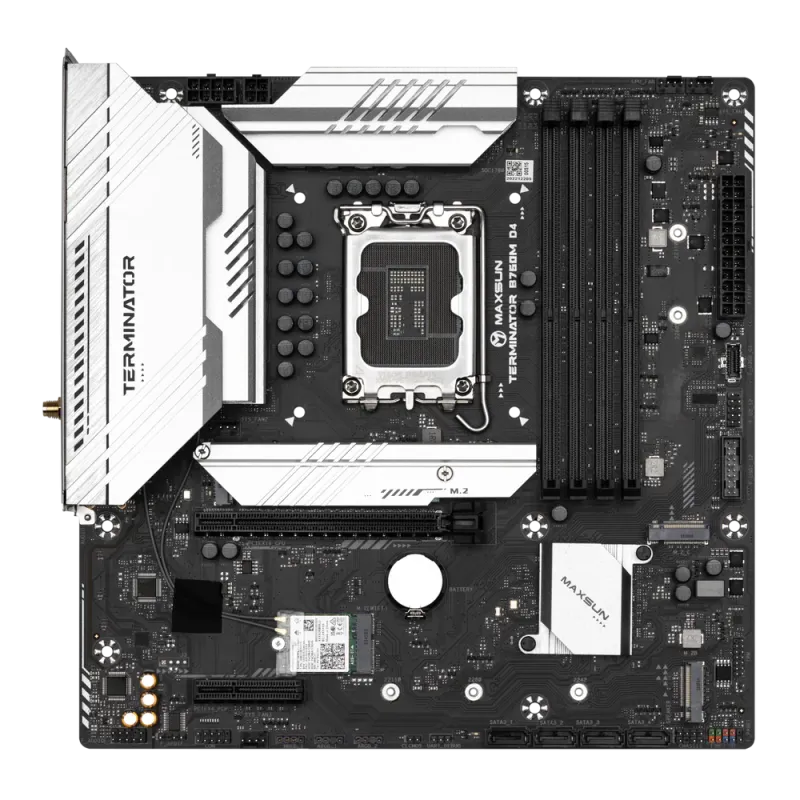

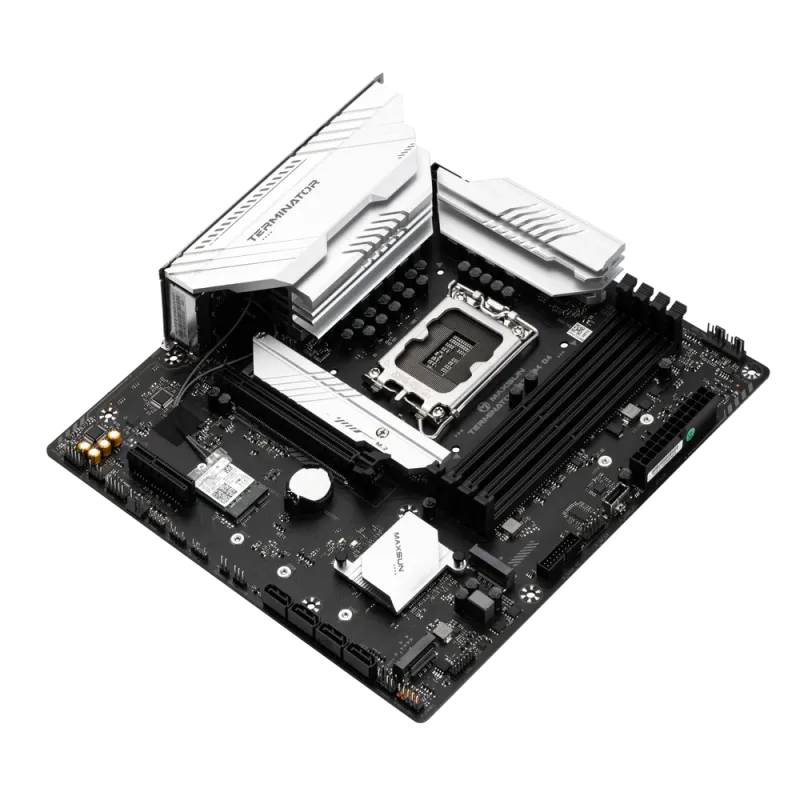

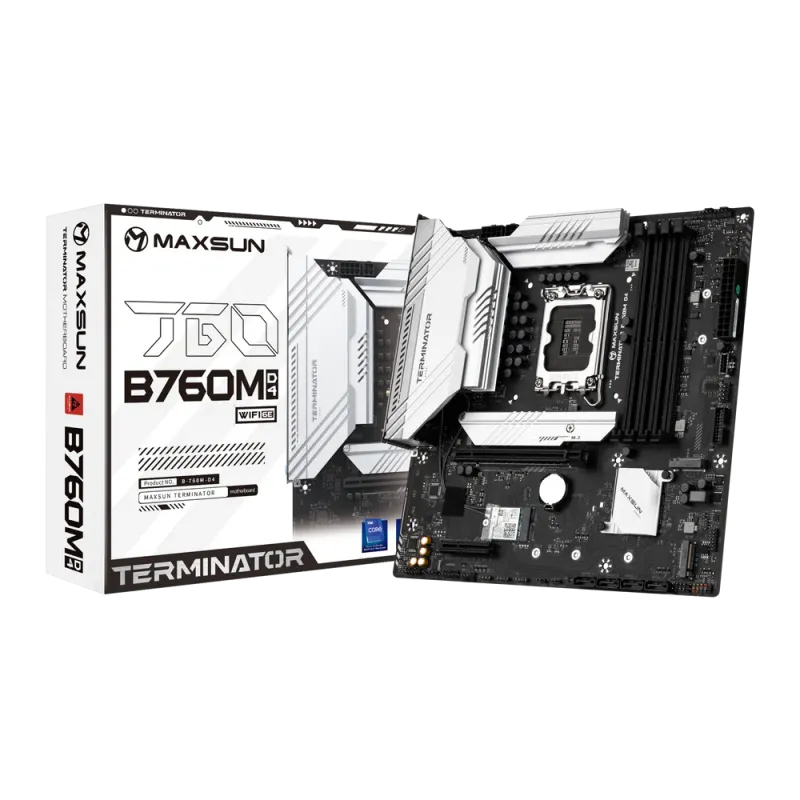

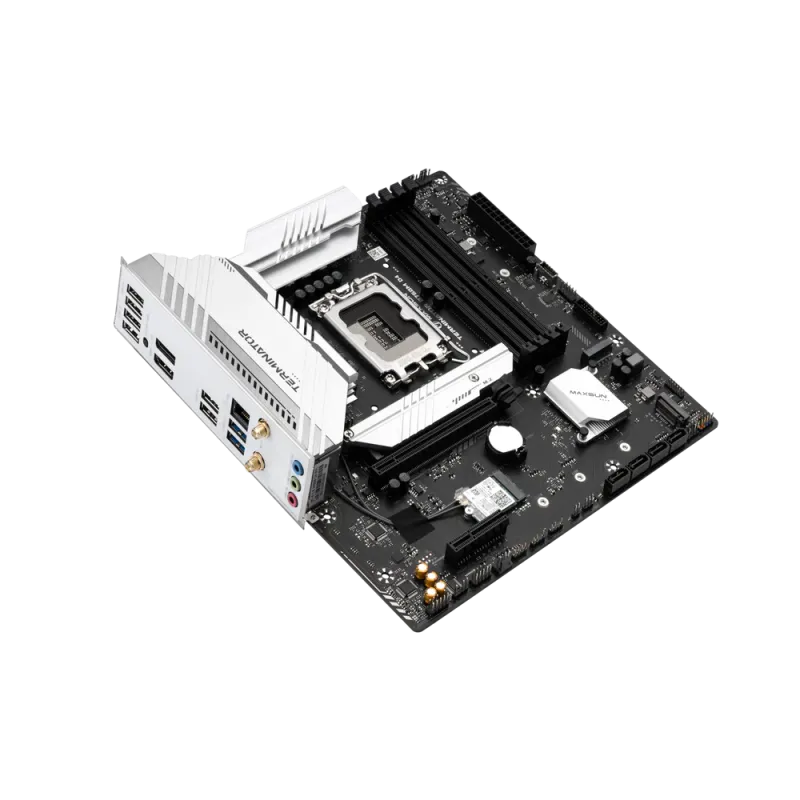

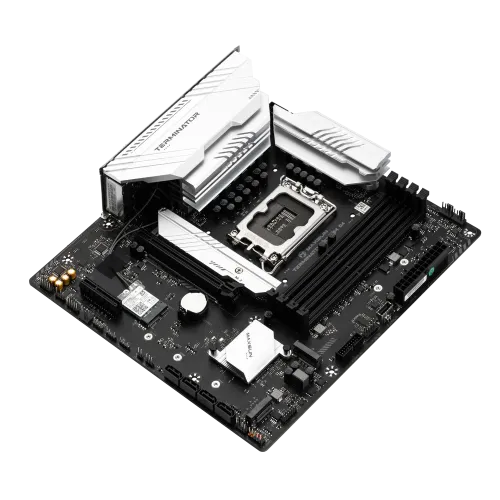

MAXSUN Terminator B760M D4 WIFI6E Motherboard

MAXSUN Terminator B760M D4 WIFI6E Motherboard
MAXSUN Terminator B760M D4 WIFI6E Motherboard
MAXSUN Terminator B760M D4 WIFI6E Motherboard
MAXSUN Terminator B760M D4 WIFI6E Motherboard
MAXSUN Terminator B760M D4 WIFI6E Motherboard
MAXSUN Terminator B760M D4 WIFI6E Motherboard
Save: 2,000৳
MAXSUN Terminator B760M D4 WIFI6E Motherboard
MAXSUN Terminator B760M D4 WIFI6E Motherboard
MAXSUN Terminator B760M D4 WIFI6E Motherboard
MAXSUN Terminator B760M D4 WIFI6E Motherboard
MAXSUN Terminator B760M D4 WIFI6E Motherboard
MAXSUN Terminator B760M D4 WIFI6E Motherboard
MAXSUN Terminator B760M D4 WIFI6E Motherboard
0 reviews • Write a review
  • Offer Price: 16,500৳
  • Regular Price: 18,500৳
  • Stock: In Stock
  • Brand: Maxsun
  • Model: Terminator B760M D4 WIFI6E

Key Features

  • Chipset: INTEL B760
  • LAN: RTL8125BG 2.5G LAN
  • OS: Windows 64-bit
  • Form Factor: M-ATX
View More Info

Payment Options

16,500৳18,500৳

Cash Discount Price

Online / Cash Payment
—/month

Regular Price: —

Compare Bank EMI Options
Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Specifications

General
Brand MAXSUN
Model Terminator B760M D4 WIFI6E
Memory
Memory 4x DDR4, Maximum Memory Capacity 128GB Memory Support DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MHz Supports Intel® XMP 2.0 OC Supports Dual-Controller Dual-Channel mode
Graphics
Graphics 1x DisplayPort 1.4 1x HDMI™port *HDMI™ port supports up to 4K@30Hz *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
Software
Operating System Support for Windows® 11 64-bit, Windows® 10 64-bit
Basic Information
Form Factor M-ATX 245mm x 245mm
Supported CPU Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700
Storage
Storage M.2_1 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
Audio & Microphone
Audio Realtek® ALC897 Codec 5.1-Channel High Definition Audio
Network & Connectivity
Connectivity Intel® Wi-Fi 6E AX211 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3
LAN Realtek® RTL8125BG 2.5G LAN
Ports & Connector
Internal I/O Ports 1x 24-pin Power Connector (ATX_PWR) 1x 8+4-pin Power Connector (CPU_PWR) 1x CPU Fan 3x System Fan 3 x M.2 slots (Key-M) 4x SATA 6Gb/s ports 2x 5V 3-Pin ARGB 1x 12V 4-Pin RGB 1x Clear CMOS 1x 4-Pin SPEAKER 1x Front Audio 1x M.2 slots (Key-E) 1x COM_A Port 1x TPM pin header (Support TPM 2.0)

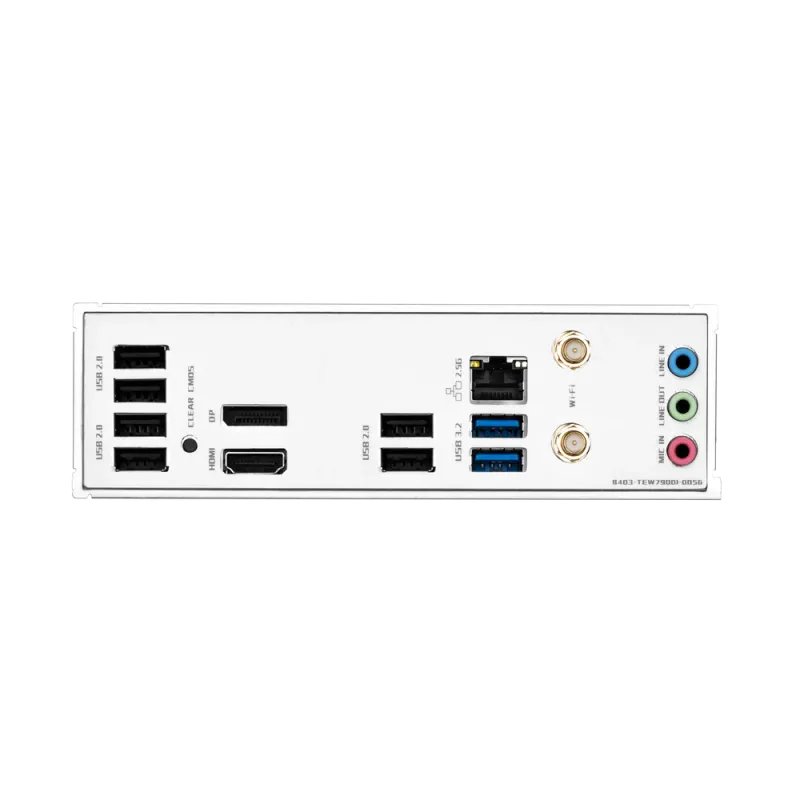

USB (s) Front USB (Total 5 ports): 1x USB 3.2 Gen2x2 Type C 2x USB 3.2 Gen1 Type A 2x USB 2.0 Rear USB (Total 8 ports): 2x USB 3.2 Gen1 Type A 6x USB 2.0
Warranty Information
Warranty 03 Years

Description

MAXSUN Terminator B760M D4 WIFI6E Motherboard

The Maxsun Terminator B760M D4 WIFI6E Motherboard, available at SkyLandBD, is a top-tier motherboard designed for high-performance computing. It features an Intel B760 chipset and supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold, and Celeron® Processors with an LGA 1700 socket. The motherboard supports DDR4 memory with a maximum capacity of 128GB and a wide range of bus speeds from 2133 MHz to 5333 MHz (O.C.). It also supports Intel® XMP 2.0 OC and dual-controller dual-channel mode. For graphics, it offers 1x DisplayPort 1.4 and 1x HDMI™ port that supports up to 4K@30Hz. The motherboard also includes 1x PCIe 5.0 x16 slot and 1x PCIe 3.0 x4 slot for expansion. For storage, it supports M.2 SSDs (2242/2280/22110) with PCIe 4.0 x4 mode and has 4x SATA 6Gb/s ports. It also supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices. The motherboard features a total of 13 USB ports, a Realtek® RTL8125BG 2.5G LAN, and Intel® Wi-Fi 6E AX211 for wireless connectivity. It also supports Bluetooth® 5.3. The motherboard features a Realtek® ALC897 codec for audio, providing a 5.1-channel high-definition audio experience. The motherboard also includes a variety of internal I/O ports and features 4x distributed debug LED. It supports Windows® 11 64-bit and Windows® 10 64-bit operating systems. The Maxsun Terminator B760M D4 WIFI6E Motherboard comes in an M-ATX form factor with dimensions of 245mm x 245mm. This high-performance motherboard is available at SkyLandBD.

Write a review

Please login or register to review

What is the price of MAXSUN Terminator B760M D4 WIFI6E Motherboard in Bangladesh?

The latest price of MAXSUN Terminator B760M D4 WIFI6E Motherboard in Bangladesh is 16,500৳. You can buy the MAXSUN Terminator B760M D4 WIFI6E Motherboard at the best price from our website or visit any of our showrooms.
