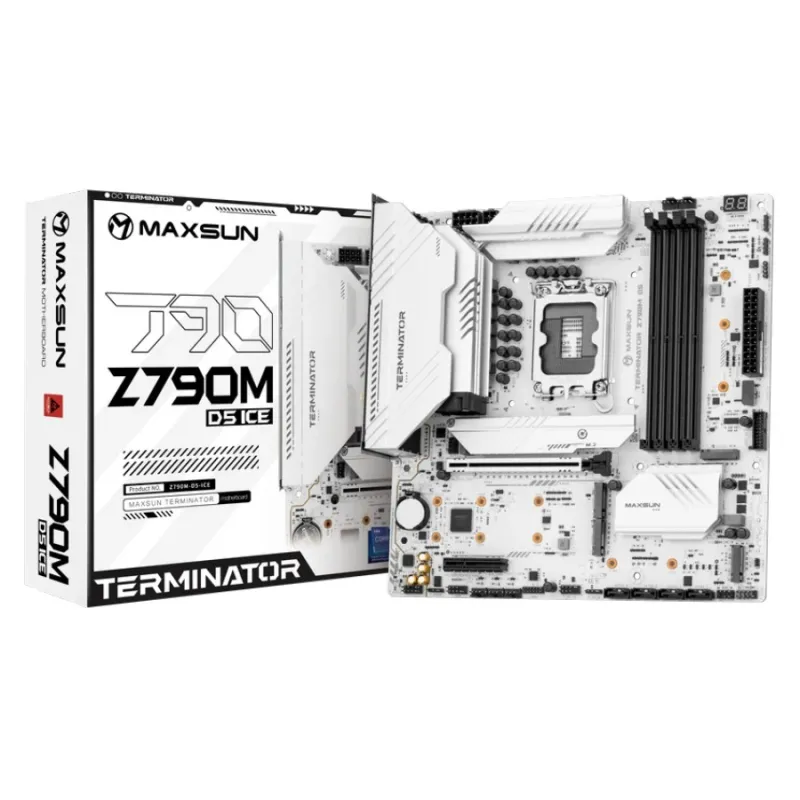

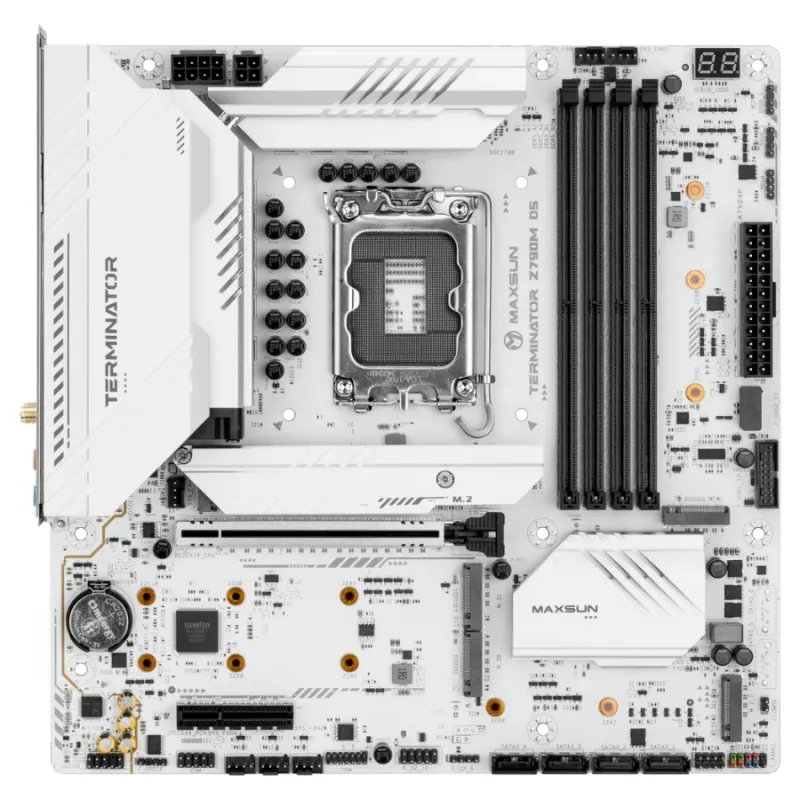

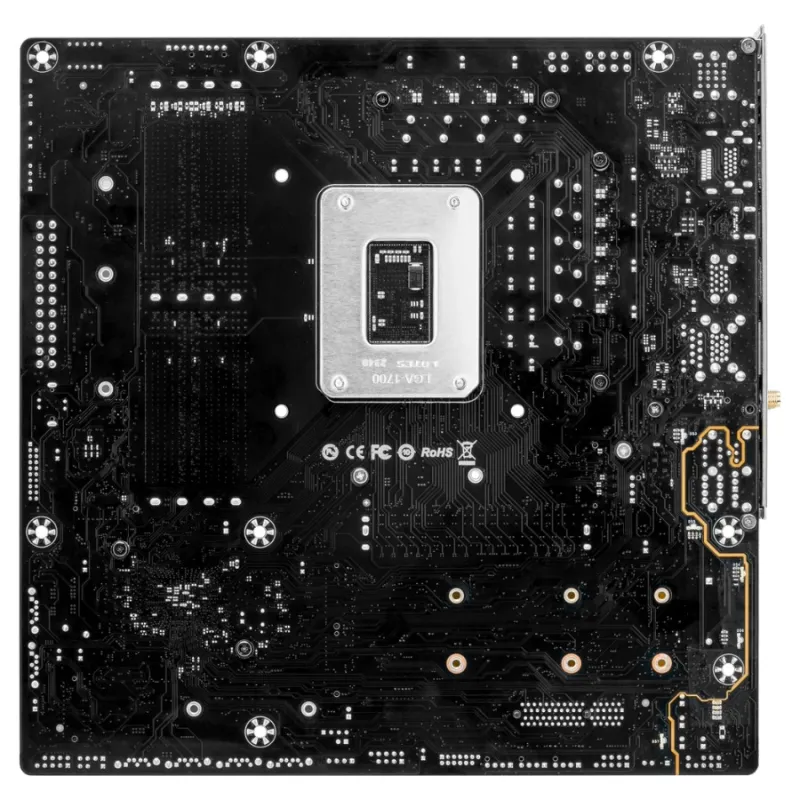

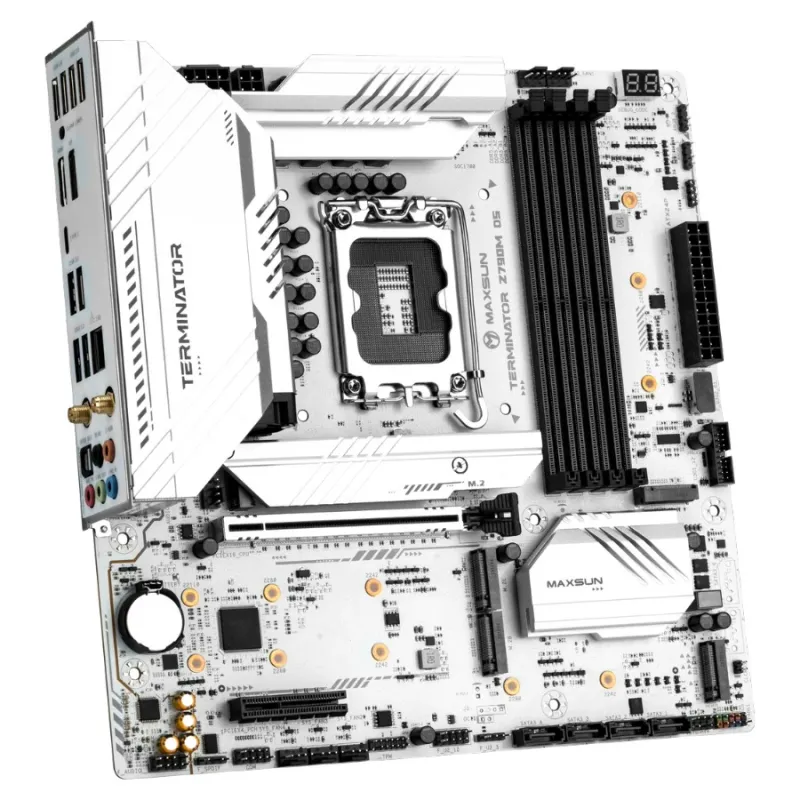

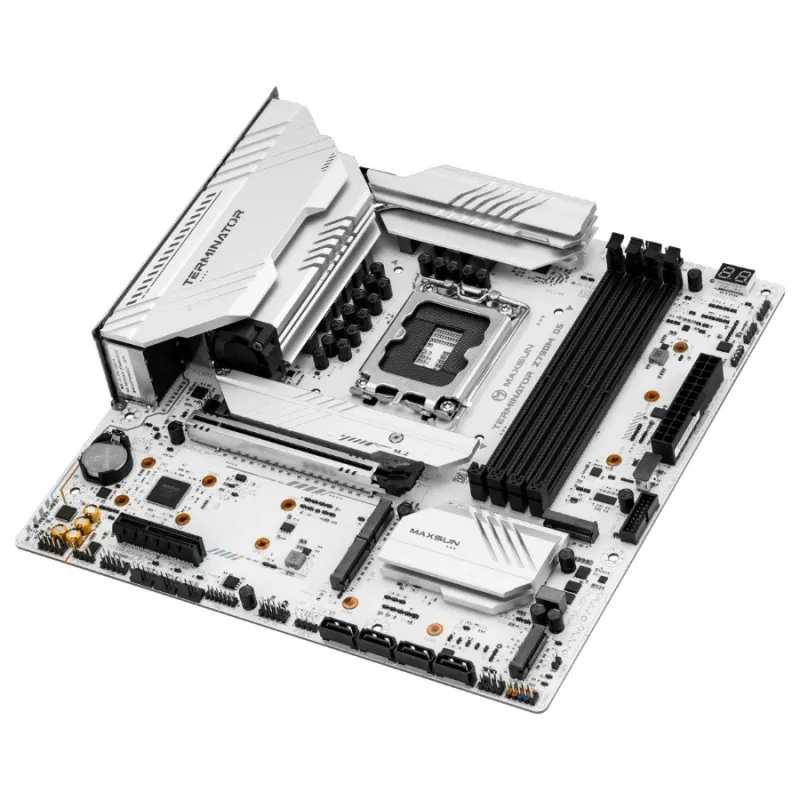

Maxsun MS-Terminator Z790M ICE WIFI DDR5 LGA1700 Motherboard
Key Features
- Intel Z790 Chipset: LGA 1700.
- DDR5 Memory: 4 slots, up to 192GB
- 5x M.2 Slots: PCIe 4.0, NVMe support,
- 2.5G LAN & Wi-Fi 6E
Specification
| General | |
| Brand | Maxsun |
| Model | MS-Terminator Z790M ICE |
| Memory | |
| Memory | 4x DDR5, Maximum Memory Capacity 192GB Memory Support 7600 (OC)/ 7400 (OC)/7200 (OC)/7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode |
| Graphics | |
| Graphics | 1x DisplayPort 1.4 1x HDMIport |
| Software | |
| Operating System | Support for Windows 11 64-bit, Windows 10 64-bit |
| Basic Information | |
| Chipset | INTEL Z790 |
| Form Factor | M-ATX 245mm x 245mm |
| Supported CPU | Supports 12th/13th/14th Gen Intel Core Processors, Pentium Gold and Celeron Processors |
| Audio & Microphone | |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| Network & Connectivity | |
| Bluetooth | Bluetooth 5.3 |
| WiFi | Realtek RTL8125BG 2.5G LAN |
| LAN | Intel Wi-Fi 6E AX211 |
| Ports & Connector | |
| HDMI | 1x HDMI port |
| Internal I/O Ports | 1x 24-pin Power Connector(ATX_PWR) 2x 8-pin+12VPower Connector(CPU_PWR) 1x 4-pin CPU Fan 5 x M.2 slots (Key-M) 4x SATA 6Gb/s ports 1x M.2 slots (Key-E) 1x 4-Pin SPEAKER 2x 5V 3-Pin ARGB 1x 12V 4-Pin RGB 1x 2-pin Clear CMOS 1x Front Audio 1x COM_A Port 1x TPM pin header(Support TPM 2.0) |
| PCI Card Slot | 1x PCIe 5.0 x16 slot 1x PCIe 3.0 x4 slot |
| Supported Storage | M.2_1 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2280(supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode) M.2_5 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |

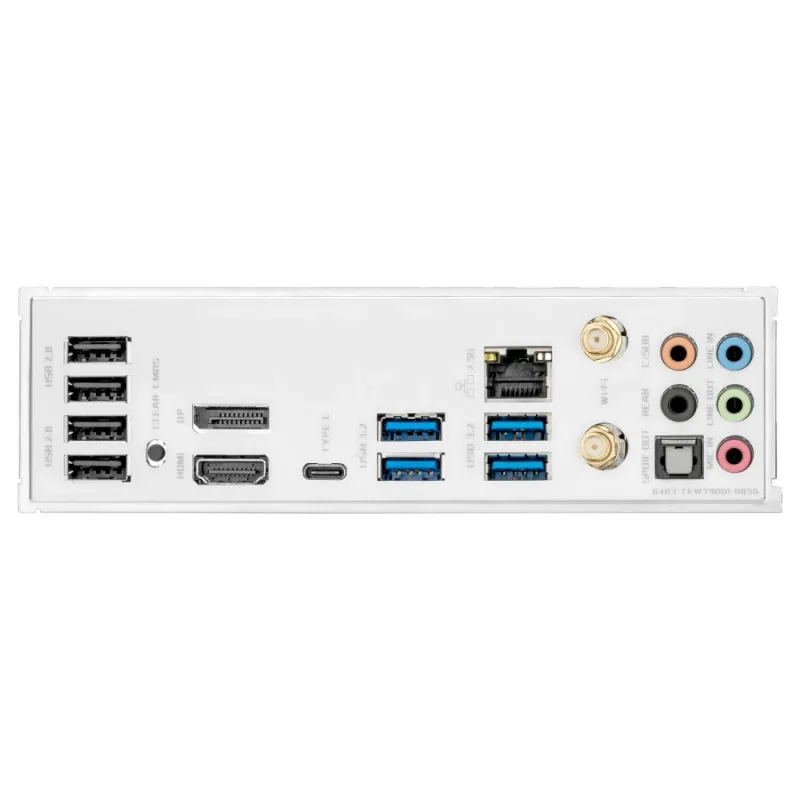

| USB (s) | Front USB (Total 6 ports) 1x USB 3.2 Gen2x2 Type C 2x USB 3.2 Gen1 Type A 3x USB 2.0 *Rear USB (Total 9 ports) 1x USB 3.2 Gen2x2 Type C 4x USB 3.2 Gen1 Type A 4x USB 2.0 |
| Warranty Information | |
| Warranty | 03 Years |
Description
Reviews (0)
Get specific details about this product from customers who own it.
Frequently Asked Questions (FAQs)
Common questions and answers regarding Maxsun MS-Terminator Z790M ICE WIFI DDR5 LGA1700 Motherboard
What is the price of Maxsun MS-Terminator Z790M ICE WIFI DDR5 LGA1700 Motherboard in Bangladesh? expand_more
The latest price of Maxsun MS-Terminator Z790M ICE WIFI DDR5 LGA1700 Motherboard in Bangladesh is 24,750৳. You can purchase it at the best price from our website or visit any of our Skyland Computer outlets.
Is Maxsun MS-Terminator Z790M ICE WIFI DDR5 LGA1700 Motherboard currently in stock at Skyland? expand_more
Yes, Maxsun MS-Terminator Z790M ICE WIFI DDR5 LGA1700 Motherboard is currently In Stock at Skyland. You can order online for fast home delivery across Bangladesh or in-store pickup.
What warranty comes with Maxsun MS-Terminator Z790M ICE WIFI DDR5 LGA1700 Motherboard? expand_more
Maxsun MS-Terminator Z790M ICE WIFI DDR5 LGA1700 Motherboard comes with 03 Years warranty. Skyland Computer ensures 100% genuine products with official service and warranty support.
