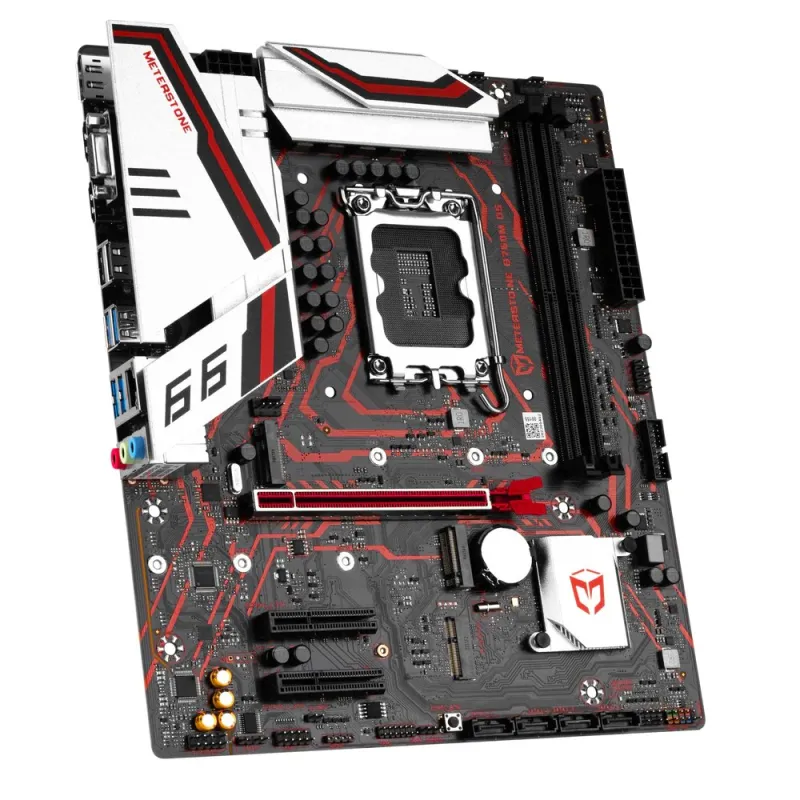

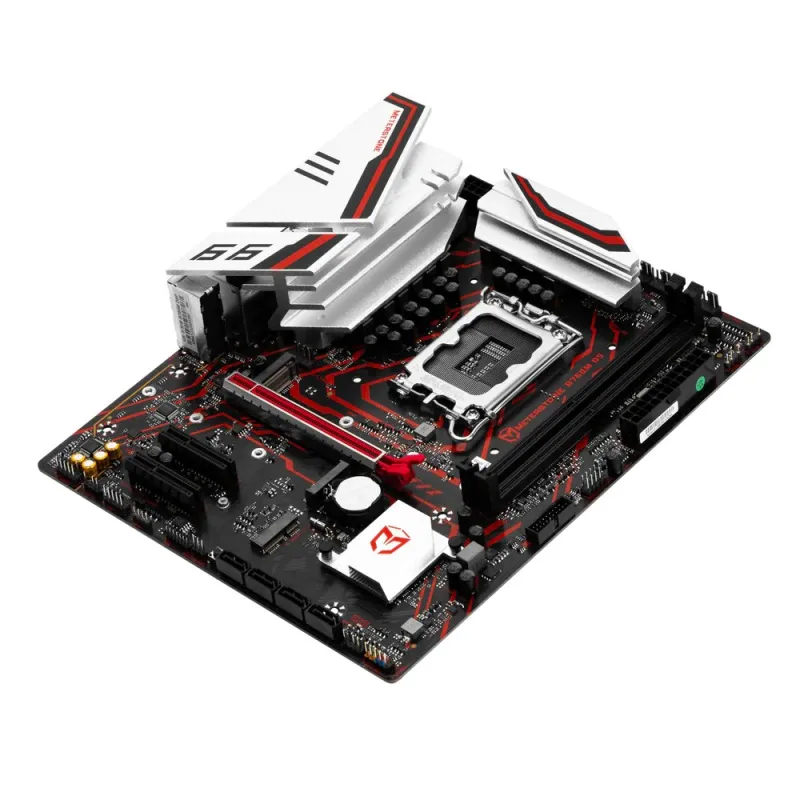

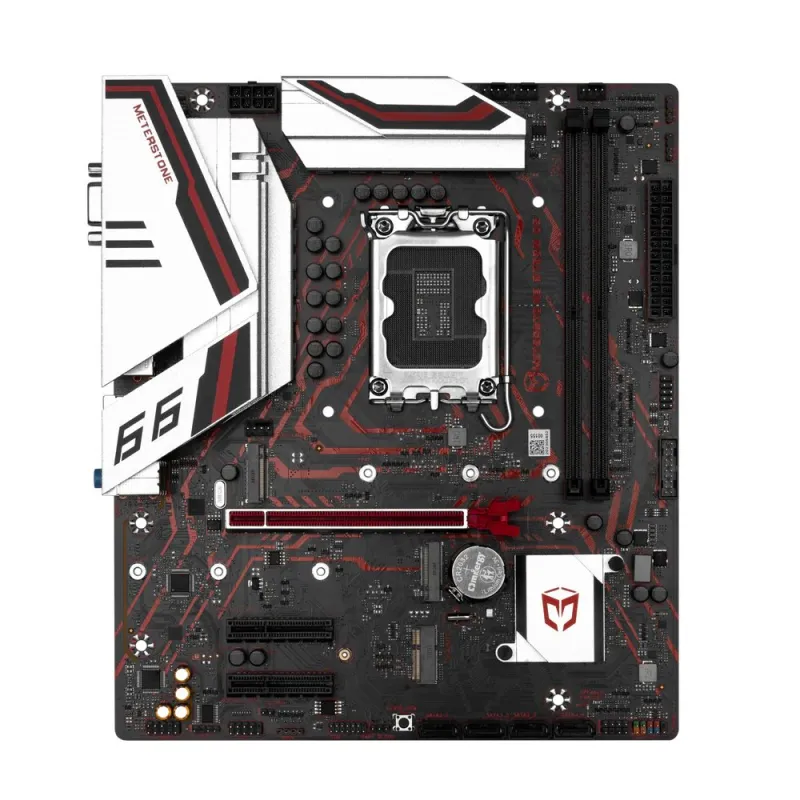

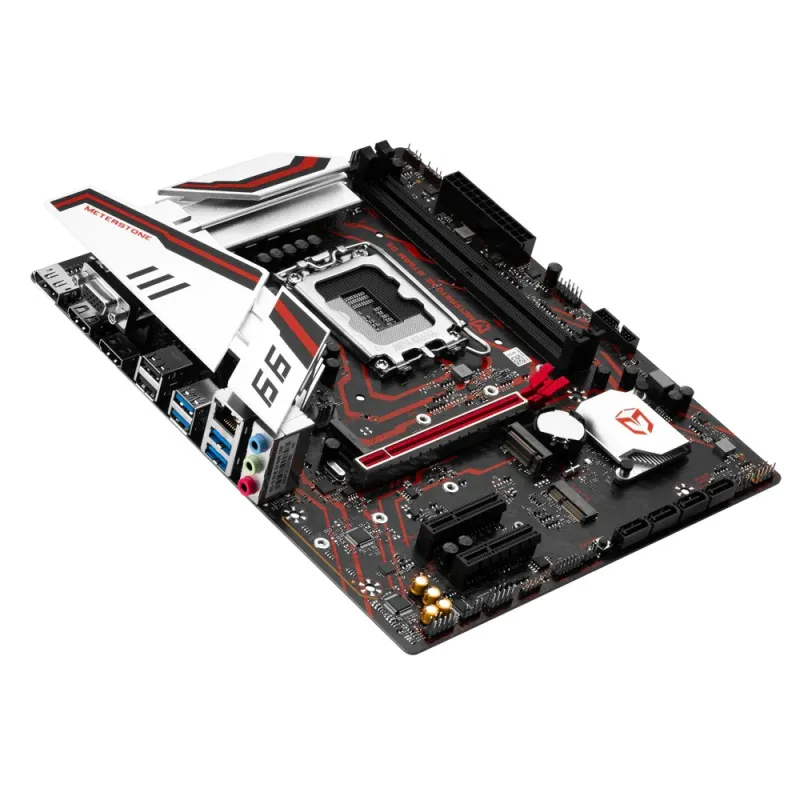

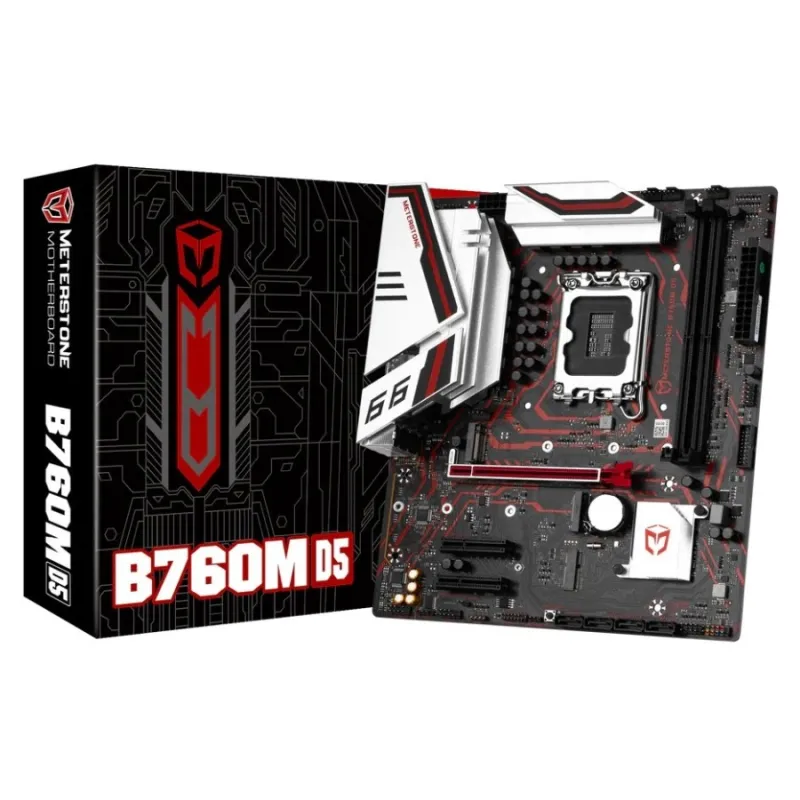

Maxsun MS-Meterstone B760M D5P DDR5 Micro ATX Motherboard
Key Features
- Intel Core 14th Gen CPU
- 10-Phase Core 50A Dr. Mos Power Supply
- DDR5 XMP 7600MHz Potential
- 2.5G Wired NIC
Specification
| General | |
| Brand | Maxsun |
| Model | MS-Meterstone B760M D5P |
| Memory | |
| Memory | 2x DDR5, Maximum Memory Capacity 96GB Memory Support DDR5 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode |
| Graphics | |
| Graphics | 1x DisplayPort 1.4 2x HDMI port *HDMI port supports up to 4K@30Hz 1x VGA *Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. |
| Software | |
| Operating System | Support for Windows 11 64-bit, Windows 10 64-bit |
| Basic Information | |
| Audio | Realtek ALC897 Codec 5.1-Channel High Definition Audio |
| Chipset | INTEL B760 |
| Form Factor | M-ATX 245mm x 210mm |
| Supported CPU | Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700 |
| Storage | M.2_1 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
| Ports & Connector | |
| Internal I/O Ports | 1x 24-PIN motherboard ATX power supply 1x 8-PIN motherboard ATX 12V power supply port, 12V input, 1x sets of system fan pins and 1x group of CPU fan pins, 1x group of PUMP fan pinslx group chassis front control panel pin (F PANEL) One 12V NRGB pin and two 5V ARGB pins |
| LAN Port (s) | Realtek RTL8125BG 2.5G LAN |
| RAID | Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices |

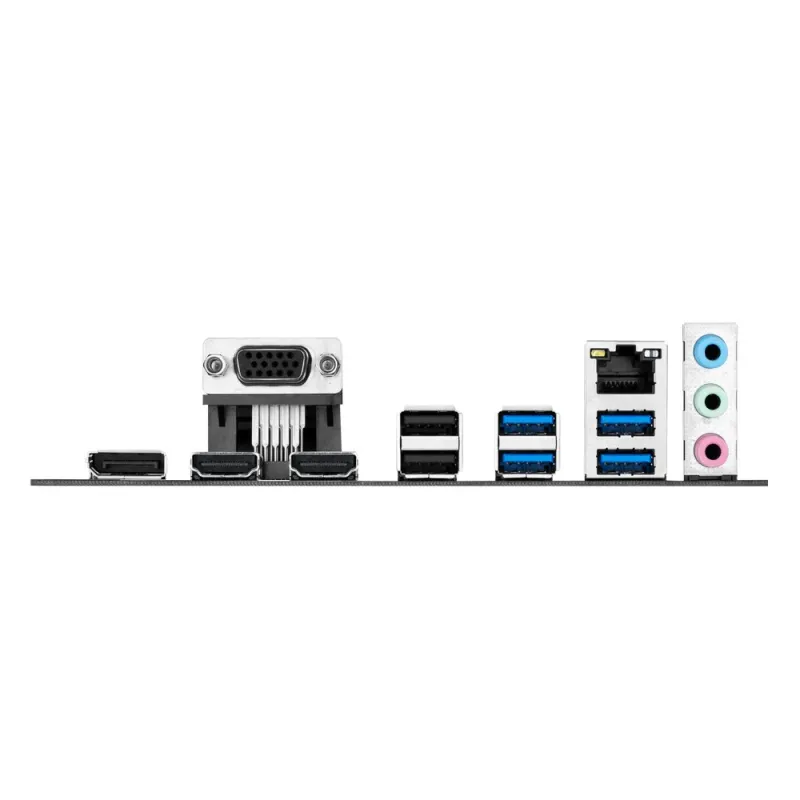

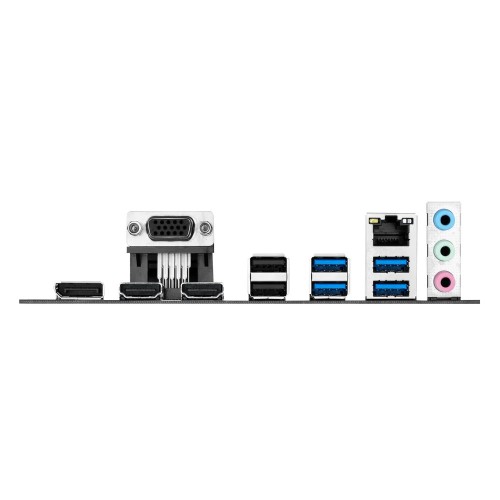

| USB (s) | *Front USB (Total 4 ports) 2x USB 3.2 Gen1 Type A 2x USB 2.0 *Rear USB (Total 6 ports) 4x USB 3.2 Gen1 Type A 2x USB 2.0 |
| Warranty Information | |
| Warranty | 03 Years |
