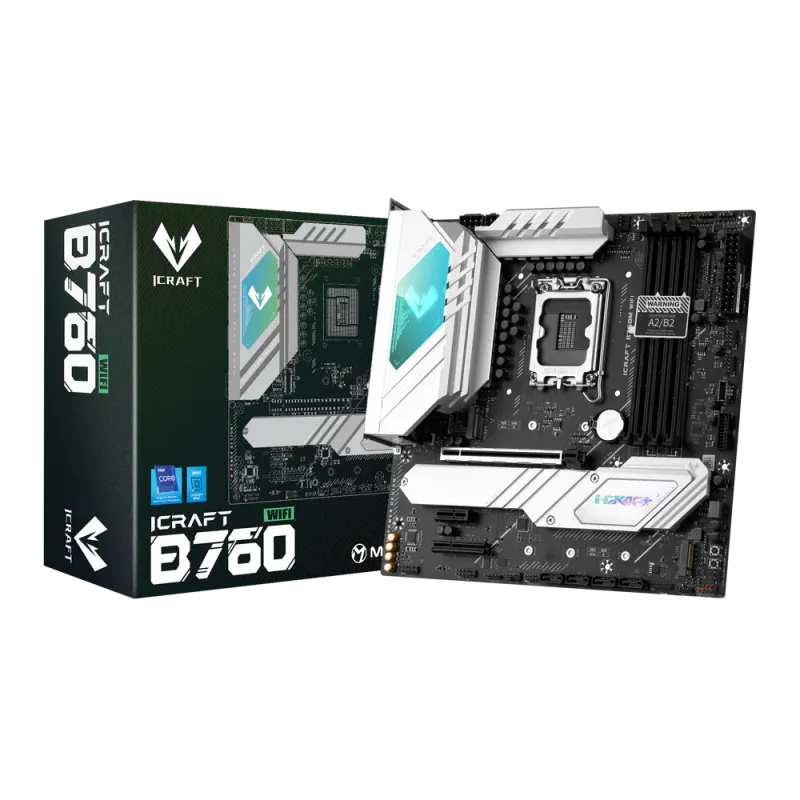

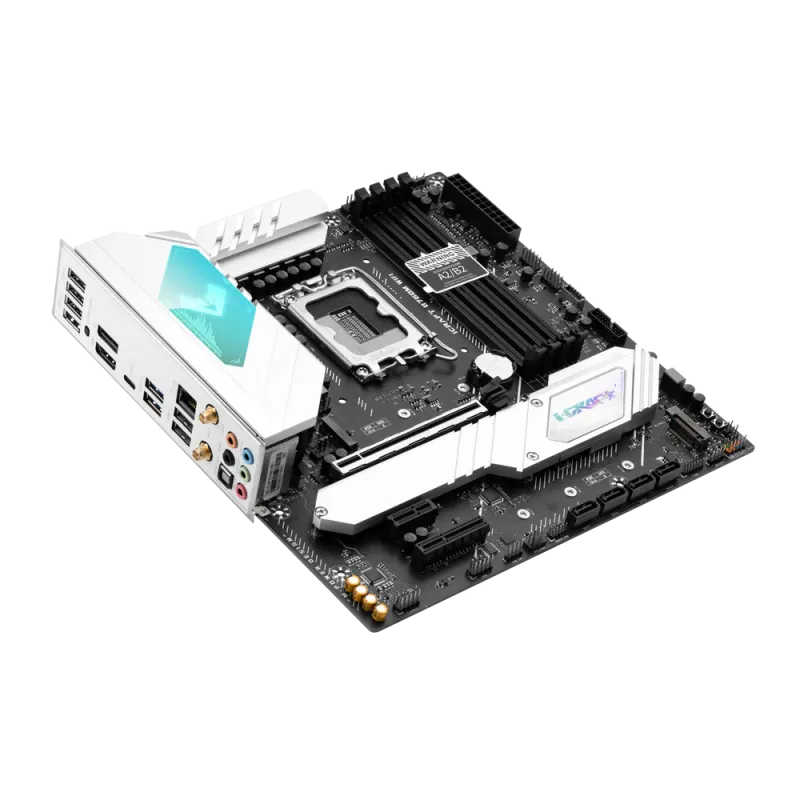

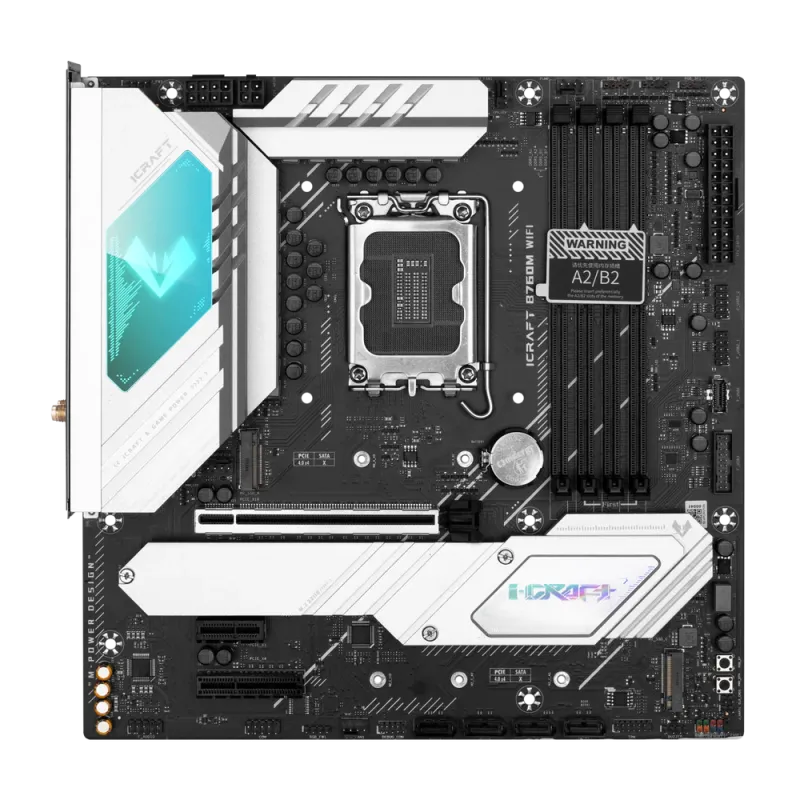

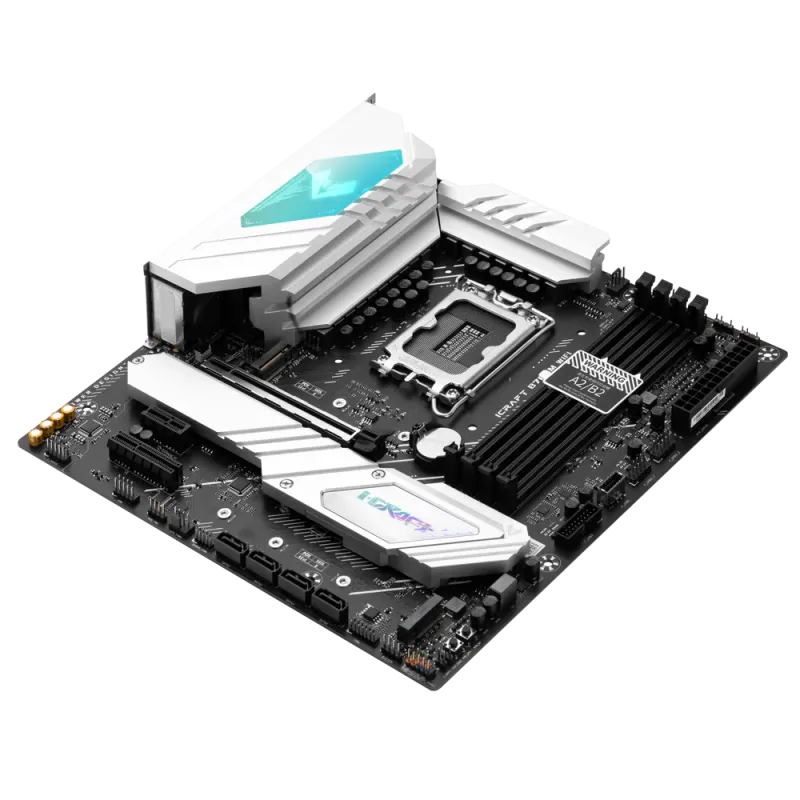

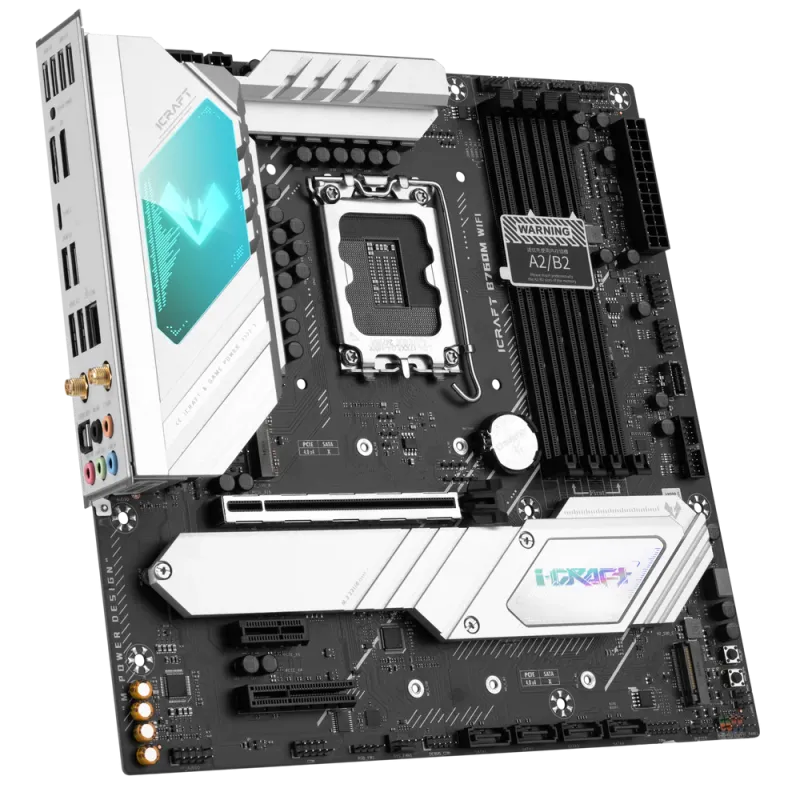

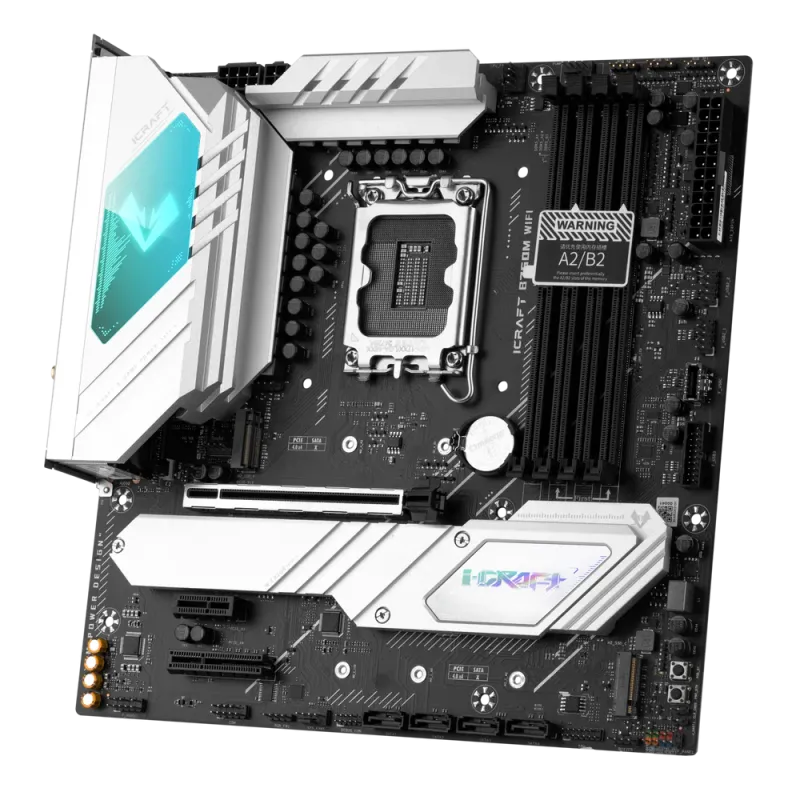

Maxsun ICraft B760M Wi-Fi 6E DDR5 Micro-ATX Gaming Motherboard
Key Features
- Chipset - Intel B760
- Supported CPU - 12th/ 13th Gen Intel Core Processors
- Socket - LGA1700
- Memory Max. - 192GB
Specification
| General | |
| Brand | Maxsun |
| Model | ICraft B760M |
| Memory | |
| Memory | Memory Channel: Dual Memory Max: 192GB Memory MHz: 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz |
| Type | DDR5 |
| Slots | 4 |
| Graphics | |
| Graphics | Graphics Chipset: Integrated With Processor |
| Software | |
| Operating System | Windows 10, Windows 11 |
| Basic Information | |
| Chipset | Intel B760 |
| Form Factor | Micro-ATX |
| Supported CPU | 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors |
| Storage | |
| Storage | Storage Interface: 6.0Gb/s |
| Storage Type | 3 x M.2, (1 x M.2, type 2242/2280 (supports PCIe 4.0 x4 mode), 1 x M.2, type 2242/2280/22110 (supports PCIe 4.0 x4 mode), 1 x M.2, type 2242/2280/22110 (supports PCIe 4.0 x4) |
| Audio & Microphone | |
| Audio | Audio Chipset: Realtek ALC897 Codec |
| Network & Connectivity | |
| Bluetooth | V: 5.3 |
| WiFi | V: 6E AX211 |
| LAN | LAN Chipset: Realtek RTL8125BG 2.5G LAN LAN Speed (Mbps):10/ 100/ 1000/ 2500Mbps |
| Ports & Connector | |
| HDMI | 1 |
| Ports | DisplayPort (DP): 1 SATA Port: 4 TPM Port: 1 COM Port: 1 |

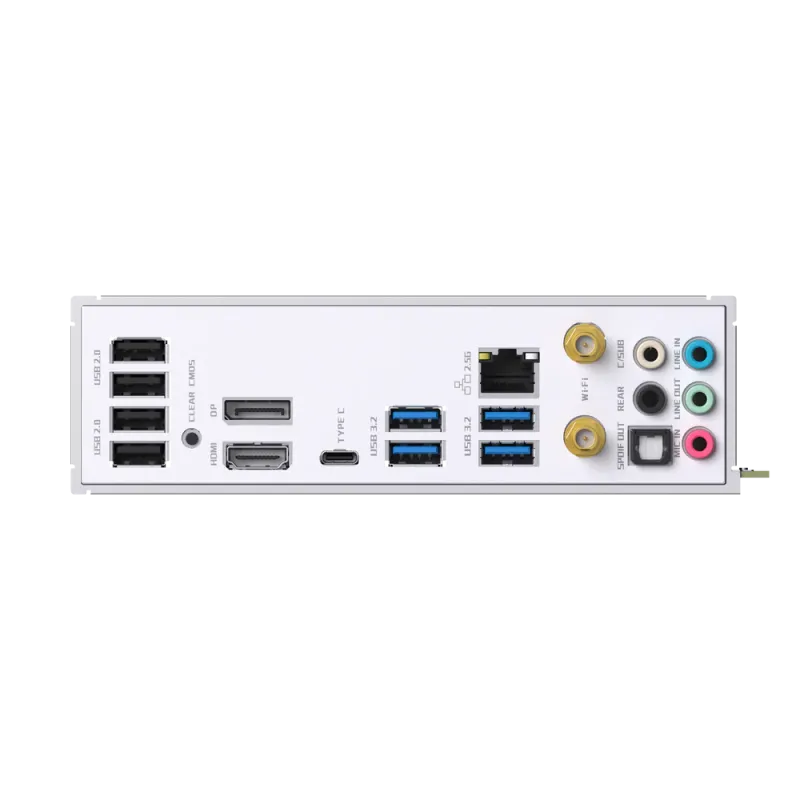

| USB (s) | 1 x USB 3.2 Gen2 Type C (20Gbps), 4 x USB 3.2 Gen1 Type A, 4 x USB 2.0 |
| Power | |
| Power Consumption | 60W |
| Physical Specification | |
| Color | Black & White |
| Other Features | |
| Other Features | Raid Support: 0, 1, 5, 10 12+3+2 phases power supply, 60A Dr.Mos, DDR5 XMP 7000MHz+ overclocking potential, 2.5G network card PCIe 5.0, 20G Type-C |
| Warranty Information | |
| Warranty | 03 years |
Description
The Maxsun ICraft B760M Wi-Fi 6E DDR5 Micro-ATX Gaming Motherboard is designed for gamers and PC builders looking for a reliable, high-performance platform for their next build. Supporting 12th and 13th Gen Intel Core processors, this motherboard comes with DDR5 memory support, PCIe 5.0, Wi-Fi 6E, and Bluetooth 5.3. Its Micro-ATX form factor makes it ideal for those who want to build compact but powerful systems. The motherboard also offers integrated graphics, multiple M.2 slots for fast storage, and extensive connectivity options, making it a versatile choice for users in Bangladesh.
Maxsun ICraft B760M motherboard is powered by the Intel B760 chipset and supports LGA1700 processors, including the 12th and 13th Gen Intel Core, Pentium Gold, and Celeron processors. It features four DDR5 memory slots, supporting up to 192GB of RAM with overclocking speeds up to 6800+ MHz. The board offers three M.2 slots for ultra-fast storage solutions, PCIe 5.0 x16 for graphics cards, and multiple PCIe 3.0 slots for expansion. Integrated Wi-Fi 6E and Bluetooth 5.3 ensure fast and seamless wireless connectivity. The Realtek ALC897 audio chipset delivers 7.1-channel high-definition audio, while the Realtek RTL8125BG 2.5G LAN chipset provides robust wired network performance. The board includes USB 3.2 Gen2 Type-C, HDMI, DisplayPort, SATA, and ARGB headers for comprehensive connectivity and customization options. It also supports RAID 0, 1, 5, and 10 for enhanced data security and performance.
