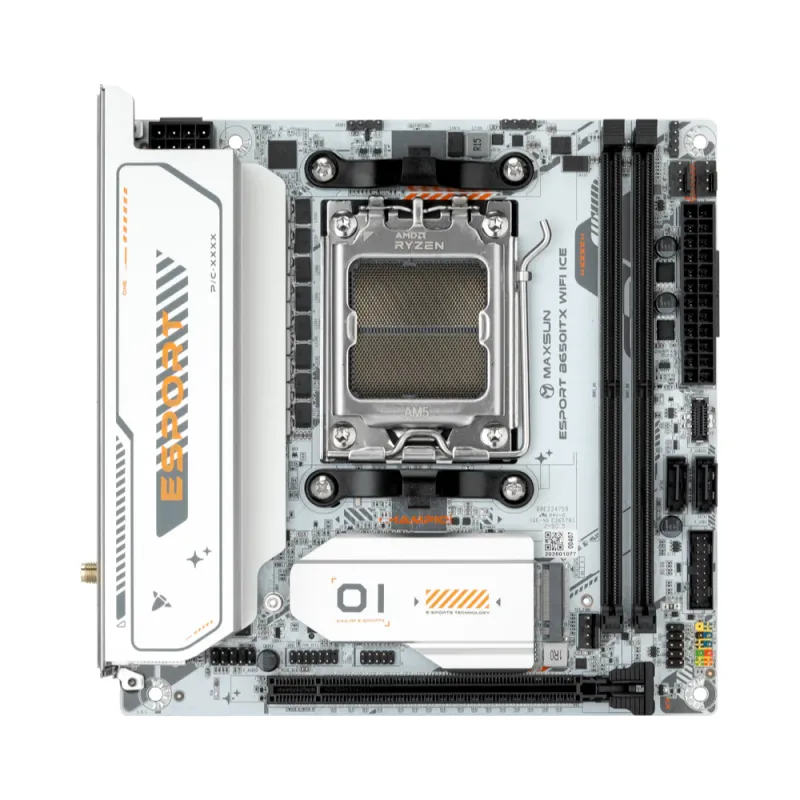

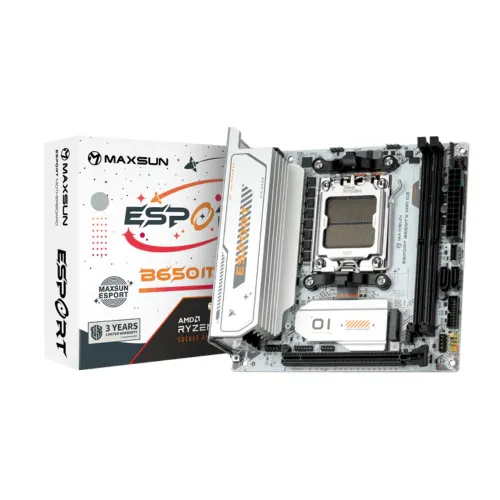

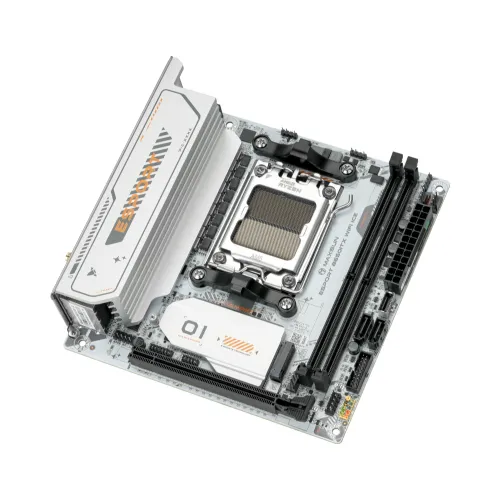

Maxsun MS-eSport B650ITX WIFI ICE AM5 Motherboard
Key Features
- AM5 socket: Supports Ryzen 7000/8000/9000 CPUs
- Dual DDR5 slots: Up to 96GB, 8000MHz OC
- PCIe 5.0 x16: For next-gen GPU support
- WiFi 6 & 2.5G LAN: Fast and reliable connectivity
- RGB lighting: Customizable aesthetics
Specification
| General | |
| Brand | Maxsun |
| Model | MS-eSport B650ITX WIFI ICE |
| Memory | |
| Type | DDR5 |
| Slots | Memory Slots: 2 x DDR5 DIMM slots Expansion Slot: 1 x PCIe 5.0 x16 slot |
| Maximum Memory | Up to 96GB |
| Supported Memory | Type: DDR5 Speeds: 4800, 5200, 5600, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 8000 MHz (overclocked) Channels: Dual-channel support |
| Graphics | |
| Graphics | Integrated Graphics: Available through supported Ryzen processors with integrated graphics Outputs: 1 x HDMI 1.4 (up to 4096 x 2160 @ 30Hz) DisplayPort: 1 x DisplayPort (up to 4096 x 2160 @ 60Hz) |
| Basic Information | |
| Audio | Realtek ALC897, Supports 7.1-channel high-definition audio, High-quality capacitors for enhanced audio clarity |
| BIOS | UEFI BIOS |
| Chipset | AMD B650 |
| Form Factor | Mini-ITX (170 x 170 mm) |
| Supported CPU | AMD Ryzen 7000, 8000, and 9000 series CPUs |
| Ports & Connector | |
| Audio | Rear I/O Audio Ports: 1 x Line-Out (Green) 1 x Line-In (Blue) 1 x Mic-In (Pink) Internal Audio Header: 1 x 10-1 pin header for front panel audio |
| HDMI | Version: HDMI 1.4 Resolution Support: Up to 4096 x 2160 @ 30Hz |
| Internal I/O Ports | USB Headers: 1 x USB 3.2 Gen 1 header (supports 2 ports) 1 x USB 2.0 header (supports 2 ports) 1 x USB Type-C 10Gbps header Audio Header: 1 x 10-1 pin header for front panel audio Fan Headers: 1 x 4-pin CPU fan header 2 x 4-pin chassis fan headers RGB Headers: 2 x 3-pin ARGB headers 1 x 4-pin RGB header Other Headers: 1 x TPM header 1 x Clear CMOS jumper |
| LAN Port (s) | Ethernet: 1 x 2.5G Realtek 8125BG/D LAN port Wi-Fi: Onboard Realtek 8852BE Wi-Fi 6 Bluetooth: Bluetooth 5.2 |
| RAID | RAID 0 (Striping) RAID 1 (Mirroring) RAID 10 (Stripe + Mirror) |
| Supported Storage | M.2 Slots: 2 x M.2 slots (supports PCIe 4.0 x4/x2 2242/2280 SSDs) SATA Ports: 2 x SATA 3.0 ports |
| TPM (Trusted Platform Module) | 1 x 14-1 pin header for TPM module |
| USB (s) | Rear I/O: 2 x USB 3.2 Gen 1 Type-A ports 4 x USB 2.0 Type-A ports 1 x USB 3.2 Gen 2 Type-C port Internal Headers: 1 x USB 3.2 Gen 1 header (supports 2 ports) 1 x USB 2.0 header (supports 2 ports) 1 x USB Type-C 10Gbps header |
| Wireless Communication module | Wi-Fi Module: Onboard Realtek 8852BE Wi-Fi 6 (802.11ax) module Bluetooth Module: Onboard Bluetooth 5.2 LAN Port: 1 x 2.5G Realtek 8125BG/D Ethernet LAN port |
| Others | |
| Bundled Software | Maxsun provides a suite of utilities for system monitoring, BIOS updates, and overclocking. Software can be downloaded from the official Maxsun website or included on a support CD/DVD. |
| Warranty Information | |
| Manufacturing Warranty | 03 years |
Description
The Maxsun MS-eSport B650ITX WIFI ICE AM5 Motherboard is a compact yet feature-rich Mini-ITX motherboard designed for high-performance builds. It supports AMD’s AM5 socket, making it compatible with Ryzen 7000, 8000, and 9000 series processors with a TDP of 105–180W. The motherboard boasts dual DDR5 slots supporting up to 96GB of memory, with overclocking capabilities up to 8000MHz. For expansion, it offers a PCIe 5.0 x16 slot and dual PCIe 4.0 M.2 slots. Connectivity options include WiFi 6, Bluetooth 5.2, and 2.5G LAN. It also features USB 3.2, USB 2.0, and 10G Type-C ports, along with HDMI 1.4 and DisplayPort outputs supporting up to 4K resolutions. The motherboard is designed with robust cooling solutions and RGB lighting to enhance performance and aesthetics.
