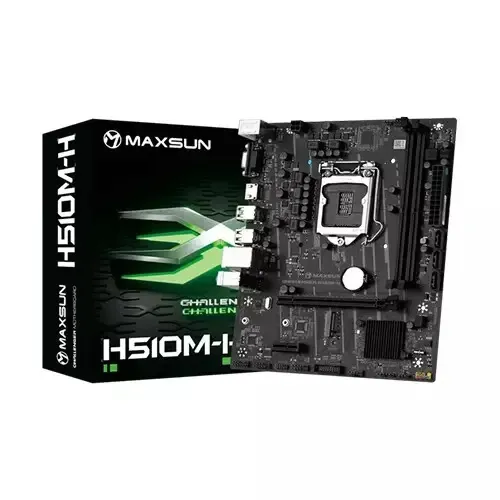

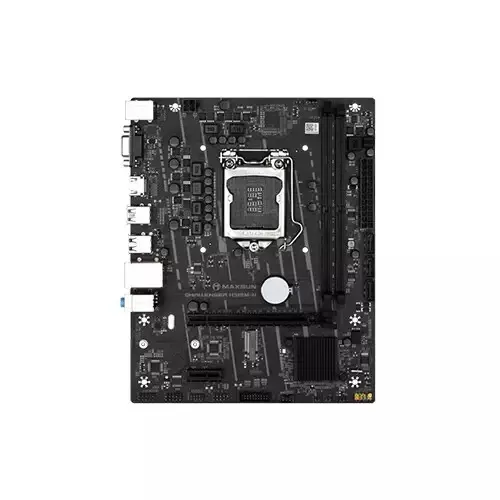

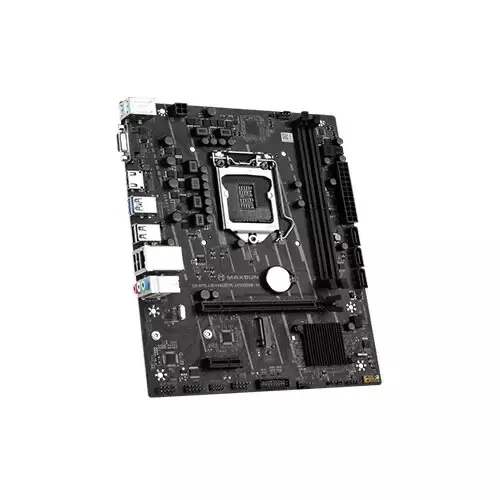

Maxsun Challenger H510M-H V3 DDR4 H470 LGA1200 Motherboard
Key Features
- Supported CPU: Supports 10th/11th Gen Intel Core Processors
- Form Factor: M-ATX (225mm x 180mm)
- Memory Max.: 64GB
- Ram Type: DDR4
Specification
| Memory | |
| Slots | EXPANSION SLOT; 1x PCIe 3.0 x16 slot; 1x PCIe 3.0 x1 slot |
| Maximum Memory | 64GB |
| Supported Memory | 2x DDR4,; Memory Support DDR4 3200(OC)/ 2933(OC)/ 2666(OC)/ 2400(OC) MHz; Supports Intel XMP 2.0 OC; Supports Dual-Controller Dual-Channel mode |
| Graphics | |
| Graphics | 1x VGA; *Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz; 1x HDMI port; *HDMI port supports up to 4K@30Hz; *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. |
| Key Features | |
| Lighting Effect | 4x Side-by-Side Debug LED |
| Form Factor | M-ATX; 225mm x 180mm |
| Software | |
| Operating System | Support for Windows 11 64-bit, Windows 10 64-bit |
| Basic Information | |
| Audio | Realtek ALC897 Codec; 5.1-Channel High Definition Audio |
| Chipset | INTEL H470 |
| Supported CPU | Supports 10th/11th Gen Intel Core Processors, Pentium Gold and Celeron Processors; LGA 1200 |
| Ports & Connector | |
| Internal I/O Ports | 1x 24-pin Power Connector(ATX_PWR); 1x 4-pin Power Connector(CPU_PWR); 1x CPU Fan; 1x System Fan; 1x PS/2 interface; 1x M.2 slots (Key-M); 3x SATA 6Gb/s ports; 1x CLR_CMOS; 1x 4-Pin SPEAKER; 1x Front Audio; 1x COM_A Port; 1x 9-Pin DEBUG_CON; 1x 2-Pin ME_PROTECT |
| LAN Port (s) | Realtek RTL8111H 1G LAN |
| RAID | Supports RAID 0, RAID 1,RAID 5 and RAID 10 for SATA storage devices |
| Supported Storage | M.2 slot (Key M), type 2242/2280 (supports PCIe 3.0 x4 mode); 3x SATA 6Gb/s ports |

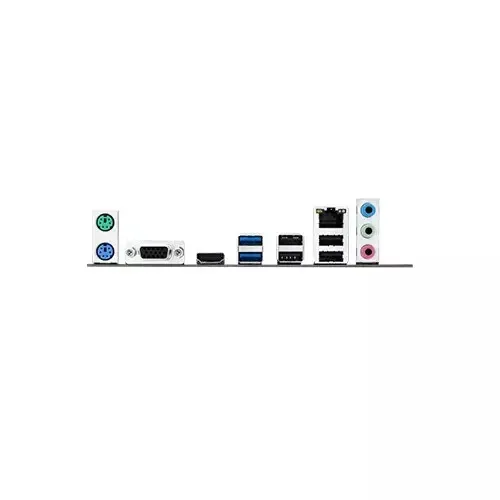

| USB (s) | *Front USB (Total 4 ports); 2x USB 3.2 Gen1 Type A; 2x USB 2.0; *Rear USB (Total 6 ports); 2x USB 3.2 Gen1 Type A; 4x USB 2.0 |
| Warranty Information | |
| Warranty | 3 Years |
Description
The Maxsun Challenger H510M-H V3 DDR4 LGA1200 Motherboard is a practical and budget-friendly foundation for building a reliable desktop computer for everyday productivity, office applications, home entertainment, and general computing needs. Designed around the Intel H510 chipset and LGA1200 socket, this motherboard supports compatible Intel desktop processors, making it suitable for users assembling an entry-level or mainstream PC. Its DDR4 memory support provides a dependable platform for multitasking, daily workloads, and commonly used applications. The Micro ATX form factor helps conserve space while fitting into compatible PC cases, making it a convenient choice for compact desktop builds. Whether you're building a new computer for study, business, browsing, or upgrading an existing system, the Maxsun Challenger H510M-H V3 offers a straightforward platform for creating a functional desktop setup. Its combination of Intel platform compatibility, DDR4 memory support, and compact design makes it suitable for cost-conscious builders who value practicality and everyday reliability. Before purchasing, check your processor's compatibility, supported memory specifications, available storage and expansion connections, and PC case dimensions to ensure the motherboard meets your system requirements.
Reviews (0)
Get specific details about this product from customers who own it.
Frequently Asked Questions (FAQs)
Common questions and answers regarding Maxsun Challenger H510M-H V3 DDR4 H470 LGA1200 Motherboard
What is the price of Maxsun Challenger H510M-H V3 DDR4 H470 LGA1200 Motherboard in Bangladesh? expand_more
The latest price of Maxsun Challenger H510M-H V3 DDR4 H470 LGA1200 Motherboard in Bangladesh is 8,450৳. You can purchase it at the best price from our website or visit any of our Skyland Computer outlets.
Is Maxsun Challenger H510M-H V3 DDR4 H470 LGA1200 Motherboard currently in stock at Skyland? expand_more
Yes, Maxsun Challenger H510M-H V3 DDR4 H470 LGA1200 Motherboard is currently In Stock at Skyland. You can order online for fast home delivery across Bangladesh or in-store pickup.
What warranty comes with Maxsun Challenger H510M-H V3 DDR4 H470 LGA1200 Motherboard? expand_more
Maxsun Challenger H510M-H V3 DDR4 H470 LGA1200 Motherboard comes with 3 Years warranty. Skyland Computer ensures 100% genuine products with official service and warranty support.
