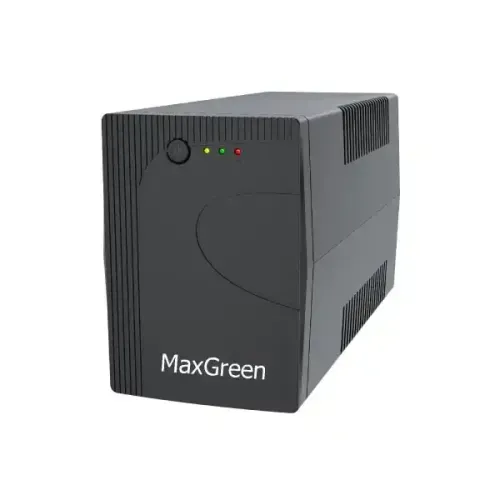

MaxGreen MG-LI-EAP-2000VA 2000VA UPS
Key Features
- Model: MG-LI-EAP-2000VA
- Capacity 2050VA/1230W
- Input Voltage 220Vac
- Battery 12V/9Ah*2
Specification
| General | |
| Brand | MaxGreen |
| Model | MG-LI-EAP-2000VA |
| Key Features | |
| Alarm | Battery mode Sounding every 10 seconds Low battery Sounding every second Overload Sounding every 0.5 seconds Battery Replacement Alarm Sounding every 2 seconds Fault Continuously sounding |
| Frequency (Battery Mode) | 50Hz ± 1Hz (Bat Mode) |
| Indications | Line Mode - Green lighting, Battery Mode - Yellow Lighting,Fault - Red Lighting. |
| Input | |
| Frequency | 50 Hz |
| Voltage | 220Vac |
| Voltage Range | 162-268 VAC |
| Mechanical Design | |
| Load Capacity | 1230W |
| Output | |
| Backup Time | 15-30 Minutes |
| Power Factor | 0.6 |
| Transfer Time | Typical 2-6ms |
| Type of Wave | Simulated Sine Wave (Bat Mode) |
| Voltage | 220Vac |
| Voltage Range | 162-268 VAC |
| Warranty Information | |
| Warranty | 01 Year |
Description
MaxGreen MG-LI-EAP-2000VA Capacity 2000VA/1230W. Input Voltage 220Vac & Voltage Range 162-268 VAC. Frequency Range 50 Hz. Output Voltage 220Vac. AC Voltage Regulation ±10% (Bat Mode). Frequency Range 50Hz ± 1Hz (Bat Mode). Transfer time Typical 2-6ms. Waveform Simulated Sine Wave (Bat Mode). Battery Internal maintenance-free lead-acid.Battery Type & Number 12V/9Ah*2. Net Weight 11.5(kg). Dimension,D*W*H(mm) 370*135*165.Typical Recharge Time 4-6 hours recover to 90% capacity. Full protection Short circuit, Overload, Battery discharge and overcharge, Surge protection. Humidity 0-90% Relative Humidity 0-40 ℃ (Non-condensing). Noise Level Less than 40dB. Optional USB/RS232 Port Supports Windows 2000/2003/XP/Vista/2008,Windows 7/8 Linux Unix and MAC.
