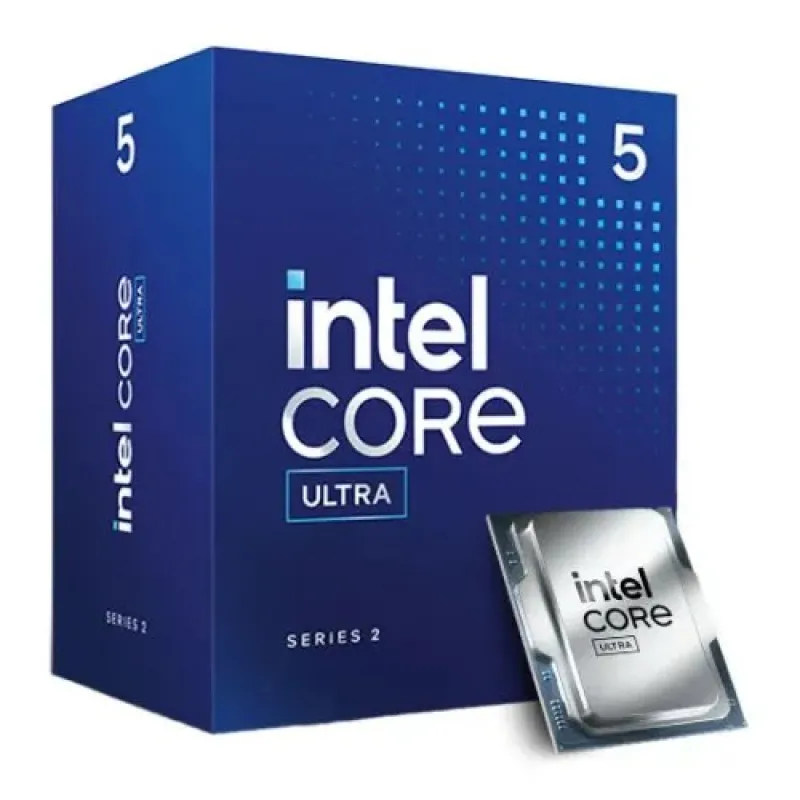

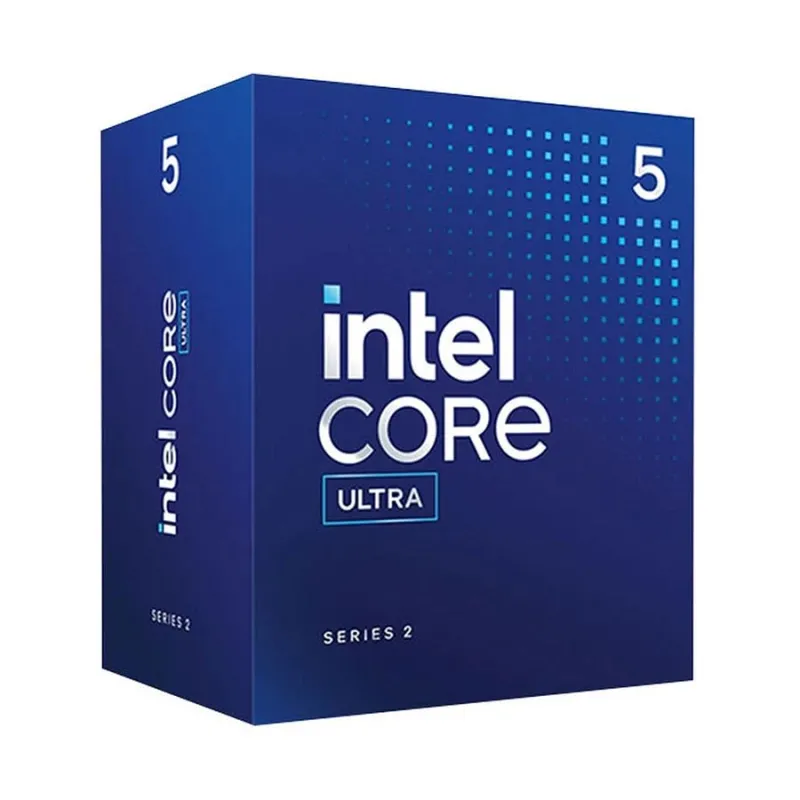

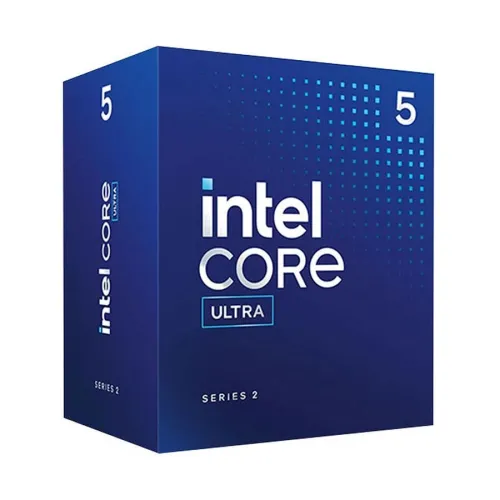

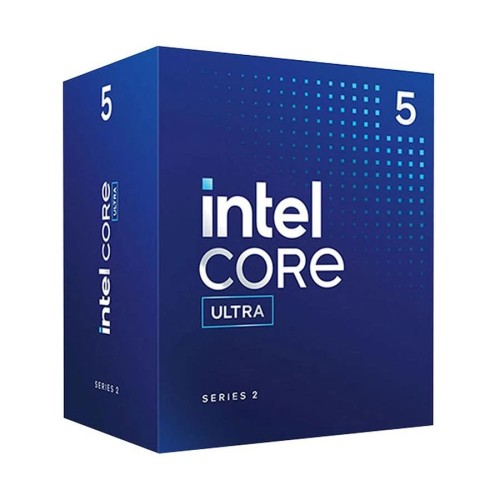

Intel Core Ultra 5 225 Arrow Lake Processor

Intel Core Ultra 5 225 Arrow Lake Processor

The Intel Core Ultra 5 225 Arrow Lake processor is built on sophisticated TSMC N3B lithography. It has a hybrid architecture with 10 total cores—6 speed cores and 4 efficiency cores—supporting 10 threads for smooth multitasking. The performance cores can reach a maximum turbo frequency of 4.9 GHz with a base frequency of 3.3 GHz, while the efficient cores can run at 4.4 GHz with a base frequency of 2.7 GHz, achieving a balance of high performance and energy efficiency. The Intel Core Ultra 5 225 Arrow Lake processor boasts 20 MB of Intel Smart Cache and 22 MB of total L2 cache, ensuring quick data access and smooth performance. It has a basic power of 65 W but may increase to 121 W under turbo load, allowing for dynamic performance modifications. Memory compatibility supports up to 256 GB of DDR5 6400 MT/s across two channels, allowing for quick and responsive system performance. Integrated Intel Graphics includes two Xe-cores with a base frequency of 300 MHz and a maximum dynamic frequency of 1.8 GHz, enabling up to 4 TOPS (Int8) performance and supporting up to four displays with resolutions of up to 8K at 60Hz via DP2.1 or HDMI 2.1. The Intel Core Ultra 5 225 CPU incorporates Intel AI Boost NPU, which provides 13 TOPS (Int8) peak performance, sparsity support, and compatibility with Windows Studio Effects. It supports AI frameworks such as OpenVINO, WindowsML, DirectML, ONNX RT, and WebNN on the CPU, GPU, and NPU. DMI 4 supports 8 lanes, PCIe 5.0 and 4.0 support up to 24 lanes, and Intel Thunderbolt 4. Advanced technologies, including Intel Gaussian & Neural Accelerator 3.5, Thread Director, Speed Shift, Turbo Boost 2.0, and VMD improve performance and manageability. The Intel Core Ultra 5 225 Arrow Lake processor's security features include Intel Trusted Execution Technology, AES-NI, Boot Guard, VT-x, VT-d, OS Guard, and Control-Flow Enforcement, which provide strong system protection and virtualization support.
