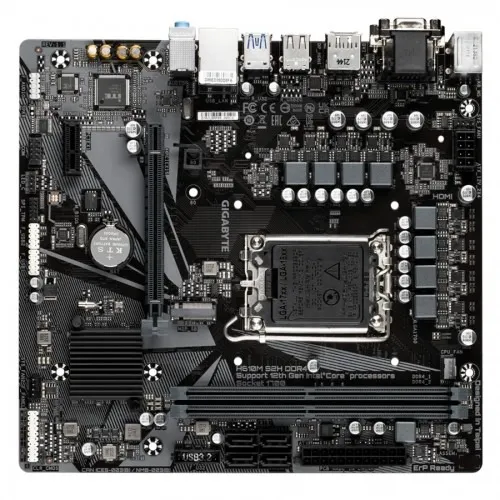

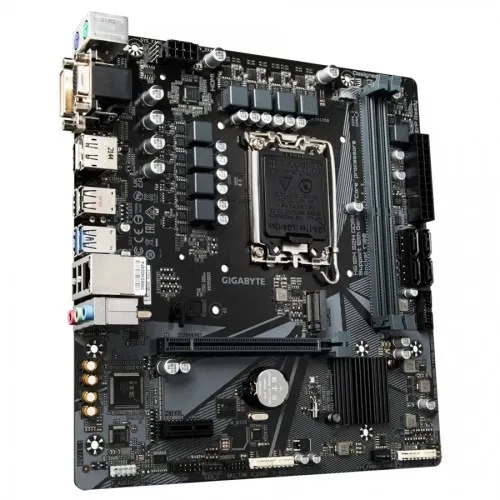

GIGABYTE H610M S2H DDR4 Micro ATX Motherboard

Name: GIGABYTE H610M S2H DDR4 Micro ATX Motherboard
Brand: Gigabyte
SKU: H610M S2H DDR4
Price: 10500.00 BDT
Availability: InStock

Price: 10,500৳

Regular Price: 11,880৳

Status: In Stock

Brand: Gigabyte

Key Features

Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
GIGABYTE Gaming LAN with Bandwidth Management
NVMe PCIe 3.0 x4 M.2

View More Info

Payment Options

10,500৳ 11,880৳

Cash Discount Price

Online / Cash Payment

Special Price: 10,500৳

View Banks EMI Plans

Specification

General
Brand	GIGABYTE
Model	H610M S2H DDR4
Memory
Type	DDR4
Slots	2 x DDR DIMM sockets
Maximum Memory	supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Supported Memory	Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Graphics
Graphics	Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.)
Basic Information
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Expansion Slots
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset	Intel H610 Express Chipset
Form Factor	Micro ATX Form Factor; 23.0cm x 21.5cm
Supported CPU	Support for 12th/ 13th/ 14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package L3 cache varies with CPU
Connectivity
HDMI	1 x HDMI port
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCI Express x16 slot conforms to PCI Express 4.0 standard.) 1 x PCI Express x1 slot (The PCI Express x1 slot conforms to PCI Express 3.0 standard.)
Ports & Connector
Audio	3 x audio jacks
D-Sub (s)	1 x D-Sub port
Display Port (s)	1 x DisplayPort
DVI-D (s)	1 x DVI-D port
Internal I/O Ports	Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 1 x DVI-D port 1 x DisplayPort 1 x HDMI 2.0 port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
LAN Port (s)	Intel GbE LAN chip (1 Gbps/100 Mbps)
Supported Storage	1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors
TPM (Trusted Platform Module)	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
USB (s)	Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers
Others
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Other Features
Special Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS Ambient LED EasyTune Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install
Warranty Information
Manufacturing Warranty	3 years

Description

Build a reliable, entry-level workstation or gaming PC with the GIGABYTE H610M S2H DDR4 Micro ATX Motherboard, available at Skyland Computer BD. Designed to host Intel’s modern processor lineups, this board provides essential stability, clean power delivery, and extensive display versatility for home and office systems.

Built around the Intel H610 chipset and featuring the LGA 1700 socket, it offers broad support for 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors. System memory is handled by two dual-channel DDR4 DIMM slots supporting up to 64GB of RAM at speeds up to 3200MHz. Power delivery remains stable under heavy workloads thanks to a 6+1+1 Hybrid Digital VRM design equipped with low RDS(on) MOSFETs, solid capacitors, and a solid-pin 8-pin CPU power connector.

Storage and expansion capabilities are well-catered to, featuring a high-speed NVMe PCIe 3.0 x4 M.2 slot alongside four SATA 6Gb/s ports for traditional drives. The primary expansion area includes a PCIe 4.0 x16 slot for modern dedicated graphics cards and a PCIe 3.0 x1 slot for secondary add-in cards. For multi-display productivity without a GPU, the rear panel includes four video outputs: HDMI, DisplayPort, DVI-D, and D-Sub (VGA).

Network traffic is managed by a high-speed Realtek 8118 Gaming GbE LAN chip featuring automatic bandwidth allocation to minimize latency during online sessions. Thermal management is guided by Smart Fan 6, offering multiple internal temperature sensors, hybrid fan headers with FAN STOP support, and customizable fan curves via BIOS.

Get the best GIGABYTE H610M S2H DDR4 price in Bangladesh by ordering directly from Skyland Computer BD—your trusted source for authentic computer components and 3 years of official warranty protection.
